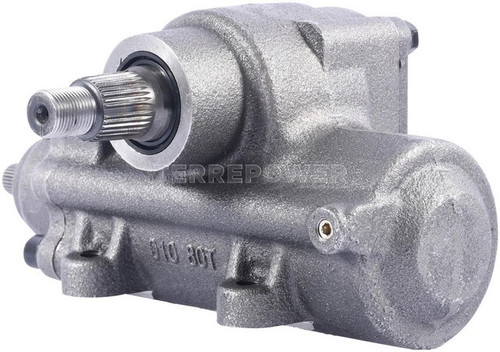

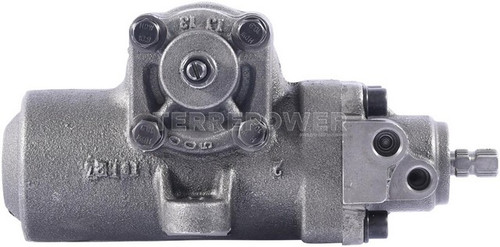

TERREPOWER N503-0128 steering gear for the 1997-1999 Chevrolet Tahoe and other vehicles turns steering wheel input into the movement that turns the road wheels. It is a new power steering gear, designed for dependable service over the life of the vehicle.
- 3.063 turns lock to lock
- 26-spline input shaft and 32-spline output shaft
- Pressure port thread M18X1.50 and return port thread M16X1.50
- Three mounting holes
Quick facts
- Part: TERREPOWER N503-0128 steering gear
- Fits: 1997-1999 Chevrolet Tahoe and other vehicles
- Condition: New
A worn steering gear can show up as heavy or loose steering, play at the wheel or fluid seepage around the housing. Before you replace the steering gear, rule out a slipping pump belt, a leaking hose and worn linkage, since each can change how the steering feels. The steering system uses a single gear, and this listing is one gear.
Fits
This power steering gear also fits the 1997 GMC Yukon and the 1994-1996 Dodge Ram 1500, along with many other Chevrolet, GMC and Dodge models. If your vehicle is not named here, find its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Input shaft diameter: 18.29 mm (0.72 in)
- Output shaft diameter: 31.75 mm (1.25 in)
Build and materials
- Type: Power
- Condition: New
- Country of origin: China
In the box
One power steering gear and an installation kit.
Interchange: 19321376 · 26068771
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the TERREPOWER N503-0128 steering gear fit the 1997 GMC Yukon?
Yes. TERREPOWER N503-0128 fits the 1997 GMC Yukon and the 1994-1996 Dodge Ram 1500; for other vehicles, look up your year and model in the "Vehicles it fits" section.
Does this TERREPOWER power steering gear come with an installation kit?
Yes. This listing includes one power steering gear and an installation kit.
What thread sizes are the ports on the N503-0128 steering gear?
On TERREPOWER N503-0128, the pressure port thread is M18X1.50 and the return port thread is M16X1.50.
How many splines and what diameter are the shafts on this steering gear?
The input shaft has 26 splines and an 18.29 mm (0.72 in) diameter. The output shaft has 32 splines and a 31.75 mm (1.25 in) diameter.
Is 19321376 an interchange number for the TERREPOWER N503-0128 steering gear?
Yes. 19321376 is one of the numbers that TERREPOWER N503-0128 replaces, so it can help when you are matching the part you have against this listing.
