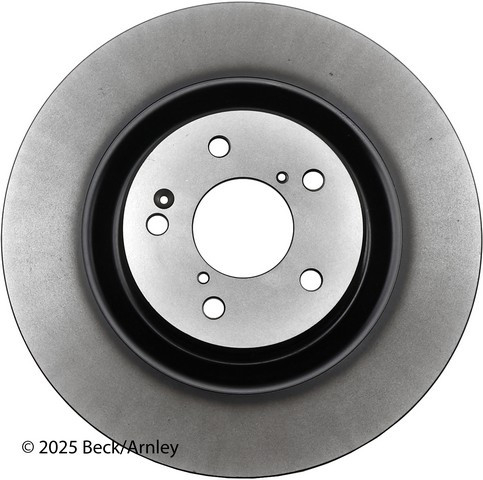

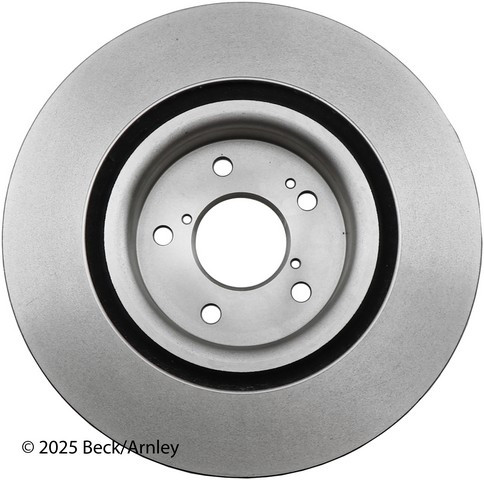

Beck/Arnley 083-3803 front brake rotor for the 2023-2026 Honda Pilot, 2026 Honda Passport and 2022-2026 Acura MDX is the disc that spins with each front wheel and gives the pads a smooth surface to clamp when you brake.
- Application-specific direct replacement for OE applications, made with close attention to form, fit and function.
- Part of the Beck/Arnley Installers Advantage line, designed to save time, simplify the job or enhance durability and longevity.
- Directional finish optimizes break-in and pad seating.
- High carbon content maximizes thermal conductivity.
- High temp, rust-resistant coating on exposed surfaces improves appearance.
- Vented construction with internal cooling vanes that help carry braking heat away.
A pulsing brake pedal, a shake in the steering wheel as you slow down, or deep scoring on the braking surface can mean the rotor is worn. Sticking calipers, worn-out pads, a loose wheel bearing or worn suspension bushings can bring on similar symptoms, so track down the source before buying.
It is a direct-fit replacement for the 2023-2026 Honda Pilot and the 2026 Honda Passport, and it also fits as a brake rotor for the 2022-2026 Acura MDX. This listing is one rotor, and with one on each side of the front axle, the opposite front side is normally replaced at the same time.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2, one per side
- Outside diameter: 350 mm (13.78 in)
- Nominal thickness: 30 mm (1.18 in)
- Minimum (discard) thickness: 28 mm (1.10 in)
- Lug holes: 5
Build and materials
- Construction: vented
- Surface: smooth, not slotted
- Finish: directional
- Coating: high temp, rust-resistant coating on exposed surfaces
- Metallurgy: high carbon content
- Country of origin: China
In the box
One front brake rotor. Screws, studs, wheel bearings and thread sealer are not included. The old screws may not be reusable, so plan on new ones.
Interchange: 45251TYAA01 · 1407733755 · 12040110 · 45251T90A00 · JBR1933EVC
This part cross-references / interchanges with the following part numbers:
45251TYAA01, 1407733755, 12040110, 45251T90A00, JBR1933EVC
