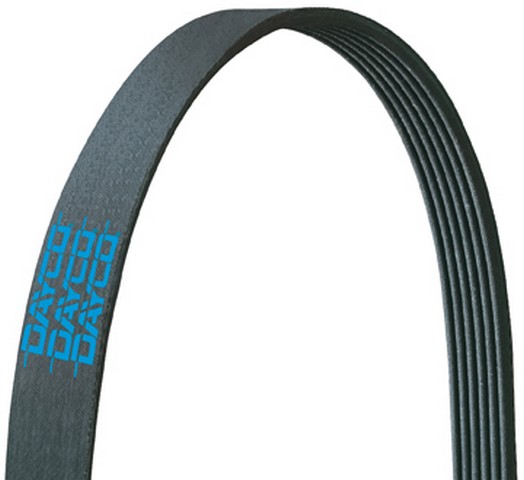

Dayco 5040535 serpentine belt for the 2014-2018 Ford F-150 V8 5.0L and other vehicles drives the engine's accessories from the crankshaft. This Dayco drive belt is listed for the main drive, air conditioning and tensioner positions.
- K-section belt with a straight rib profile and standard rib depth
- EPDM construction, aramid reinforced
- Operating range from -45 F to 212 F (-42.7 C to 100 C)
- Made to SAE J1459 and SAE J2432 standards
Quick facts
- Part: Dayco 5040535 serpentine belt
- Fits: 2014-2018 Ford F-150 V8 5.0L and other vehicles
- Position: Main drive, air conditioning and tensioner
- Material: EPDM, aramid reinforced
- Condition: New
A cracked, frayed or glazed belt, or a squeal at the front of the engine, can mean the belt is worn. Squealing alone does not prove the belt is at fault, since a worn tensioner or pulley can make that noise too. The accessory drive on these engines runs on one belt, and this listing is a single belt.
Fits
The belt is listed for a wide range of Ford models, including a serpentine belt for the 2013-2019 Ford Escape 4-cylinder 2.0L or 2.5L and for the 2013-2018 Ford Fusion 4-cylinder 2.0L and the 2013-2020 Fusion 4-cylinder 2.5L. If your vehicle isn't named here, look up your year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Main drive, air conditioning and tensioner
- Quantity per vehicle: 1
- Pieces in listing: 1
Build and materials
- Rib profile: Straight rib
- Cross section: K-section
- Rib depth: Standard
- Material: EPDM, aramid reinforced
- Standards: SAE J1459, SAE J2432
- Operating temperature: -45 F to 212 F (-42.7 C to 100 C)
- Condition: New
Interchange: 25-040533 · 25-040535 · 25-71354
4K535 · 4PK1355 · 4PK1360 · K040535 · 4040535 · 6688 · K040533 · 1654203 · 42850 · 40535 · JK4540 · JK4542 · JK4542A · 535K4
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
4K535, 4PK1355, 4PK1360, K040535, 4040535, 6688, K040533, 1654203, 42850, 40535, JK4540, JK4542, JK4542A, 25-040533, 25-040535, 25-71354, 535K4, BL3E-6C301-CA, BL3Z-8620-F, CV6E-6C301-AA, CV6Z-8620-A, CV6Z-8620-C, CV6Z-8620-D, CV6Z-8620-E, JX6Z 8620-D, JX6Z-8620-F, 660232, 6222613810, 885-3273-639, V1090183, V1090915
Frequently Asked Questions
Is Dayco 5040535 the right serpentine belt for a 2014-2018 Ford F-150 V8 5.0L?
Yes, Dayco 5040535 is listed for the 2014-2018 Ford F-150 V8 5.0L, and that engine takes one belt.
What temperature range can this belt handle?
Dayco 5040535 has an operating range of -45 F to 212 F (-42.7 C to 100 C).
Is Dayco 5040535 an EPDM belt?
Yes. This belt is EPDM with aramid reinforcement, in a K-section with a straight rib profile.
What wear signs should I look for on a K-section belt like this one?
With the engine off, look for cracks, fraying or glazing on the ribs, and note any squeal when driving. A shop can confirm what is behind it.
Does Dayco 5040535 replace belt number 4PK1355?
Yes, 4PK1355 is one of the numbers this belt replaces, along with 4PK1360 and K040535.
