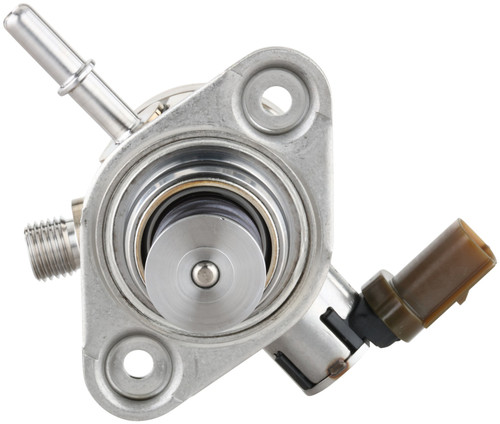

Bosch 66815 direct injection high pressure fuel pump for the 2020-2024 Ford Explorer 4-cylinder 2.3L and other vehicles raises fuel pressure for a gasoline direct injection system. Bosch makes it in-house; it is never sourced or reverse-engineered.
- Designed to operate under extreme temperatures and low fuel conditions
- End-of-line function test on every pump before it leaves the manufacturing facility
- Steel construction with an integrated pressure limiter valve
- Compact, light-weight body with an integrated pressure damper capable of variable feed pressure
- On-demand quantity control to help minimize fuel consumption
Quick facts
- Part: Bosch 66815 direct injection high pressure fuel pump
- Fits: 2020-2024 Ford Explorer 4-cylinder 2.3L and other vehicles
- Material: Steel
- Condition: New
Hard starting, rough running or a drop in power can mean the direct injection high pressure fuel pump is wearing out. A clogged fuel filter, a weak in-tank lift pump or a failing injector can be behind those symptoms too, so find the cause before you buy. If this pump is the cause, this one replaces it.
Fits
This direct injection high pressure fuel pump is an OE direct-fit replacement for the 2020-2022 Ford Escape 4-cylinder 2.0L, the 2019-2024 Ford Edge 4-cylinder 2.0L, the 2020-2024 Ford Explorer 4-cylinder 2.3L and many other Ford and Lincoln models. Open the Buyer's Guide tab to look up your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet fitting thread size: M16 x 1.5
- Outlet size: 14 mm
- Inlet size: 8 mm, quick connect fitting
- Outside diameter: 16 mm
- Inside diameter: 6 mm
- Housing width: 51 mm
Build and materials
- Material: Steel
- Pump type: Mechanical, piston
- Voltage: 12 V
- Seal: o-ring, synthetic or NBR rubber
- Condition: New
In the box
One direct injection high pressure fuel pump with an O-ring and a gasket or seal. A wire harness and a lock ring are not included. This listing holds one pump, and the vehicle takes one.
Installation notes
- Designed for plug-and-play installation.
