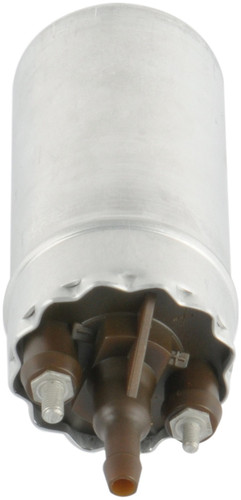

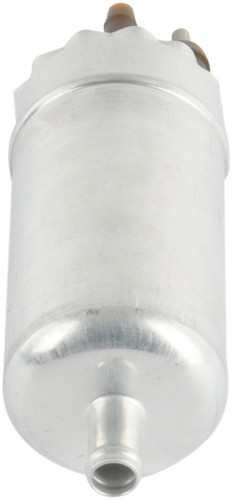

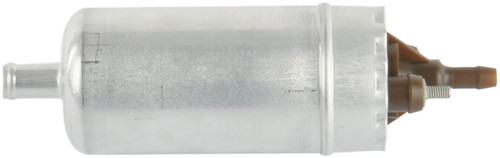

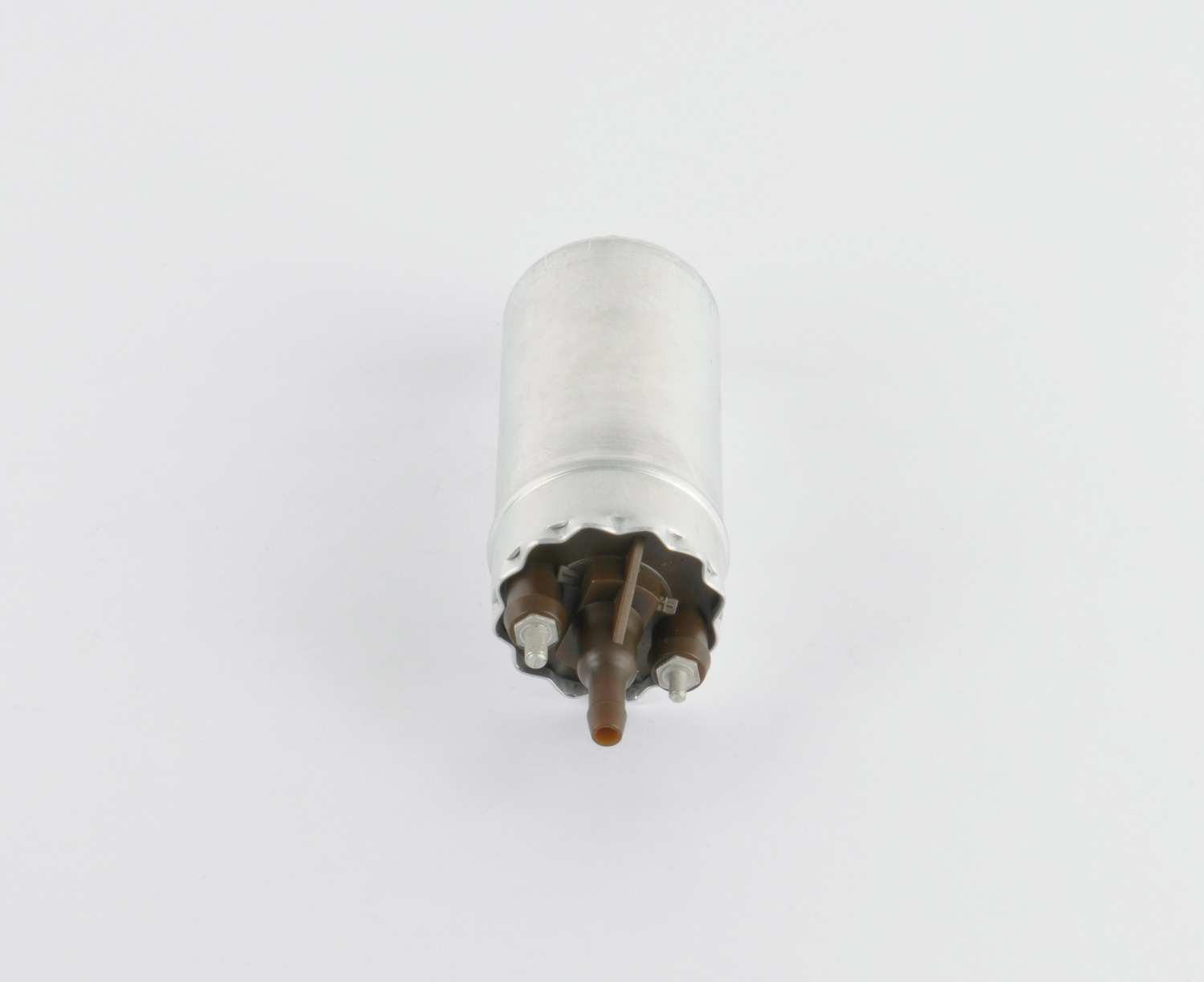

Bosch 69412 electric fuel pump for the 1987-1989 Alfa Romeo Milano V6 2.5L, the 1988-1989 Milano V6 3.0L and other vehicles moves fuel from outside the tank to a fuel-injection engine. This Bosch electric pump sits in the fuel line and primes itself.
- Patented Turbine Pump technology virtually eliminates fuel pulsation, noise and hot-start problems of older pump designs
- Carbon commutators made of a special graphite compound reduce armature wear and prevent effects from ethanol
- Designed to operate in extreme temperatures, at low fuel levels and in harsh underbody conditions
- Electromagnetic shielding prevents radio interference from the fuel pump
- Every pump is function tested at the end of the line
- Pumping elements see less mechanical wear; tested to a minimum of 150k miles
Quick facts
- Part: Bosch 69412 electric fuel pump
- Fits: the 1987-1989 Alfa Romeo Milano V6 2.5L, the 1988-1989 Milano V6 3.0L and other vehicles
- Position: In-line
- Material: Mixed
- Condition: New
Hard starting, hesitation, a whine from the fuel line or hot-start trouble can mean the pump is worn, though a clogged fuel filter or a failing fuel pump relay can also be behind them, so find the cause before you swap the pump. Each car takes a single in-line pump, and this listing is one pump.
Fits
The vehicles it fits also include the 1982-1989 Alfa Romeo Spider 4-cylinder 2.0L and the 1988-1989 Eagle Medallion 4-cylinder 2.2L. If your car is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: in-line, external to the tank
- Quantity per vehicle: 1
- Voltage: 12 V DC
- Inlet outside diameter: 12 mm
- Outlet outside diameter: 11.1 mm
- Terminals: 2, male blade
Build and materials
- Type: electric, pump only, self-priming
- Fuel: gasoline, fuel injection
- Housing material: metal
- Material: Mixed
- Condition: New
- Country of origin: Czech Republic
In the box
One electric fuel pump with mounting hardware. A gasket or seal, strainer, filter, lock ring, O-ring and wiring harness are not included.
Installation notes
- Designed for plug-and-play installation with two male blade terminals.
- Sold as a pump only, without a module or fuel sending unit.
Interchange: 11646010210 · 60521992 · J0855358
This part cross-references / interchanges with the following part numbers:
11646010210, 60521992, J0855358
Frequently Asked Questions
Does the Bosch 69412 electric fuel pump fit the 1988-1989 Eagle Medallion 4-cylinder 2.2L?
Yes. Bosch 69412 is listed for the 1988-1989 Eagle Medallion 4-cylinder 2.2L, and that car takes one pump.
Is the 69412 a Bosch universal electric fuel pump?
No. Bosch 69412 is a specific-fit pump listed for set years and engines. Look up your own car in the "Vehicles it fits" section.
Does the Bosch 69412 pump come with a filter or strainer?
No. The box holds the pump and its mounting hardware. A filter, strainer, gasket or seal, lock ring, O-ring and wiring harness are not included.
What voltage and connections does this in-line electric fuel pump have?
It runs on 12 volts DC, with a 12 mm inlet, an 11.1 mm outlet and two male blade terminals.
Does this Bosch pump have a carbon commutator for ethanol fuel?
Yes. Bosch 69412 uses carbon commutators made of a special graphite compound to reduce armature wear and prevent effects from ethanol.
