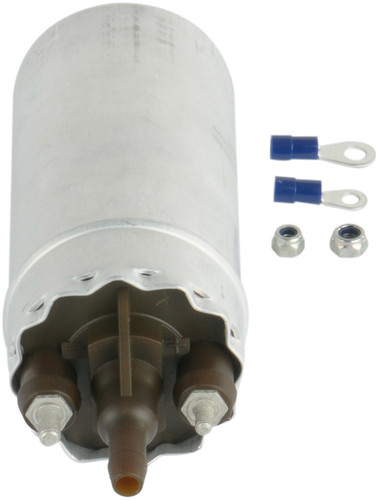

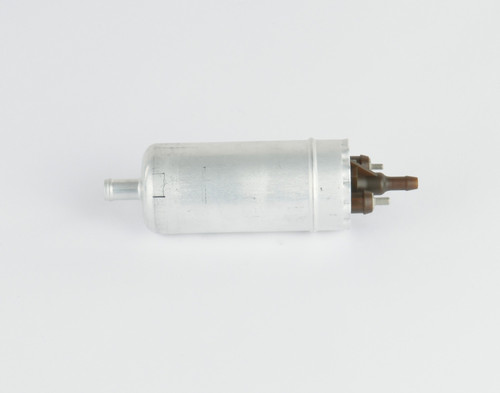

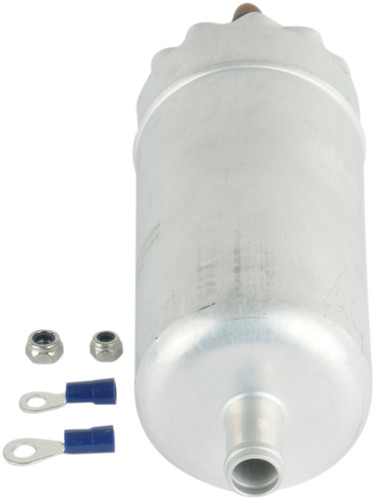

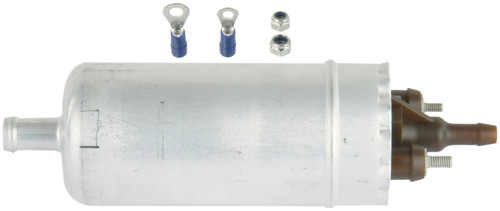

Bosch 69469 electric fuel pump for the 1980-1983 Volkswagen Vanagon H4 2.0L, the 1983-1985 Vanagon H4 1.9L, the 1986-1991 Vanagon H4 2.1L and other vehicles moves fuel from the tank toward the engine. Tight tolerances and a compact design let the pumping elements wear less, and the pump is tested to a minimum of 150k miles.
- Patented Turbine Pump technology virtually eliminates the fuel pulsation, noise and hot-start problems of older pump designs
- Carbon commutators made of a special graphite compound to reduce wear on the armature and resist effects from ethanol
- Designed to operate in extreme temperatures, at low fuel levels and in harsh underbody conditions
- Electromagnetic shielding that prevents on-board electronic interference (radio) from the fuel pump
- Every pump is function tested at the end of the line
Quick facts
- Part: Bosch 69469 electric fuel pump
- Fits: the 1980-1983 Volkswagen Vanagon H4 2.0L, the 1983-1985 Vanagon H4 1.9L, the 1986-1991 Vanagon H4 2.1L and other vehicles
- Position: In-line
- Material: Mixed
- Condition: New
A long crank before the engine starts, sputtering under load or a louder whine from the pump can mean the pump is weakening. A clogged fuel filter brings on similar symptoms, so these signs alone do not point to the pump.
Fits
The 1975-1980 Volkswagen Super Beetle H4 1.6L, the 1975 Volkswagen Transporter H4 1.8L and the 1976-1979 Transporter H4 2.0L fit this pump too, along with the Vanagon runs above and more vehicles. The 1980-1983 Volkswagen Vanagon H4 2.0L takes one pump. Open the "Vehicles it fits" section and look up your exact model and engine.
Specifications
Fit and size
- Position: in-line
- Quantity per vehicle: 1
- Mounting: external, not in the tank
- Inlet count: 1
Build and materials
- Type: electric, pump only
- Self-priming: yes
- Housing material: metal
- Material: mixed
- Condition: new
In the box
One electric fuel pump. A filter, gasket or seal, O-ring, lock ring, wire harness and suction pipe are not included.
Installation notes
- Designed for simple plug-and-play installation.
Interchange: 251906091
Frequently Asked Questions
Will the Bosch 69469 fuel pump fit the 1976-1979 Volkswagen Transporter H4 2.0L?
Yes. Bosch 69469 is listed for the 1976-1979 Volkswagen Transporter H4 2.0L, one pump per vehicle. Open the "Vehicles it fits" section to check other models and engines.
Is this Bosch electric pump sold as a pump only or a full module?
Bosch 69469 is a pump only, one electric fuel pump per listing. The filter, gasket or seal, O-ring, lock ring, wire harness and suction pipe are not included.
Is the Bosch 69469 a Bosch universal electric fuel pump?
No. Bosch 69469 is not a universal pump. It is an in-line, external pump with one inlet, listed for specific vehicles.
What is the commutator in this in-line fuel pump made of?
The carbon commutators use a special graphite compound to reduce wear on the armature and resist effects from ethanol. The housing material is metal.
Is the Bosch 69469 plug-and-play?
Yes. Bosch 69469 is designed for simple plug-and-play installation. The wire harness is not included with the pump.
