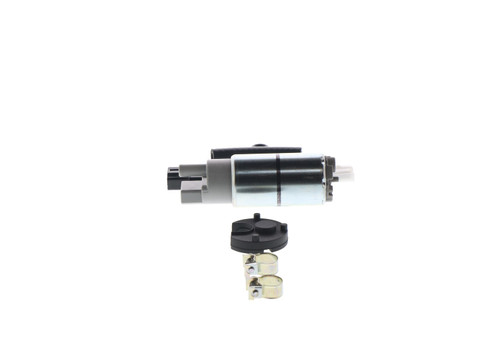

Bosch 69487 electric fuel pump for the 1999-2003 Toyota RAV4 4-cylinder 2.0L, the 2004-2005 RAV4 4-cylinder 2.4L and other vehicles delivers fuel from inside the tank to the fuel injection system. It is a pump only, not a module, and it mounts in the tank.
- Patented Turbine Pump technology virtually eliminates fuel pulsation, noise and hot-start problems of older pump designs
- Designed to operate in extreme temperatures and under low fuel conditions
- Electromagnetic shielding prevents on-board electronic interference from the pump
- Carbon commutators of a special graphite compound reduce armature wear and resist the effects of ethanol
- End-of-line function test on every pump
- Pumping elements see less mechanical wear, with testing to a minimum of 150k miles
Quick facts
- Part: Bosch 69487 electric fuel pump
- Fits: the 1999-2003 Toyota RAV4 4-cylinder 2.0L, the 2004-2005 RAV4 4-cylinder 2.4L and other vehicles
- Position: In-tank
- Material: Metal housing
- Condition: New
Hard starting, sputtering under load or a whine from the fuel tank can mean the pump is worn, though a fuel pump relay or the fuel pressure regulator can be behind the same symptoms, so find the cause before buying.
Fits
The vehicles it fits include the 1995-2004 Toyota Tacoma 4-cylinder 2.4L, 2.7L or V6 3.4L and the 1993-1997 Toyota Corolla 4-cylinder 1.6L, and every one of them takes a single pump. If your car is not named here, look up its year and engine on the Buyer's Guide tab.
Specifications
Fit and size
- Position: In-tank
- Quantity per vehicle: 1
- Pump only (not a module)
- Inlet outside diameter: 11.1 mm
- Outlet outside diameter: 11.1 mm
- Voltage: 12 V DC
- Terminals: 2, male blade
- Connector: 1, square/rectangle
Build and materials
- Type: electric, self-priming
- Housing material: metal
- Fuel type: gas, fuel injection
- Condition: New
- Country of origin: Brazil
In the box
One electric fuel pump with an O-ring. Mounting hardware, a gasket or seal, a lock ring, a strainer and a fuel sending unit are not included, so plan on new mounting hardware rather than reusing the old.
Installation notes
- Designed for simple plug-and-play installation.
Interchange: 25176174 · 2322003020 · 2322003030 · 2322115040 · 2322003040 · 232200C010 · 2322074020 · 2322103030 · 2322103040 · 232210D011 · 2322121030 · 2322128030 · 2322128280
This part cross-references / interchanges with the following part numbers:
25176174, 2322003020, 2322003030, 2322115040, 2322003040, 232200C010, 2322074020, 2322103030, 2322103040, 232210D011, 2322121030, 2322128030, 2322128280
