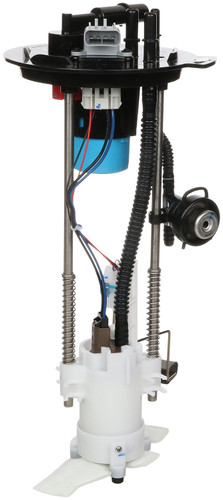

Bosch 66177 fuel pump module for the 2007-2008 Ford Ranger V6 3.0L, the 2007-2011 Ranger 4-cylinder 2.3L and the 2008-2011 Ranger V6 4.0L moves fuel from the tank to the engine's injection system. The module, also called a fuel pump assembly, holds an electric pump with a filter and a fuel sending unit inside the tank.
- Patented Turbine Pump technology virtually eliminates the fuel pulsation, noise and hot-start problems of older pump designs
- Demand-controlled delivery sends the injection system only the amount of fuel it requires
- Designed to operate in extreme temperatures and under low fuel conditions
- Function tested at the end of the production line
- Two layers of filtration protect the pump from debris and fuel system contamination
- Electromagnetic shielding prevents on-board electronic interference from the fuel pump
Quick facts
- Part: Bosch 66177 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2007-2008 Ford Ranger V6 3.0L, the 2007-2011 Ranger 4-cylinder 2.3L and the 2008-2011 Ranger V6 4.0L
- Condition: New
Hard starting, stalling or a whine from the fuel tank can mean the pump is wearing out. Low fuel pressure, a fuse or a relay can look the same, so with the ignition off, look the fuse and relay over for damage first and leave pressure testing to a shop. If the module is the cause, this replaces it. The tank holds a single module, so one is all you need.
Fits
This module is a direct-fit replacement for the 2007-2008 Ford Ranger V6 3.0L, the 2007-2011 Ranger 4-cylinder 2.3L and the 2008-2011 Ranger V6 4.0L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Pieces: 1 module assembly
- Mounting: internal, inside the fuel tank
- Terminal gender: male
- Connector gender: female
Build and materials
- Pump type: electric
- Fuel delivery type: fuel injection
- Filter: included
- Fuel sending unit: included
- O-ring: included
- Fuel pump strainer attachment: push on
- Condition: New
In the box
One fuel pump module with its filter, fuel sending unit and an O-ring. The lock ring, tank seal, gasket, suction pipe and wiring harness are not included, so plan on a new lock ring and seal rather than reusing the old ones.
Installation notes
- Designed for simple plug-and-play installation.
Interchange: 8L5Z9H307F
Frequently Asked Questions
Does the Bosch 66177 fuel pump module fit the 2008-2011 Ford Ranger V6 4.0L?
Yes. Bosch 66177 is a direct-fit replacement for the 2008-2011 Ford Ranger V6 4.0L.
Does the Bosch 66177 fuel pump module come with a lock ring?
No. This module does not include the lock ring, tank seal, gasket, suction pipe or wiring harness. It does come with a filter, a fuel sending unit and an O-ring.
Is the Bosch 66177 an electric pump that sits inside the tank?
Yes. Bosch 66177 is an electric pump module mounted internally in the fuel tank, with a filter and a fuel sending unit built in.
Can a whine from the tank mean a fuel pump module is wearing out?
Yes, it can, as can hard starting or stalling when the pump is the cause. A shop can measure fuel pressure to confirm.
Does the Bosch 66177 fuel pump module replace number 8L5Z9H307F?
Yes. The number 8L5Z9H307F is listed as an interchange for this module, so you can use it to cross-reference the part you are replacing.
