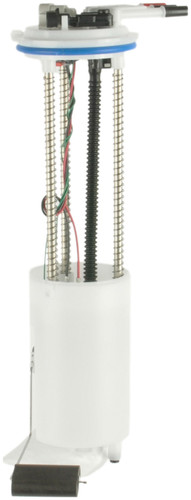

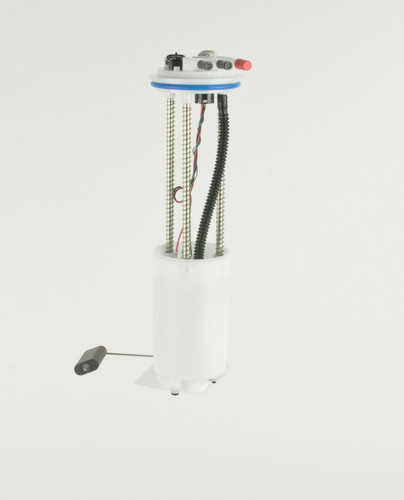

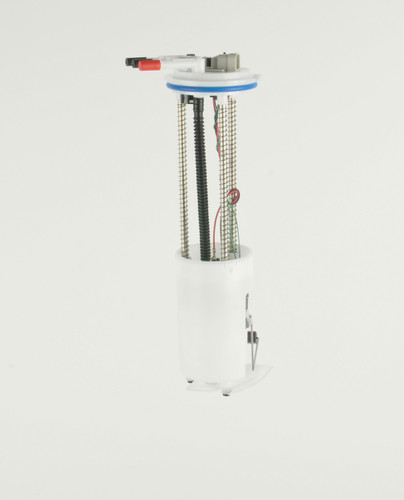

Bosch 67329 fuel pump module for the 1996 Chevrolet S10 V6 4.3L and other vehicles pumps fuel from the tank to the engine. This electric in-tank module, also called a fuel pump assembly, combines the pump with the fuel sending unit, regulator and strainer.
- Patented Turbine Pump technology virtually eliminates fuel pulsation, noise and hot-start problems associated with older pump designs
- Designed to operate in extreme temperatures and under low fuel conditions
- End-of-line function test on every pump
- Two layers of filtration protect the pump from debris and fuel system contamination
- Electromagnetic shielding prevents on-board electronic interference from the fuel pump
Quick facts
- Part: Bosch 67329 fuel pump module
- Also called: fuel pump assembly
- Fits: 1996 Chevrolet S10 V6 4.3L and other vehicles
- Condition: New
A worn pump can show up as hard starting, sputtering under load or a whine from the tank. Before you replace the module, rule out a blown fuse, a bad relay and damaged wiring, since a fault in any of them can look like a failing pump.
Fits
This module is a direct-fit replacement for the 1996 Chevrolet S10 V6 4.3L, the 1996 GMC Sonoma V6 4.3L and the 1996 Isuzu Hombre 4-cylinder 2.2L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting type: in-tank
- Inlet outside diameter: 11.1 mm
- Outlet outside diameter: 11.1 mm
- Outlet type: SAE
- Voltage: 12 V DC
- Connector: 1 square/rectangle connector with 4 male blade terminals
Build and materials
- Type: self-priming electric module for gas fuel injection
- Housing material: polymer / plastic
- Gasket or seal material: synthetic or NBR rubber
- Condition: New
- Country of origin: United States
In the box
The box holds one module assembly, and these vehicles take one. It comes with the gasket or seal, O-ring, strainer, filter, regulator and fuel sending unit. Mounting hardware, a lock ring, a wiring harness, a suction pipe and a fuel tank pressure sensor are not included, so plan on new hardware rather than reusing the old.
Installation notes
- Designed for simple plug-and-play installation.
Interchange: 19331275 · 8191799840
Frequently Asked Questions
Will Bosch 67329 work on a 1996 Isuzu Hombre 4-cylinder 2.2L?
Yes. Bosch 67329 fits the 1996 Isuzu Hombre 4-cylinder 2.2L, and the vehicle takes one module.
Does the Bosch fuel pump module come with a lock ring?
No. Bosch 67329 does not include a lock ring, mounting hardware, wiring harness or suction pipe. It does include the gasket or seal, O-ring, strainer, filter, regulator and fuel sending unit.
What voltage and connector does this fuel pump module use?
This fuel pump module is a 12-volt DC electric unit with one square/rectangle connector and 4 male blade terminals.
What does the Turbine Pump design in this Bosch module do?
The patented Turbine Pump design is meant to cut the fuel pulsation, noise and hot-start problems that older pump designs have, which supports better drivability.
Is the Bosch fuel pump module assembly really plug-and-play?
Yes, Bosch 67329 is designed for plug-and-play installation. Mounting hardware is not in the box, so have it ready.
