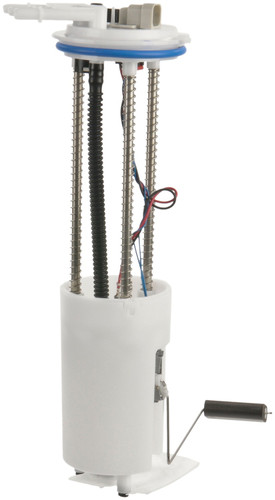

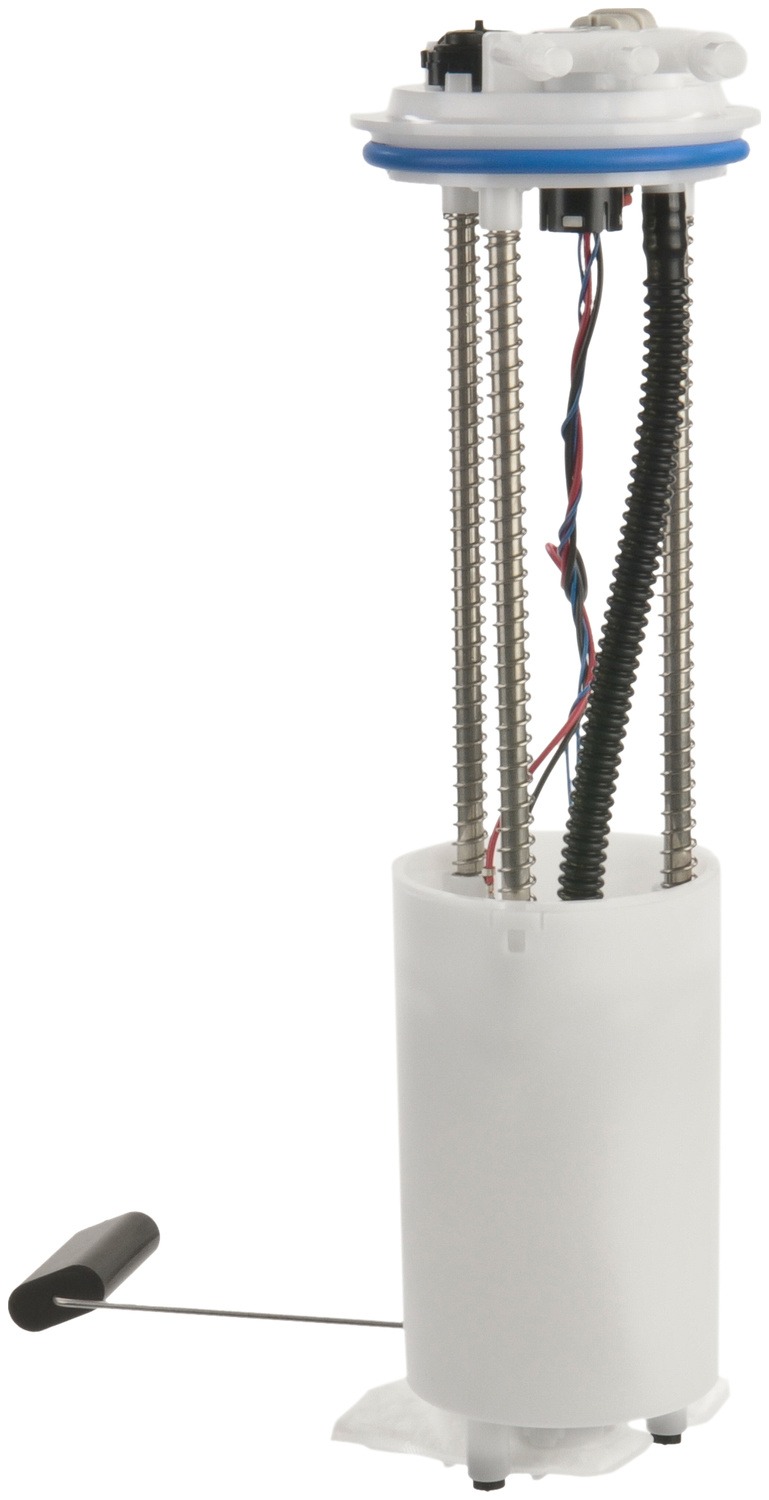

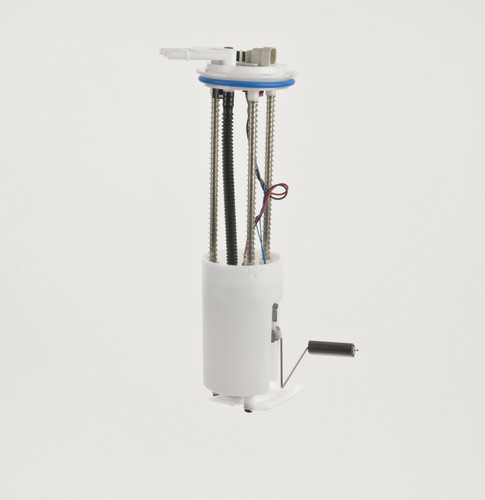

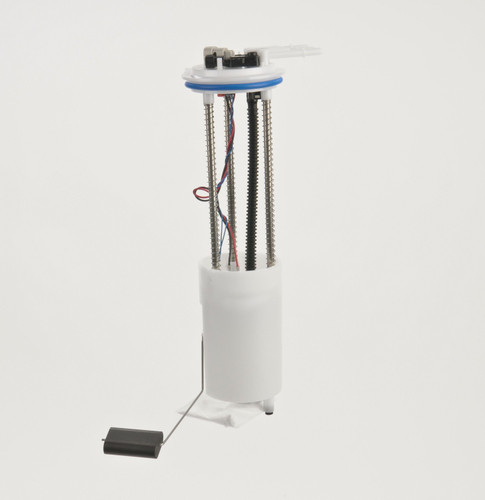

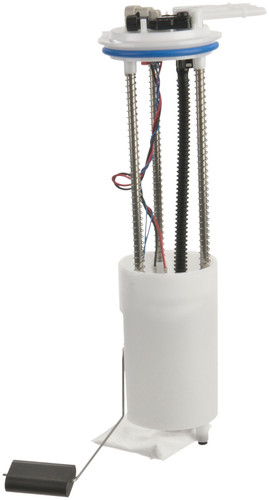

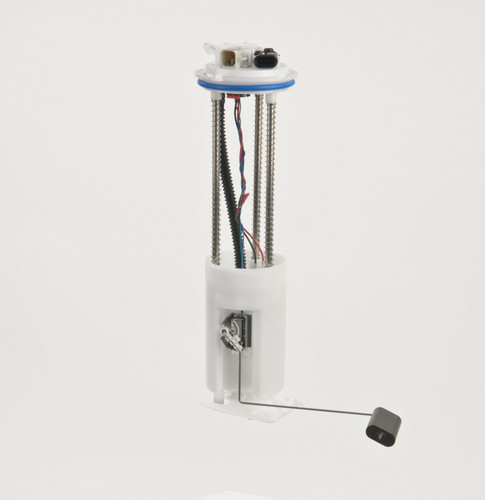

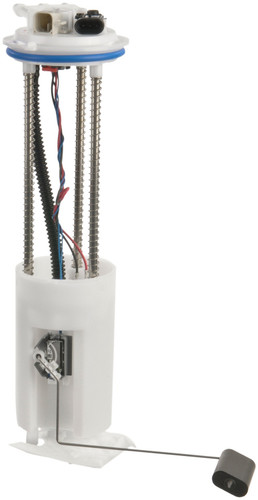

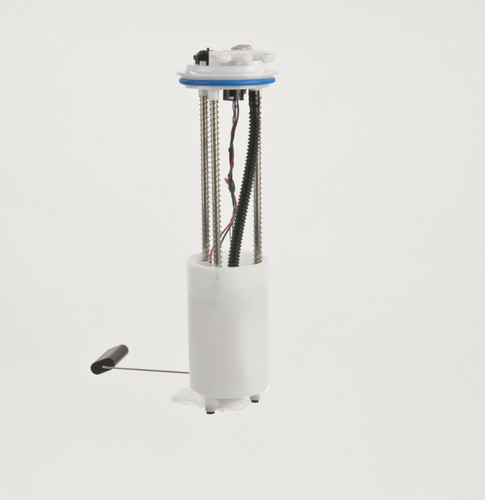

Bosch 67420 fuel pump module for the 1997-2002 Chevrolet S10 V6 4.3L and other vehicles pumps fuel from the tank to the fuel injection system. This new in-tank electric unit, also called a fuel pump assembly, is a full module and not a pump only.
- Patented Turbine Pump technology virtually eliminates fuel pulsation, noise and hot-start problems of older pump designs
- Two layers of filtration protect the pump from debris and fuel system contamination
- Designed to operate in extreme temperatures and under low fuel conditions
- Electromagnetic shielding prevents on-board electronic interference from the fuel pump
- Demand-controlled delivery gives the injection system only the amount of fuel it requires
- Every pump is function tested at the end of the production line
Quick facts
- Part: Bosch 67420 fuel pump module
- Also called: fuel pump assembly
- Fits: 1997-2002 Chevrolet S10 V6 4.3L and other vehicles
- Material: Mixed (polymer / plastic housing)
- Condition: New
Hard starting, sputtering or stalling, or a whine from the fuel tank can mean the pump is wearing out. Before replacing the module, look over the fuel pump fuse and its connector for damage or corrosion with the engine off; a shop can test fuel pressure safely.
Fits
This fuel pump module fits the 1997-2002 Chevrolet S10 V6 4.3L, the 1997-2002 GMC Sonoma V6 4.3L and the 1997-2000 Isuzu Hombre V6 4.3L. The 1997-2002 Chevrolet S10 V6 4.3L takes one module; the 1997-2002 GMC Sonoma V6 4.3L and the 1997-2000 Isuzu Hombre V6 4.3L take one as well.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting type: in-tank
- Inlet outside diameter: 11.1 mm
- Outlet outside diameter: 11.1 mm
- Inside diameter: 6 mm
- Connector: 1 square/rectangle connector, 4 male blade terminals
- Voltage: 12 V DC
Build and materials
- Type: electric, self-priming module
- Housing material: polymer / plastic
- Material: mixed
- Gasket or seal material: synthetic or NBR rubber
- Outlet type: SAE
- Condition: new
- Country of origin: United States
In the box
One fuel pump module with a strainer, fuel filter, fuel sending unit, regulator, fuel tank pressure sensor, gasket or seal and O-ring. The lock ring, mounting hardware, suction pipe and wire harness are not included, so plan on a new lock ring and hardware rather than relying on the old ones.
Installation notes
- Designed for simple plug-and-play installation.
Interchange: 19331267 · 8191772380
Frequently Asked Questions
Does the Bosch 67420 fuel pump module fit the 1997-2000 Isuzu Hombre V6 4.3L?
Yes. Bosch 67420 is listed for the 1997-2000 Isuzu Hombre V6 4.3L, and that vehicle takes one module.
Does the Bosch 67420 fuel pump module come with a lock ring?
No. This Bosch 67420 module comes without a lock ring, mounting hardware, suction pipe or wire harness. It does include a gasket or seal and an O-ring.
What size are the inlet and outlet on this in-tank fuel pump module?
The inlet and outlet outside diameters are each 11.1 mm, and the inside diameter is 6 mm. The outlet type is SAE.
What voltage does the Bosch 67420 fuel pump module run on?
This Bosch 67420 module runs on 12 volts DC from the battery. It is an electric, self-priming pump that connects through one connector with four male blade terminals.
Does Bosch 67420 replace the 8191772380 fuel pump module?
Yes. 8191772380 is a cross-reference number for Bosch 67420, a new in-tank electric fuel pump module with one outlet.
