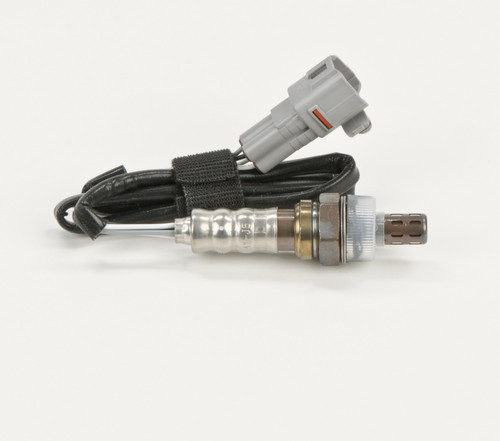

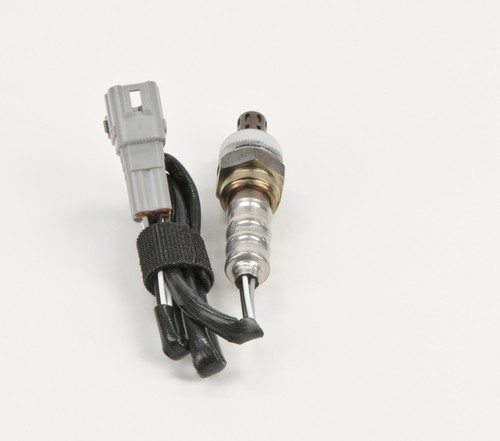

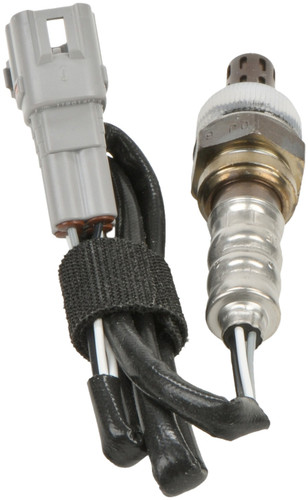

Bosch 15294 oxygen sensor for the 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L and other vehicles sends air-fuel-ratio readings to the ECU. Bosch oxygen sensors use ceramic elements and optimized heater control to keep those readings consistent under heat and vibration.
- Heated narrow-band sensor with an integrated heater element
- Metal housing and TSP coating resist vibration, corrosion and contamination in exhaust gas up to 1,880°F
- Reaches operating temperature in under 10 seconds for quick closed-loop control
- Helps keep combustion stable and reduce emissions across a wide range of operating conditions
Quick facts
- Part: Bosch 15294 oxygen sensor
- Fits: 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L and other vehicles
- Position: Downstream
- Material: Metal (housing)
- Condition: New
A check engine light, lower fuel economy or a failed emissions test can mean a downstream oxygen sensor is wearing out. Before you replace it, rule out an exhaust leak near the sensor, damaged wiring or a loose connector, since each of those can also turn on the warning light.
Fits
This listing is one downstream oxygen sensor, and it is a direct-fit replacement for the 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L, which takes one, the 2007 Suzuki SX4 4-cylinder 2.0L, which takes one, and the 2001-2004 Chevrolet Tracker V6 2.5L, which takes two. If your car is not named here, open the "Vehicles it fits" section and check your exact model and engine.
Specifications
Fit and size
- Position: Downstream
- Thread size: M18 - 1.5
- Hex size: 22 mm
- Length, sealing surface to end of connector: 23.8 in
Build and materials
- Type: Narrow-band, heated
- Housing material: Metal
- Wiring harness: included
- Condition: New
- Warranty: Bosch 1-year, unlimited-mileage warranty for non-commercial passenger cars and light trucks
In the box
One oxygen sensor with its wiring harness. A mounting bracket is not included.
Installation notes
- Conductive anti-seize is already applied to the threads.
- Direct-fit connectors for quick installation.
Frequently Asked Questions
Will this Suzuki SX4 oxygen sensor work on the 2007 model with the 4-cylinder 2.0L engine?
Yes. Bosch 15294 is a downstream sensor for the 2007 Suzuki SX4 4-cylinder 2.0L, which takes one.
Is this Grand Vitara oxygen sensor right for 2009-2013 models with the 4-cylinder 2.4L?
Yes. Bosch 15294 is the downstream sensor for the 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L, and that engine takes one.
Is this Bosch O2 sensor heated, and what type is it?
Yes. This downstream sensor is a heated narrow-band type with an integrated heater element.
What thread and hex size does this Bosch premium oxygen sensor have?
The thread is M18 - 1.5 and the hex is 22 mm. Length from the sealing surface to the end of the connector is 23.8 in.
Does this oxygen sensor come with a wiring harness or a mounting bracket?
The wiring harness is included. A mounting bracket is not included.
