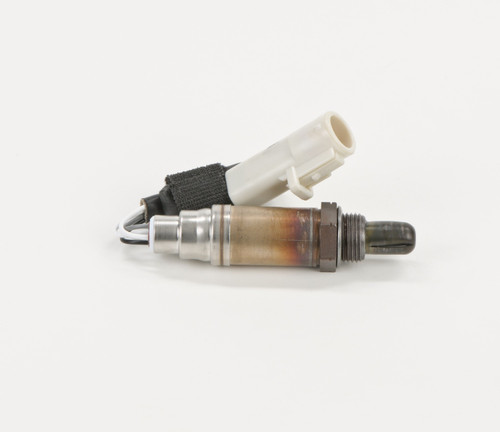

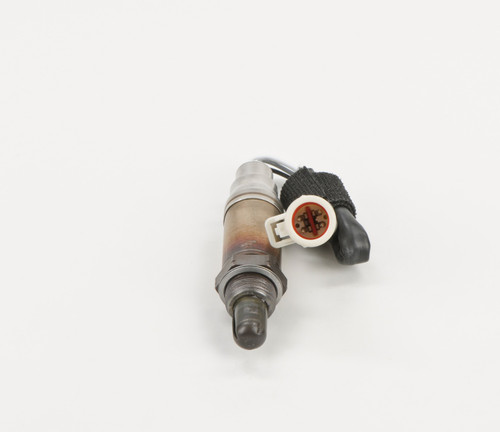

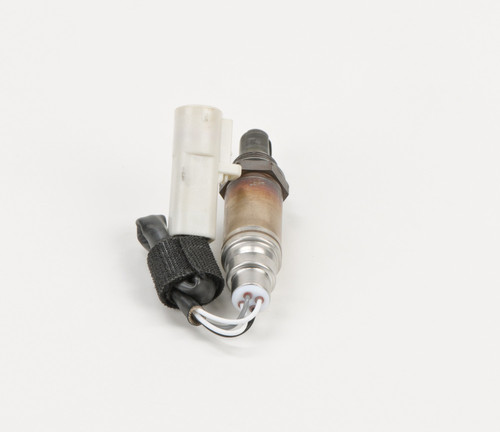

Bosch 15716 oxygen sensor for the 2001-2006 Ford Escape V6 3.0L and other vehicles measures the oxygen left in the exhaust. It sends air-fuel-ratio readings to the ECU, which uses them to keep combustion steady and emissions down.
- Narrow-band switching design with advanced ceramic elements and optimized heater control
- Integrated heater element brings the sensor to operating temperature in under 10 seconds
- Withstands exhaust streams up to 1,880°F
- Metal housing and TSP coating resist vibration, corrosion and contamination
Quick facts
- Part: Bosch 15716 oxygen sensor
- Fits: 2001-2006 Ford Escape V6 3.0L and other vehicles
- Position: upstream, downstream, upstream left, upstream right, downstream left, upstream rear
- Material: Metal housing
- Condition: New
A worn Bosch O2 sensor can show up as a check engine light, a rough idle or lower fuel economy. Before you replace the sensor, rule out an exhaust leak near it and a damaged harness, because either one can also trip the check engine light.
Fits
This sensor also fits the 1990 Ford F-150 6-cylinder 4.9L and the 1991-1993 F-150 V8 5.0L or 5.8L. As an oxygen sensor for the 1997-1998 Ford Expedition V8 4.6L, it is sold one per listing, and the 1997-1998 Expedition V8 4.6L takes two. If your vehicle isn't named here, look up your year, make, model and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: upstream, downstream, upstream left, upstream right, downstream left, upstream rear
- Quantity per vehicle: varies by application
- Thread size: M18 - 1.5
- Hex size: 22 mm
- Length (sealing surface to end of connector): 10.6 in
Build and materials
- Type: narrow-band heated, switching-type
- Heated: Yes
- Housing material: metal
- Wiring harness: included
- Mounting bracket: not included
- Condition: New
- Bosch warranty: 1 year, unlimited mileage, for non-commercial passenger cars and light trucks
In the box
One oxygen sensor with its wiring harness. A mounting bracket is not included, and an old bracket may not be reusable.
Installation notes
- Direct-fit connectors for quick installation.
- Conductive anti-seize is pre-applied on the threads.
Frequently Asked Questions
Is this the right O2 sensor for a 2001-2006 Ford Escape V6 3.0L?
Yes. Bosch 15716 fits the 2001-2006 Ford Escape V6 3.0L, which takes one sensor.
Does this Ford F-150 oxygen sensor fit a 1990 F-150 with the 6-cylinder 4.9L?
Yes. Bosch 15716 fits the 1990 Ford F-150 6-cylinder 4.9L and the 1991-1993 F-150 V8 5.0L or 5.8L, one sensor each.
Does this oxygen sensor come with a wiring harness?
Yes, the wiring harness is included with the sensor. A mounting bracket is not included.
Is this Bosch premium oxygen sensor heated, and what thread does it have?
Yes. It is a heated narrow-band sensor with an M18 - 1.5 thread and a 22 mm hex.
Does this sensor already have anti-seize on the threads?
Yes. The threads come with conductive anti-seize applied at the factory, and the direct-fit connectors keep installation quick.
