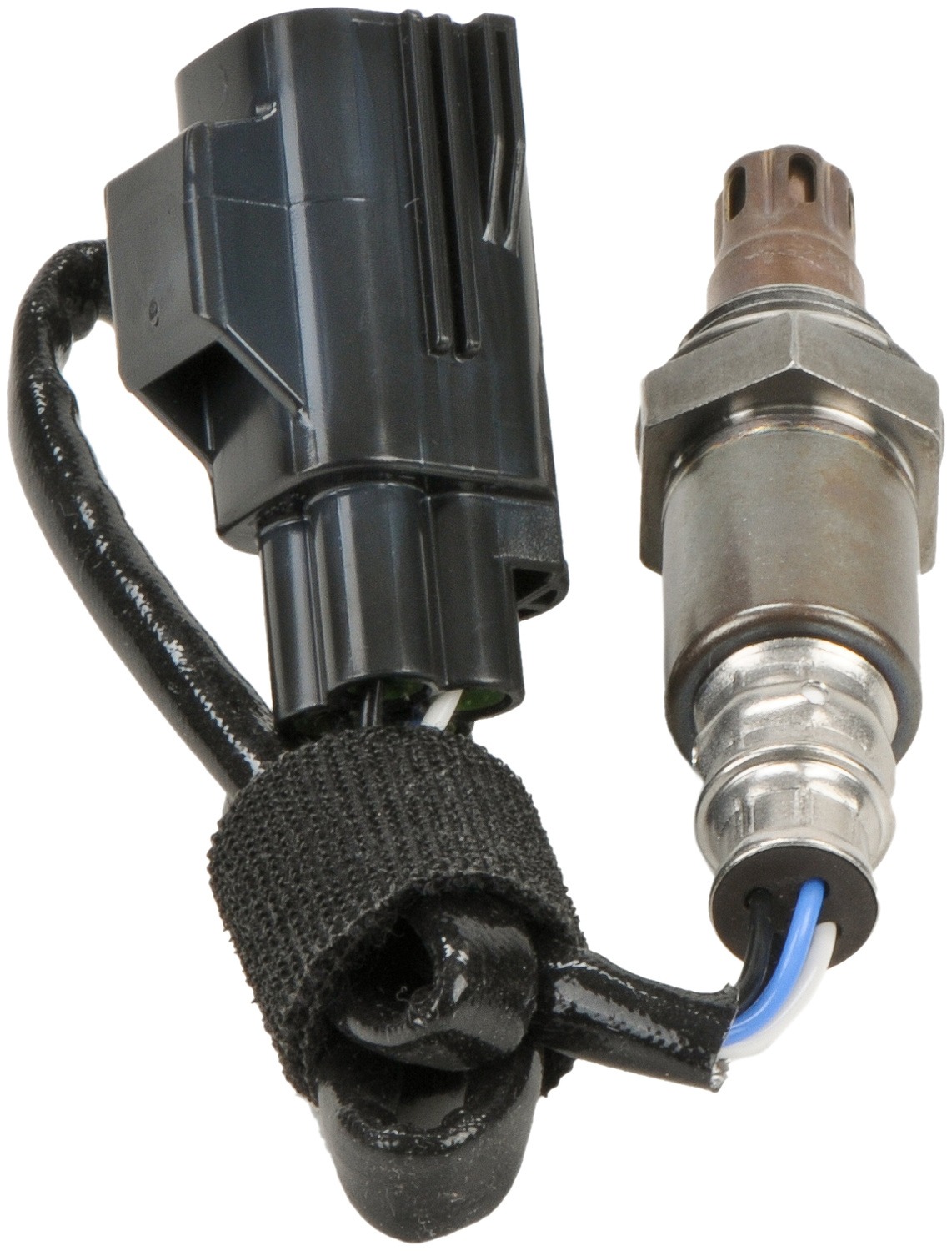

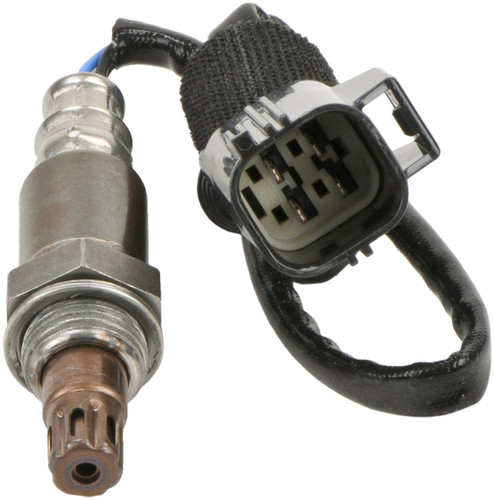

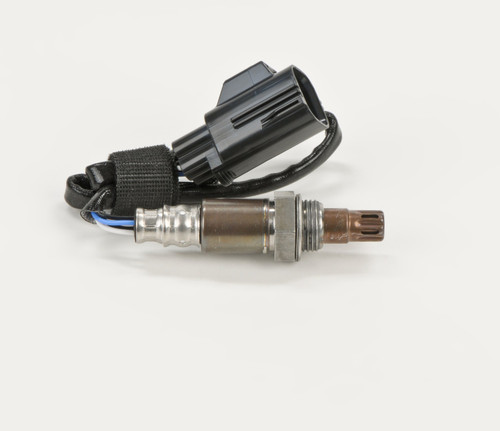

Bosch 15817 oxygen sensor for the 2015-2016 Volvo V60 5-cylinder 2.5L or 6-cylinder 3.0L, the 2015-2018 V60 4-cylinder 2.0L and other vehicles measures the air-fuel ratio in the exhaust and reports it to the ECU. This upstream wideband sensor gives the ECU more detailed readings than a traditional switching sensor.
- Wideband A/F planar pump-cell design measures the air-fuel ratio across the full lambda range
- Reaches operating temperature in under 7 seconds for quick closed-loop control
- Integrated heater element with optimized heater control
- Metal housing and TSP coating resist vibration, corrosion and contamination
- Withstands exhaust gas temperatures up to 1,880°F
Quick facts
- Part: Bosch 15817 oxygen sensor
- Fits: the 2015-2016 Volvo V60 5-cylinder 2.5L or 6-cylinder 3.0L, the 2015-2018 V60 4-cylinder 2.0L and other vehicles
- Position: Upstream
- Material: Metal housing
- Condition: New
A failing oxygen sensor can show up as a check engine light, rough running or higher fuel use, but a problem elsewhere can also bring on those symptoms. If the sensor is the cause, this replaces it; first, with the engine off and the exhaust cool, look over the wiring and connector for cuts, melted insulation or a loose fit.
Fits
It is listed for a wide range of Volvo and Land Rover models, including the 2010-2015 Volvo XC60 6-cylinder 3.2L, the 2010-2016 XC60 6-cylinder 3.0L, the 2015-2016 XC60 5-cylinder 2.5L and the 2015-2017 XC60 4-cylinder 2.0L. This listing is one sensor: the 2007-2014 Volvo XC90 6-cylinder 3.2L takes two, and the 2015-2018 V60 4-cylinder 2.0L takes one. If your car is not named here, find it in the "Vehicles it fits" section with your year and engine.
Specifications
Fit and size
- Position: Upstream
- Mounting type: Threaded
- Thread size: M18 - 1.5
- Hex size: 22 mm
- Overall length: 19.9 in
- Length (sealing surface to end of connector): 18.7 in
- Wiring harness length: 16.5 in
Build and materials
- Sensor type: Wide-band, heated
- Housing material: Metal
- Connector: Male, rectangle shape, 4 blade terminals
- Grade: Standard replacement
- Condition: New
- Warranty: Bosch 1-year, unlimited-mileage warranty for non-commercial passenger cars and light trucks
- Country of origin: Japan
In the box
One oxygen sensor with its wiring harness. A mounting bracket is not included.
Installation notes
- Conductive anti-seize is pre-applied on the threads.
- Direct-fit connector for quick installation.
Frequently Asked Questions
Will this Volvo XC90 oxygen sensor work in a 2007-2014 model with the 6-cylinder 3.2L?
Yes. Bosch 15817 is listed for the 2007-2014 Volvo XC90 6-cylinder 3.2L, and that vehicle takes two sensors.
Does this Volvo XC60 oxygen sensor fit the 2010-2016 XC60 with the 6-cylinder 3.0L?
Yes. Bosch 15817 is listed for the 2010-2016 Volvo XC60 6-cylinder 3.0L, and that engine takes one sensor.
How quickly does this Bosch O2 sensor reach operating temperature?
It reaches operating temperature in under 7 seconds. That gives the ECU a quick signal for closed-loop control and helps cold-start performance.
What thread size does this Bosch premium oxygen sensor use?
The thread size is M18 - 1.5, and the hex size is 22 mm.
Is a wiring harness included with this wideband oxygen sensor?
Yes, the wiring harness is included, with a 4-terminal blade connector. A mounting bracket is not included.
