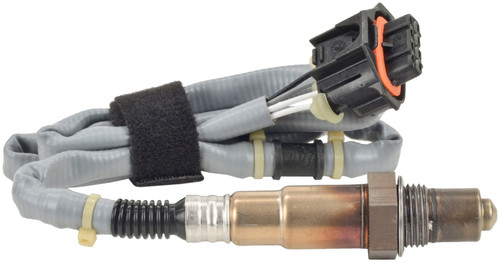

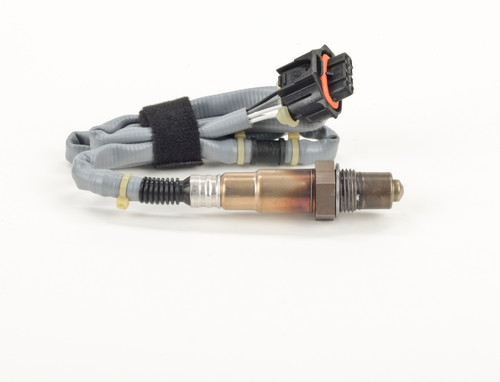

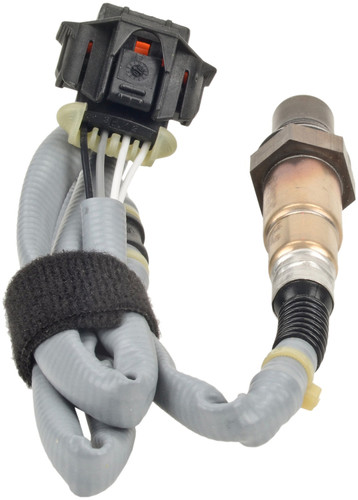

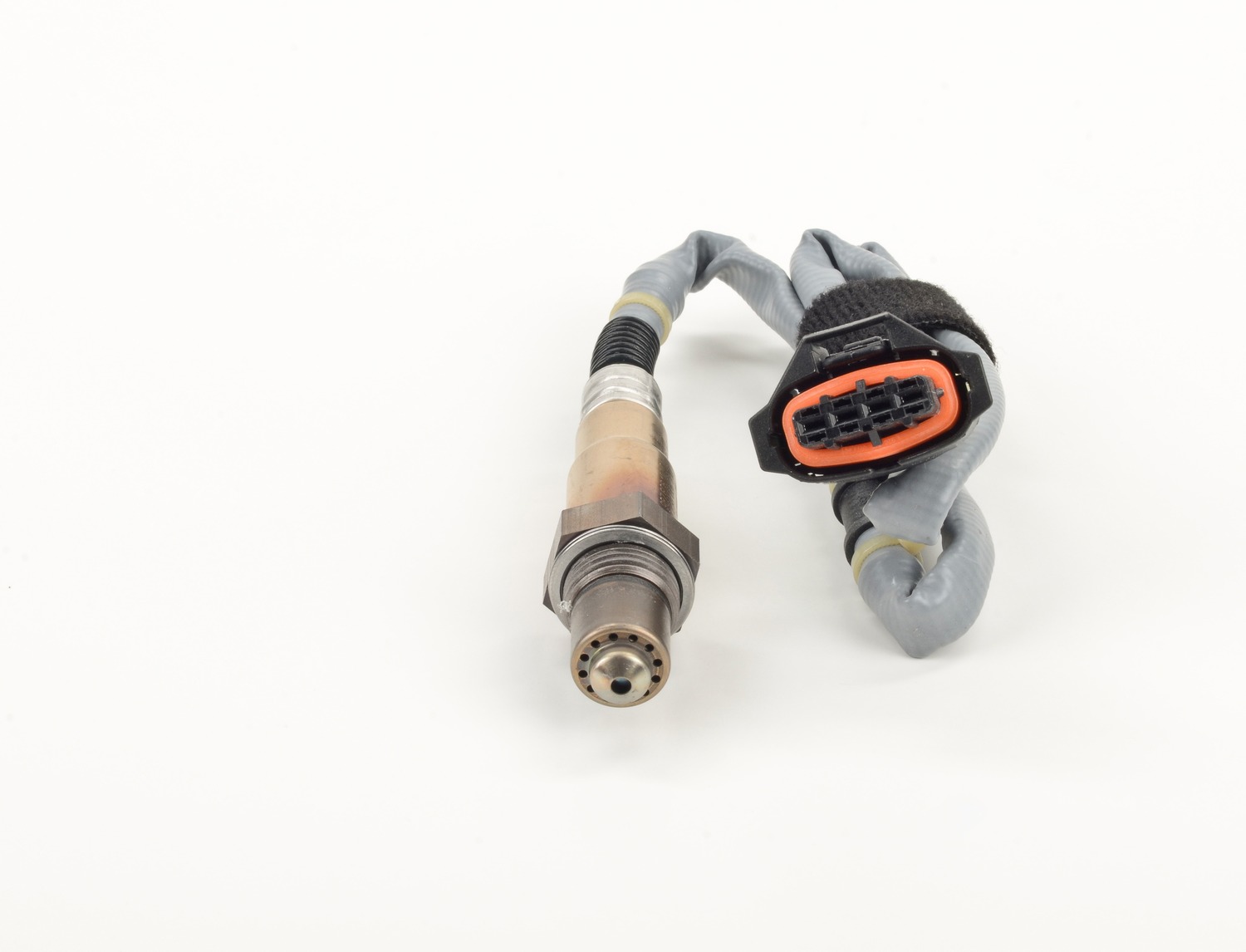

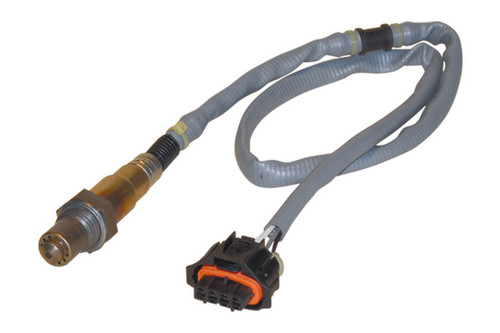

Bosch 16810 oxygen sensor for the 2010-2011 Porsche 911 H6 3.8L and other vehicles reads the exhaust and reports the air-fuel ratio to the ECU. This downstream Bosch O2 sensor is a heated, narrow-band switching type.
- Air-fuel-ratio readings go to the ECU for stable combustion control and help reduce emissions
- Withstands exhaust streams up to 1,880°F, with an integrated heater element and TSP coating that resist vibration, corrosion and contamination
- Reaches operating temperature in under 10 seconds for quick closed-loop control and cold starts
- Advanced ceramic element and optimized heater control for consistent output under thermal and vibration loads
Quick facts
- Part: Bosch 16810 oxygen sensor
- Fits: 2010-2011 Porsche 911 H6 3.8L and other vehicles
- Position: Downstream
- Material: Metal housing
- Condition: New
A worn oxygen sensor can show up as a check engine light, poorer fuel economy or rough running. Before you replace it, rule out an exhaust leak near the sensor, damaged wiring or a loose connector, since each of those can produce similar readings or symptoms.
Fits
This sensor fits the 2010-2011 Porsche 911 H6 3.8L and the 2007-2008 911 H6 3.6L, the 2005-2006 Porsche Boxster H6 3.2L, the 2005-2008 Boxster H6 2.7L and the 2007-2008 Boxster H6 3.4L, and the 2006-2008 Porsche Cayman H6 3.4L and the 2007-2008 Cayman H6 2.7L. This listing is one sensor. The 2005-2008 Boxster H6 2.7L takes two, and the 2007-2008 Cayman H6 2.7L takes one.
Specifications
Fit and size
- Position: Downstream
- Thread size: M18 - 1.5
- Hex size: 22 mm
- Length (sealing surface to end of connector): 29.9 in
Build and materials
- Type: Narrow-band, heated
- Housing material: Metal
- Coating: TSP coating
- Condition: New
- Bosch warranty: 1 year, unlimited mileage, for non-commercial passenger cars and light trucks
In the box
One oxygen sensor with its wiring harness. A mounting bracket is not included.
Installation notes
- Direct-fit connectors.
- Conductive anti-seize is pre-applied to the threads.
Frequently Asked Questions
Does this Porsche 911 oxygen sensor fit the 2010-2011 Porsche 911 H6 3.8L?
Yes. Bosch 16810 fits the 2010-2011 Porsche 911 H6 3.8L, and it is a downstream sensor.
Is this Boxster oxygen sensor made for the 2005-2008 Porsche Boxster H6 2.7L?
Yes. The 2005-2008 Porsche Boxster H6 2.7L is on the fit list for Bosch 16810, and that engine takes two sensors.
Is this Bosch premium oxygen sensor heated?
Yes. Bosch 16810 is a heated, narrow-band sensor with an M18 - 1.5 thread and a 22 mm hex.
Does this downstream oxygen sensor include the wiring harness?
Yes. The sensor comes with its wiring harness. A mounting bracket is not included.
Is anti-seize already on the threads of this oxygen sensor?
Yes. Conductive anti-seize comes pre-applied on the threads, and the connectors are direct-fit.
