Left Oxygen Sensor for 2009-2010 Ford F-150 & More - Bosch 17196

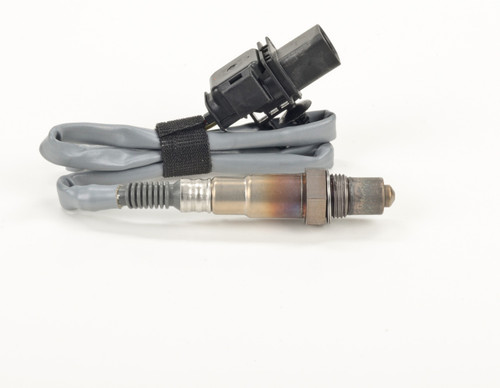

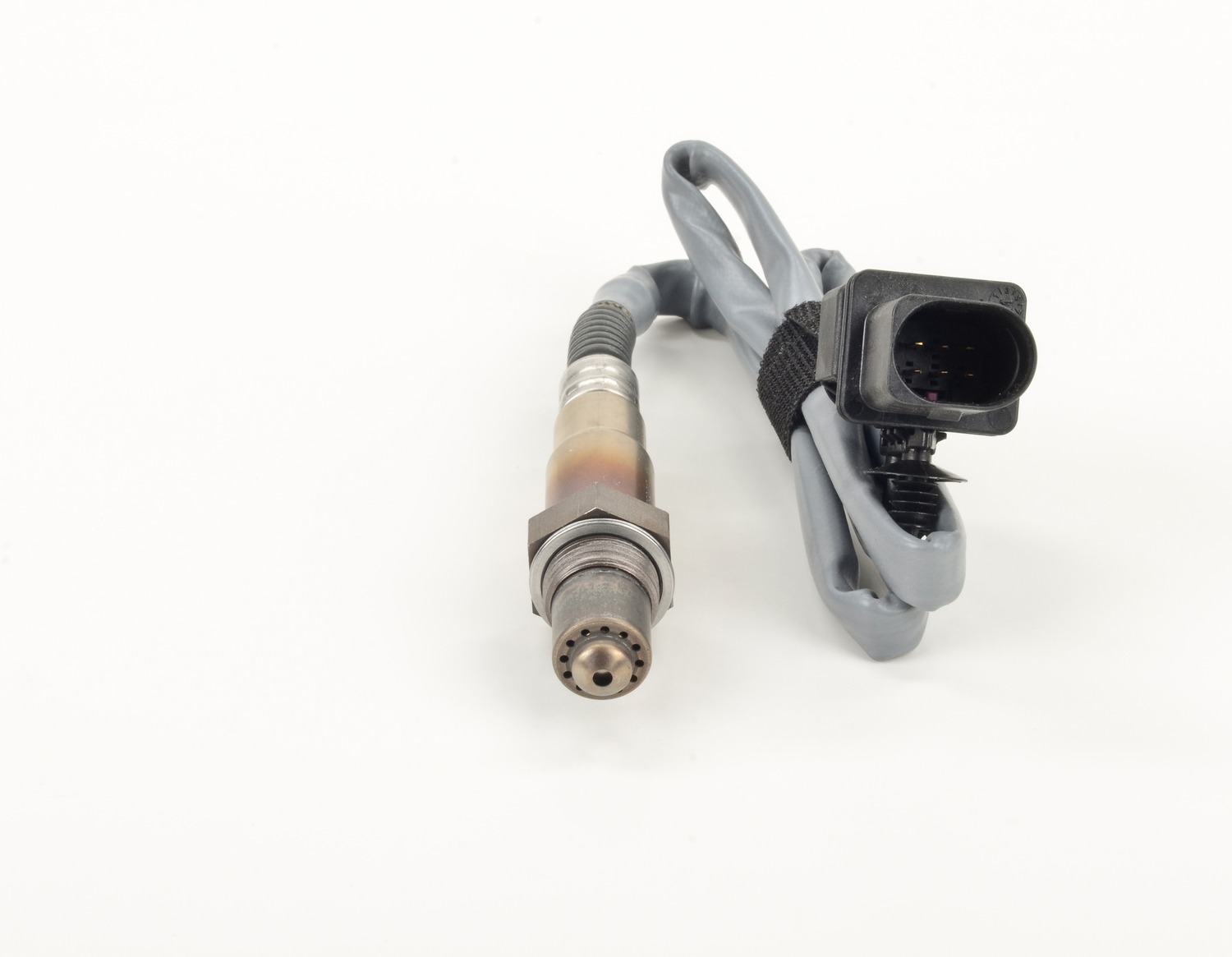

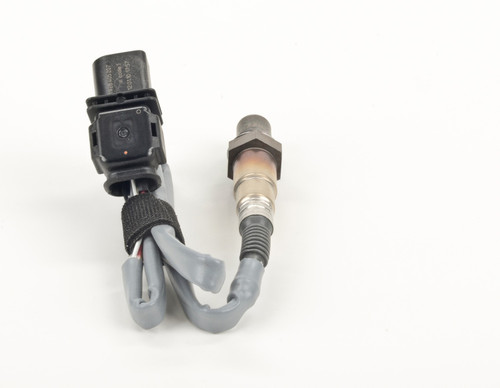

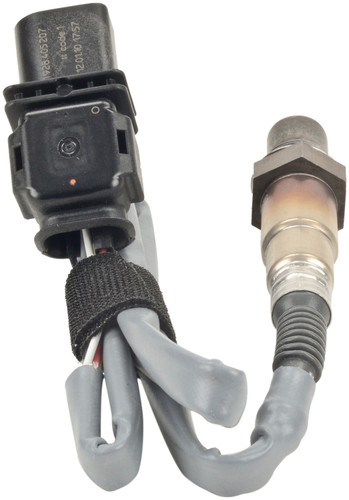

Bosch 17196 left oxygen sensor for the 2009-2010 Ford F-150 V8 4.6L or 5.4L, the 2010 F-150 V8 6.2L and other vehicles measures the air-fuel ratio in the exhaust for the engine computer. This Bosch O2 sensor is a wide-band unit for the upstream left position.

• Wide-band design that measures the air-fuel ratio continuously across the full lambda range
• Planar pump-cell design with optimized heater control
• Reaches operating temperature in under 7 seconds for quick closed-loop control
• Metal housing and TSP coating resist vibration, corrosion and contamination in exhaust up to 1,880°F
• Ceramic construction holds up through rapid load changes and thermal cycling

Quick facts

• Part: Bosch 17196 oxygen sensor
• Fits: 2009-2010 Ford F-150 V8 4.6L or 5.4L, the 2010 F-150 V8 6.2L and other vehicles
• Position: Upstream left
• Material: Metal
• Condition: New

A check engine light, rough running or poor fuel economy can point to a worn oxygen sensor, but an exhaust leak or damaged wiring can show the same signs. With the engine off and cool, look over the harness and connector for melted insulation or breaks before you replace the sensor.

Fits

This is an oxygen sensor for the 2009-2010 Ford F-150 V8 4.6L or 5.4L, the 2010 F-150 V8 6.2L, the 2009-2011 Ford Expedition V8 5.4L and the 2009-2011 Lincoln Navigator V8 5.4L. This listing is one sensor for the left side; the right side is a separate part and is ordered separately.

Specifications

In the box

One oxygen sensor with its wiring harness.

Installation notes

• Conductive anti-seize is pre-applied to the threads.
• Direct-fit connectors are made for quick installation.
