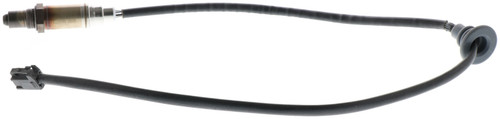

Bosch 18013 oxygen sensor for the 2009-2013 Toyota Corolla 4-cylinder 1.8L and other vehicles reports the oxygen content of the exhaust to the ECU. This Bosch premium oxygen sensor is a heated, narrow-band switching-type design for the downstream position.
- Switching-type sensor that gives the ECU precise air-fuel-ratio measurements for stable combustion control
- Integrated heater element and advanced ceramic element for consistent output under thermal and vibration loads
- Handles exhaust streams up to 1,880°F, with a TSP coating that resists vibration, corrosion and contamination
- Reaches operating temperature in <10 seconds and gives the ECU a fast signal for quick closed-loop control
Quick facts
- Part: Bosch 18013 oxygen sensor
- Fits: the 2009-2013 Toyota Corolla 4-cylinder 1.8L and other vehicles
- Position: Downstream
- Material: Metal
- Condition: New
A worn sensor can show up as a check engine light, rough running or poorer fuel economy, but a different fault can look just the same. Before replacing it, look over any wiring and connector you can see with the engine off and cool for damage or melted insulation, and have a shop read the stored codes to find the real cause.
Fits
The 2009-2013 Toyota Matrix 4-cylinder 2.4L, the 2009-2014 Matrix 4-cylinder 1.8L and the 2009-2010 Pontiac Vibe 4-cylinder 1.8L or 2.4L fit this sensor, and so do many other vehicles. Open the "Vehicles it fits" section to check your exact model and engine. This listing is one sensor, and the 2009-2013 Toyota Corolla 4-cylinder 1.8L takes one.
Specifications
Fit and size
- Position: Downstream
- Sold as: one sensor per listing
- Thread size: M18 - 1.5
- Hex size: 22 mm
- Length (sealing surface to end of connector): 31.1 in
Build and materials
- Type: heated, narrow-band, direct fit
- Housing material: Metal
- Wiring harness: included
- Condition: New
- Warranty: Bosch 1-year, unlimited-mileage warranty for non-commercial passenger cars and light trucks
In the box
One oxygen sensor with its wiring harness. A mounting bracket is not included.
Installation notes
- Conductive anti-seize is pre-applied on the threads.
- The direct-fit connector is made for quick installation.
Frequently Asked Questions
Will this Toyota Corolla oxygen sensor work on a 2009-2013 Corolla 4-cylinder 1.8L?
Yes. Bosch 18013 fits the 2009-2013 Toyota Corolla 4-cylinder 1.8L and takes one sensor. Check the "Vehicles it fits" section if your car is another model.
Does this Toyota Matrix oxygen sensor fit a 2009-2014 Matrix 4-cylinder 1.8L?
Yes. Bosch 18013 fits the 2009-2014 Toyota Matrix 4-cylinder 1.8L and the 2009-2013 Matrix 4-cylinder 2.4L, one sensor per car.
Is this Bosch O2 sensor upstream or downstream?
Downstream. Bosch 18013 is a downstream, heated, narrow-band oxygen sensor with an M18 - 1.5 thread and a 22 mm hex.
What comes with the Bosch 18013 oxygen sensor?
One sensor with its wiring harness. A mounting bracket is not included.
Is anti-seize already on the threads of the Bosch 18013?
Yes. The threads have pre-applied conductive anti-seize, and the connector is direct-fit for quick installation.
