Front Brake Rotor for 1990-1996 Ford F-150 & More - Bosch 20010338

$103.99

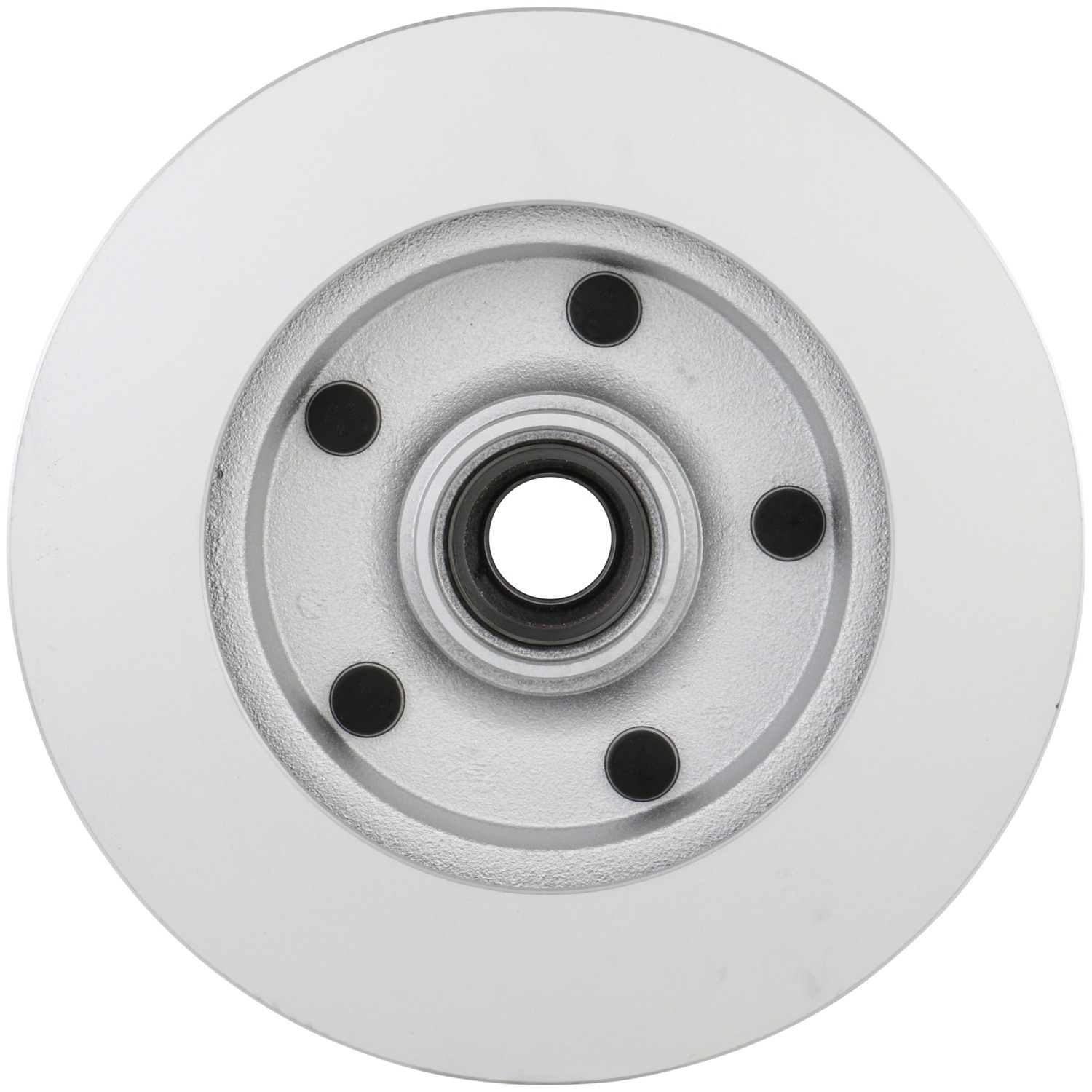

Bosch Disc Brake Rotor 20010338

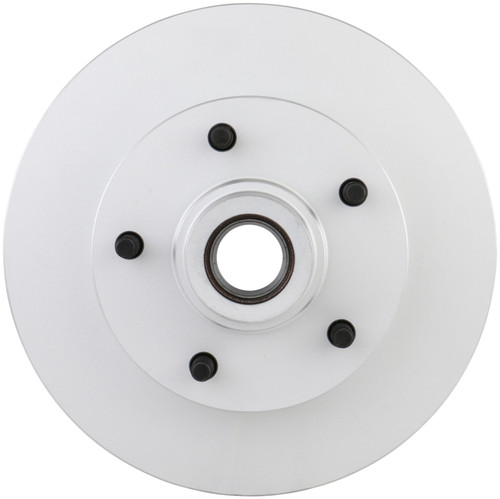

Bosch Disc Brake Rotor 20010338 - view 2

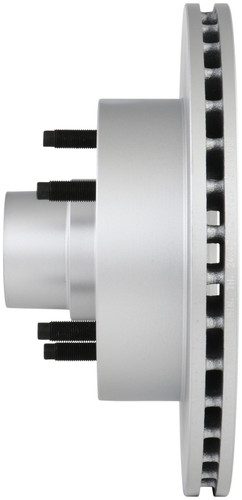

Bosch Disc Brake Rotor 20010338 - view 3

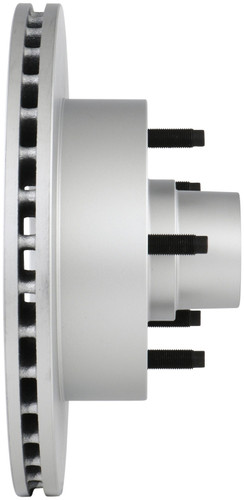

Bosch Disc Brake Rotor 20010338 - view 4

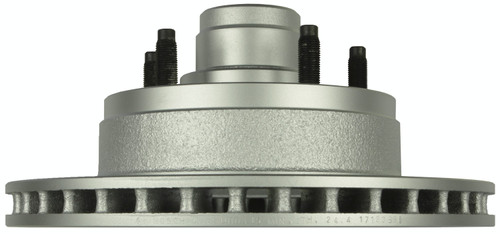

Bosch Disc Brake Rotor 20010338 - view 5
Bosch Disc Brake Rotor 20010338
Bosch Disc Brake Rotor 20010338 - view 2
Bosch Disc Brake Rotor 20010338 - view 3
Bosch Disc Brake Rotor 20010338 - view 4
Bosch Disc Brake Rotor 20010338 - view 5

Vehicles this part fits
    Part number: 20010338
    UPC: 077212079988
    Condition: New
    Weight: 26.21 LBS
    Item Package Quantity: 1
    $103.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Bosch Disc Brake Rotor P/N:20010338
    Bosch Disc Brake Rotor P/N:20010338
    $103.99
    $103.99

    Bosch 20010338 front brake rotor for the 1990-1996 Ford F-150 and other vehicles gives the front brakes a vented surface to clamp so the vehicle slows and stops. This Bosch QuietCast brake rotor is checked with 3D laser measuring and repeated inspection.

    • 100% precision balanced for smooth operation and minimized vibration
    • Extremely tight tolerances with low run-out and DTV specifications for a smooth pedal feel without pulsation
    • Heat flowed castings promote consistent wear for quiet operation and long life
    • Vane configuration designed for proper heat dissipation from the braking system
    • Full coating, including the vanes where applicable, protects against corrosion
    • Engraved edge code carries the rotor's identification and discard specification

    Quick facts

    • Part: Bosch 20010338 brake rotor
    • Also called: disc brake rotor
    • Fits: 1990-1996 Ford F-150 and other vehicles
    • Position: Front
    • Material: Iron alloy
    • Condition: New

    A pulsing brake pedal, a scraping or grinding noise when braking, and deep grooves or heavy rust on the rotor face can mean this rotor is worn. Before you replace it, rule out worn pads, a sticking caliper and wheel bearing play, because any of them can bring on similar complaints.

    Fits

    This front rotor is a direct-fit replacement for the 1990-1996 Ford F-150, the 1995-2002 Ford E-150 Econoline and the 1999-2002 Ford E-150 Econoline Club Wagon. This listing is one rotor; the front axle takes one on each side, and the other front rotor is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2, one on each side of the front axle
    • Outside diameter: 297.7 mm
    • Center bore diameter: 59.055 mm
    • Bolt circle: 139.7 mm, 5 lug holes
    • Nominal thickness: 26 mm
    • Discard thickness: 24.45 mm
    • Overall height: 133 mm (5.23622 in)

    Build and materials

    • Construction: Vented, conventional type
    • Material: Iron alloy
    • Brake surface: Directional, smooth
    • Finish: Geomet disc finish, coated hat, rust-resistant coating
    • ABS sensor ring: for trouble-free ABS and traction control operation on equipped vehicles
    • Condition: New

    In the box

    One front brake rotor with its hub and bearings included.

    Interchange: YL3Z1V102C

    This part cross-references / interchanges with the following part numbers:

    YL3Z1V102C

    Frequently Asked Questions

    Does this front rotor work as one of the brake rotors for a 1990-1996 Ford F-150?

    Yes. Bosch 20010338 is a front brake rotor for the 1990-1996 Ford F-150, which takes one on each side of the front axle.

    What size is this Bosch QuietCast Premium disc brake rotor?

    This front rotor measures 297.7 mm across and 26 mm thick, with a 139.7 mm bolt circle for 5 lugs and a 59.055 mm center bore.

    What is the discard thickness on the Bosch 20010338 rotor?

    Bosch 20010338 has a discard thickness of 24.45 mm, down from 26 mm new. Replace the rotor once it measures at or below 24.45 mm.

    Does this hub-style front rotor come with bearings?

    Yes. This front brake rotor comes with its hub, and bearings are included.

    Is this one of the Bosch QuietCast rotors with a corrosion-resistant coating?

    Yes. This front rotor has a Geomet disc finish, a coated hat and a full coating that covers the vanes where applicable to protect against corrosion.
