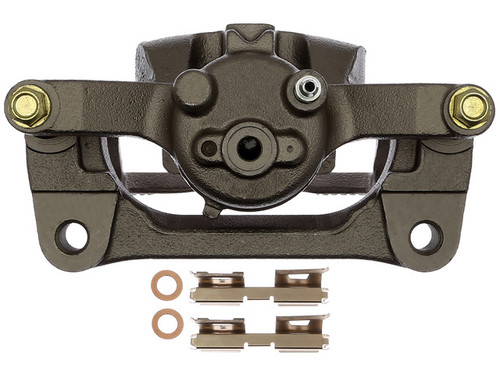

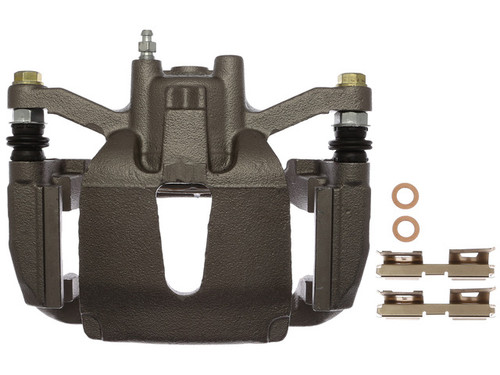

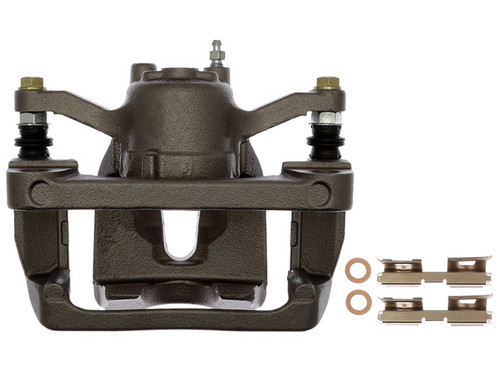

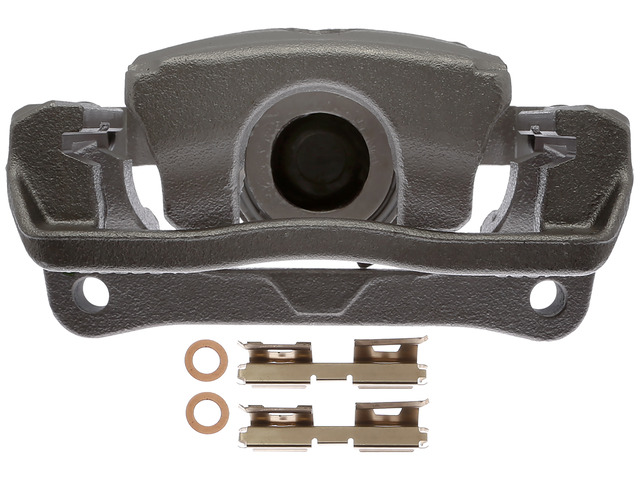

Remanufactured Rear Left Brake Caliper for 2012-2020 Ford F-150 - Raybestos FRC12618

$173.99

Vehicles this part fits

    Part number: FRC12618
    UPC: 887213096545
    Condition: Refurbished
    Weight: 9.46 LBS
    Item Package Quantity: 1
    $173.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Caliper P/N:FRC12618
    Raybestos Brakes Disc Brake Caliper P/N:FRC12618
    $173.99
    $173.99

    Raybestos Brakes FRC12618 rear left brake caliper for the 2012-2020 Ford F-150 squeezes the brake pads against the rotor to slow the wheel. This remanufactured semi-loaded disc brake caliper and bracket assembly uses materials matching OE specifications.

    • Raybestos R-Line non-plated caliper remanufactured with all new rubber and sealing components
    • Castings, guide pins and brackets are inspected before being reused
    • Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new parts for leak-free operation
    • Silicone boots for heavy duty applications, where applicable
    • Every caliper is 100% pressure tested
    • EPDM70 rubber components for heat resistance, performance and durability

    Quick facts

    • Part: Raybestos Brakes FRC12618 brake caliper
    • Also called: disc brake caliper
    • Fits: 2012-2020 Ford F-150
    • Position: Rear left
    • Material: Cast iron
    • Condition: Remanufactured

    A caliper that is wearing out or failing can show up as the truck pulling to one side when braking, pads worn unevenly, or brake fluid around the caliper. Worn pads or another brake fault can look much alike, so before replacing it, during a brake service with the engine off, look for fluid weeping at the caliper boot and measure the pad thickness.

    Fits

    This rear left caliper fits the 2012-2020 Ford F-150. This listing is one caliper; the rear right is a separate part, and both sides are normally replaced together.

    Specifications

    Fit and size

    • Position: Rear left
    • Quantity per vehicle: 1 for the rear left side
    • Piston diameter: 53.9 mm (2.122 in)
    • Bracket mounting hole: 14.000 mm, thread pitch 1.500 mm
    • Bleeder screw thread: M10x1

    Build and materials

    • Caliper type: Floating
    • Construction: Semi-loaded caliper and bracket assembly
    • Casting material: Cast iron
    • Condition: Remanufactured
    • Country of origin: Mexico

    In the box

    One remanufactured caliper and bracket assembly for the rear left. The truck takes one on that side, and the rear right is ordered separately.

    Interchange: 18-B5397 · 99-17981B · 18-P5397 · 141.65548 · 141.65550 · 10-13410
    SC3355 · BRC280RM · BRC281RM · CL3Z2553A · CL3Z2B511B · CL3Z2B511D · FL3Z2553B · FL3Z2553C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18-B5397, 99-17981B, 18-P5397, 141.65548, 141.65550, SC3355, BRC280RM, BRC281RM, CL3Z2553A, CL3Z2B511B, CL3Z2B511D, FL3Z2553B, FL3Z2553C, 10-13410

    Frequently Asked Questions

    Does this rear left brake caliper fit the 2012-2020 Ford F-150?

    Yes. Raybestos Brakes FRC12618 is made for the rear left side of the 2012-2020 Ford F-150. The rear right side takes a different, separate caliper.

    What size is the piston on this floating caliper?

    The piston measures 53.9 mm (2.122 in) across. The bleeder screw thread is M10x1, and the bracket mounting hole is 14.000 mm with a 1.500 mm thread pitch.

    Which parts are new in this remanufactured caliper?

    All the rubber and sealing components are new, including seals, boots and bleeder screws. Abutment hardware, banjo bolts and O-rings are also replaced, and the caliper is 100% pressure tested.

    How can I tell if a rear brake caliper is leaking or sticking?

    During a brake service with the engine off, look for fluid around the caliper boot and for pads worn unevenly. A shop can test a caliper that may be sticking.

    Is Raybestos Brakes FRC12618 interchangeable with 18-B5397?

    Yes. 18-B5397 is one of the numbers this caliper replaces, along with 99-17981B and 141.65548. Every other cross-reference number sits on the Interchange line.
