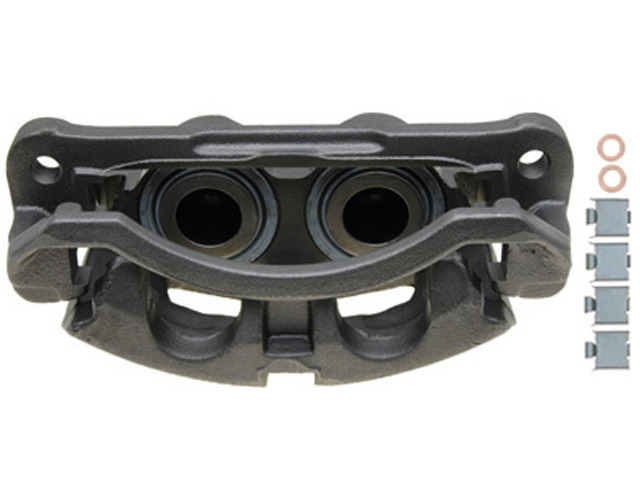

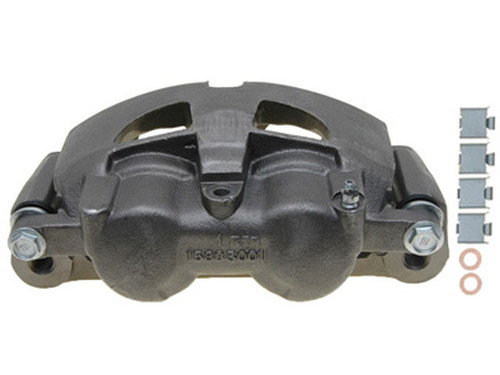

Keep your front-left brake corner clamping smoothly with the Raybestos R-Line Semi-Loaded Disc Brake Caliper FRC12276, a remanufactured brake caliper and bracket assembly that installs as a direct-fit replacement for the listed applications. It fits many trucks, among them the 2012 Ram 1500, 2011-2018 Ram 2500 and 2009-2010 Dodge Ram 2500; see the Buyer's Guide tab for the full list. This is the front-left unit; the caliper applies the hydraulic clamping force that presses the brake pads against the rotor.
This floating cast-iron caliper uses a 2.358 in (59.9 mm) piston and an M10x1 bleeder screw thread, with a 16.000 mm bracket mounting hole at a 2.500 mm thread pitch. Sold individually; replacing both sides as a matched pair is recommended for balanced braking. Country of origin: Mexico.
Interchange: 18-B5173 · 99-17752B · 99-17753A · 18-P5173 · 141.67062 · 142.67062
18B5173 · 9917752B · 9917753A · 18P5173 · 14167062 · 14267062 · SC2045
This part cross-references / interchanges with the following part numbers:
Is this the right 2012 Ram 1500 brake caliper?
Yes. FRC12276 is listed for the 2012 Ram 1500 in the front-left position. See the Buyer's Guide tab for the full list of vehicles.
Is this a new or remanufactured caliper?
It is a remanufactured Raybestos R-Line unit built on inspected OE castings, guide pins, and brackets with all-new rubber sealing components, then 100% pressure tested.
What is included in this assembly?
It is a semi-loaded caliper and bracket assembly. New seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are fitted for leak-free operation.
What piston size does this caliper use?
This floating cast-iron caliper uses a 2.358 in (59.9 mm) piston and has an M10x1 bleeder screw thread.
Should I replace both front calipers at once?
Replacing calipers as a matched pair is best practice for balanced, even braking, though this listing is for one front-left caliper. Diagnose the cause of the brake issue before replacing.
WARNING: These products can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
