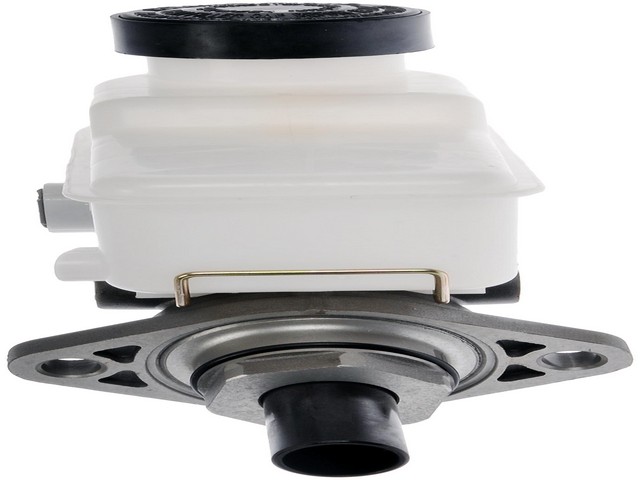

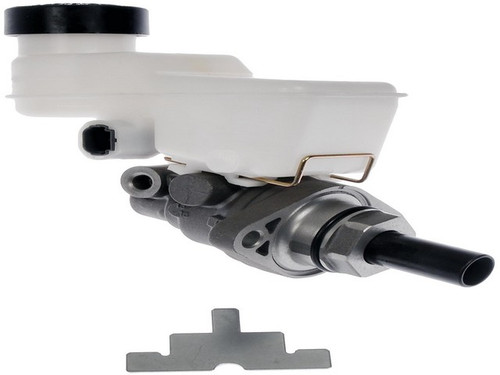

Dorman M630832 brake master cylinder for the 2000-2005 Toyota Echo turns pedal force into hydraulic pressure for the brakes. This Dorman brake master cylinder is made entirely of new materials.
- Sold in the Dorman First Stop line
- Aluminum master cylinder body
- All rubber components are EPDM compound for resistance to glycol-based brake fluid
- Made to meet SAE International standards
- Reservoir and sensor included
Quick facts
- Part: Dorman M630832 brake master cylinder
- Fits: 2000-2005 Toyota Echo
- Material: Aluminum
- Condition: New
A soft or sinking brake pedal, brake fluid leaking at the cylinder or a brake warning light can mean the master cylinder is wearing out. A leaking brake hose or a sticking caliper can be behind those signs too, so find the cause before buying.
Fits
This master cylinder is a direct-fit replacement for the 2000-2005 Toyota Echo.
Specifications
Fit and size
- Quantity per vehicle: 1
- Bore diameter: 0.813 in
- Number of outlets: 3
- Rearward outlet size: M10 x 1.0
- Secondary outlet thread diameter: M10 x 1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Material: Aluminum
- Rubber components: EPDM compound
- Condition: New
- Country of origin: China
In the box
One brake master cylinder. This listing holds one, and the 2000-2005 Toyota Echo takes one. Mounting hardware is not included, and the old hardware may not be reusable, so plan on new pieces.
Interchange: 100-1627 · 13-3010 · 13-3775 · 11-3010
4720752021 · 4720752022 · F143166 · F143168 · MC143166 · MC143168 · R134874
This part cross-references / interchanges with the following part numbers:
100-1627, 13-3010, 13-3775, 11-3010, 4720752021, 4720752022, F143166, F143168, MC143166, MC143168, R134874
Frequently Asked Questions
Is Dorman M630832 the Toyota Echo brake master cylinder for 2000-2005 cars?
Yes. Dorman M630832 is a direct-fit replacement for the 2000-2005 Toyota Echo, and the car takes one.
Which parts are included with this Dorman master cylinder, and which are not?
Dorman M630832 includes the reservoir and sensor. Mounting hardware is not included, so plan on new hardware, since the old pieces may not be reusable.
What size are the outlet threads on this brake master cylinder?
The rearward and secondary outlets are M10 x 1.0, with a 1 mm primary outlet thread pitch. The cylinder has three outlets and a 0.813 in bore.
Which brake pedal and fluid signs can mean this master cylinder is worn?
A soft or sinking pedal, brake fluid leaking at the cylinder or a brake warning light can be signs. Brake problems affect stopping, so have them inspected promptly.
Are the rubber parts in this master cylinder resistant to brake fluid?
Yes. All rubber components are made of EPDM compound, which resists glycol-based brake fluid.
