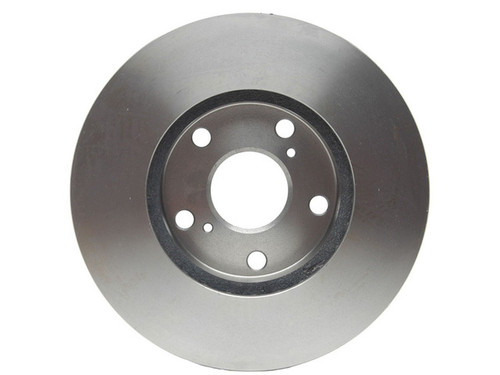

Built for smooth, dependable everyday stops, the Raybestos R-Line front Brake Rotor, part number 96754R, is a vented, cast iron rotor engineered for everyday driving conditions. It fits many vehicles, among them the 1992-2006 Toyota Camry, 1998-2003 Toyota Sienna and 1995-2004 Toyota Avalon, as a direct-fit front replacement. See the "Vehicles it fits" section for the full list.
- OE Fit, Form and Function: Developed from OE samples and made with G3000-qualified material for OE fit, form and function and dependable braking.
- SAE Standard: R-Line rotors meet the SAE standard for tensile strength, supporting structural integrity.
- Low Initial Lateral Runout and Thickness Variation: Small lateral runout and thickness variation help reduce pedal pulsation and brake noise and support extended pad life.
- Mill Balanced Edges: Each rotor is mill balanced and 100 percent validated, which helps minimize thickness variation for reduced vibration and smoother stopping.
Specifications: 10.825 in (274.95 mm) outside diameter, 1.1 in (27.95 mm) nominal thickness, 1.024 in (26 mm) discard thickness, 1.94 in (49.3 mm) overall height and a 2.45 in (62.25 mm) center hole. Five 0.566 in (14.4 mm) bolt holes sit on a 4.5 in (114.3 mm) bolt circle. A conventional rotor, not a drum-in-hat design, with a non-directional braking surface. ABS tone ring not included.
Signs a rotor may need replacing include pedal pulsation, vibration or noise while braking, deep scoring, or thickness below the discard spec. This rotor is sold individually and the listed applications use two, so replacing both front rotors together is recommended for even, balanced braking. Country of origin: China.
Frequently Asked Questions
Is this the right 1992-2006 Toyota Camry brake rotor?
It is listed as a front rotor for the 1992-2006 Toyota Camry. The "Vehicles it fits" section shows every listed application.
Does it also fit the 1998-2003 Toyota Sienna and 1995-2004 Toyota Avalon?
Yes. It is listed as a front rotor for the 1998-2003 Toyota Sienna and the 1995-2004 Toyota Avalon. The "Vehicles it fits" section shows every listed application.
What does a disc brake rotor do?
When you brake, the caliper presses the pads against the rotor's braking surfaces and turns wheel motion into heat to slow the vehicle. This one is a vented, conventional rotor.
What are the nominal and discard thickness specs?
Nominal thickness is 1.1 in (27.95 mm) and discard thickness is 1.024 in (26 mm). Replace the rotor if it measures below the discard spec.
Do I need to buy two rotors?
It is sold individually, and the listed applications use two. Replacing both front rotors together is recommended for even, balanced braking.
