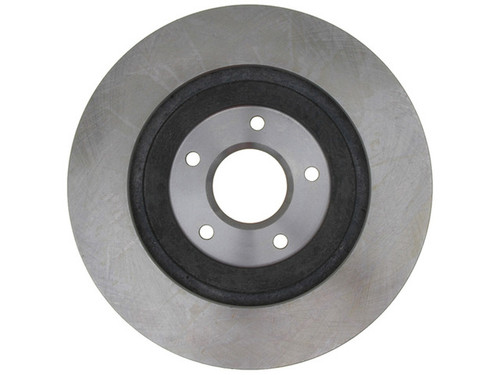

Raybestos Brakes Disc Brake Rotor 56494R - view 2
Raybestos Brakes Disc Brake Rotor 56494R - view 3
Raybestos Brakes Disc Brake Rotor 56494R
Raybestos Brakes Disc Brake Rotor 56494R - view 2
Raybestos Brakes Disc Brake Rotor 56494R - view 3

Front Left Brake Rotor for 1988-1996 Chevrolet Corvette - Raybestos 56494R

Be the first to review this product
$71.99
MPN: 56494R
UPC: 829352364253
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Raybestos Brakes Disc Brake Rotor P/N:56494R
Raybestos Brakes Disc Brake Rotor P/N:56494R
$71.99

Shopping for Corvette rotors? The Raybestos R-Line Disc Brake Rotor 56494R is a front-left, vented replacement developed for the 1988-1996 Chevrolet Corvette (All engines). Raybestos R-Line rotors are engineered for everyday driving conditions with broad coverage and a focus on dependable, quiet braking.

  • OE fit, form and function: developed from OE samples and made with G3000-qualified material for dependable braking.
  • SAE standard: meets the SAE standard for tensile strength for structural integrity and a maximum service life.
  • Low lateral runout and thickness variation: a small parameter lateral runout and thickness variation help reduce pedal pulsation and brake noise while extending pad life.
  • Mill balanced edges: mill balanced and 100 percent validated to help minimize thickness variation for reduced vibration and smoother stopping.

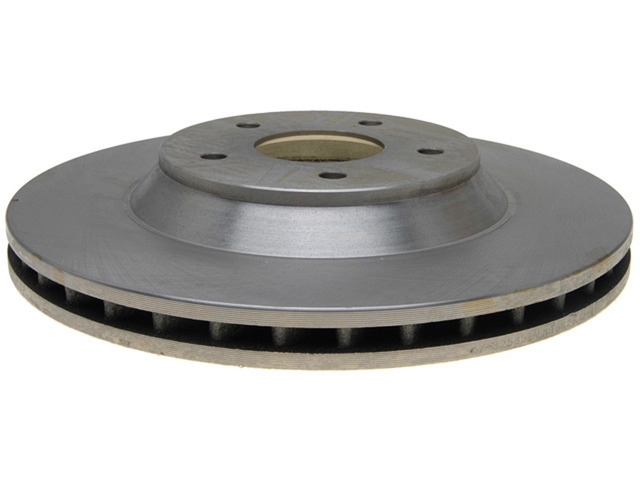

This conventional, vented rotor measures 13 in (330.2 mm) outside diameter with a 1.1 in (27.95 mm) nominal thickness, a 2.783 in (70.7 mm) center hole, a 4.75 in (120.65 mm) bolt circle and 5 mounting bolt holes. An ABS tone ring is not included. Sold individually; for even, balanced braking it is best practice to replace both front rotors as a matched pair. Country of origin: China.

Frequently Asked Questions

Will this rotor fit my Corvette?

It is cataloged for the 1988-1996 Chevrolet Corvette (All engines) in the front-left position. Confirm the fitment for your specific vehicle before ordering.

Is this a solid or vented rotor?

It is a conventional, vented rotor with internal cooling vanes, as listed in the catalog specifications.

Does it include an ABS tone ring?

No. Per the catalog, an ABS tone ring is not included with this rotor.

Do I need to replace both sides?

This listing is for one rotor, sold individually. For even, balanced braking it is best practice to replace both front rotors as a matched pair.

What is the discard thickness?

The discard (minimum) thickness is 1.039 in (26.4 mm), with a nominal thickness of 1.1 in (27.95 mm). Measure before reuse and machine within limits.
