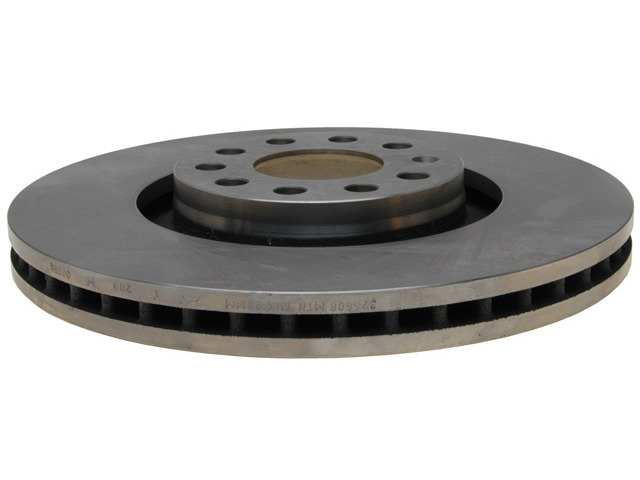

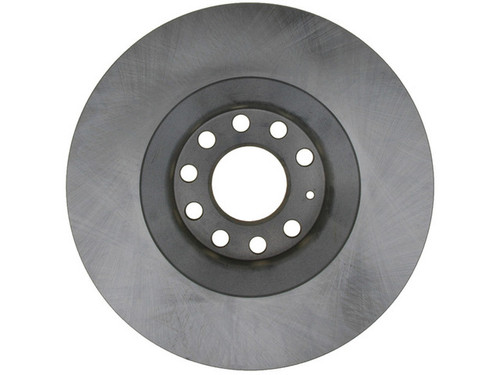

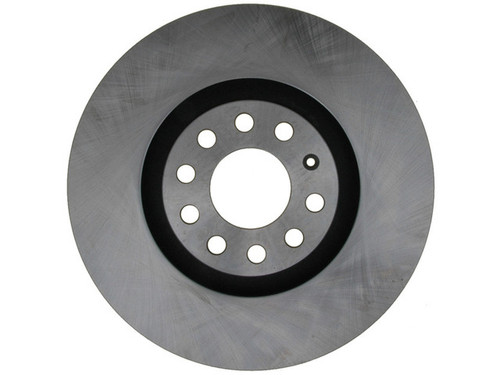

Keep front-axle braking smooth and quiet with the Raybestos R-Line Disc Brake Rotor 980499R, a vented front rotor engineered for everyday driving. It installs as a direct-fit front rotor for the 2000-2009 Audi A4, 2000-2001 and 2005-2009 Audi A4 Quattro, 1998-2004 Audi A6, 2000-2004 Audi A6 Quattro, 2001-2005 Audi Allroad Quattro, 2000-2002 Audi S4, and the 2011 Seat Exeo (all engines).
Key specs: 320 mm (12.598 in) outside diameter, 30 mm (1.181 in) nominal thickness, 28 mm (1.102 in) discard thickness, a 5-hole mounting pattern on a 112 mm (4.409 in) bolt circle, and a 68.1 mm (2.682 in) center hole. This is a conventional vented rotor; an ABS tone ring is not included. Sold individually (this listing is for one rotor); the front axle uses two, so order two and replace both sides together as a matched pair for even, balanced braking. Country of origin: China. Manufacturer part number 980499R.
What vehicles does this rotor fit?
It's a direct-fit front rotor for the 2000-2009 Audi A4, 2000-2001 & 2005-2009 A4 Quattro, 1998-2004 A6, 2000-2004 A6 Quattro, 2001-2005 Allroad Quattro, 2000-2002 S4, and 2011 Seat Exeo. See the Buyer's Guide tab for the full list.
Is this a front or rear rotor?
It's cataloged as a front-axle disc brake rotor. It's a conventional vented rotor with a 320 mm (12.598 in) outside diameter.
How many rotors should I order?
It's sold individually, so this listing is for one rotor. The front axle uses two, so order two and replace both sides together as a matched pair for even, balanced braking.
Does it include an ABS tone ring?
No. The catalog lists ABS Tone Ring Included: No, so transfer or source the tone ring separately if your vehicle requires one.
What is the discard thickness?
Nominal thickness is 30 mm (1.181 in) and the minimum discard thickness is 28 mm (1.102 in). Measure the rotor and replace it once it reaches the discard spec.
