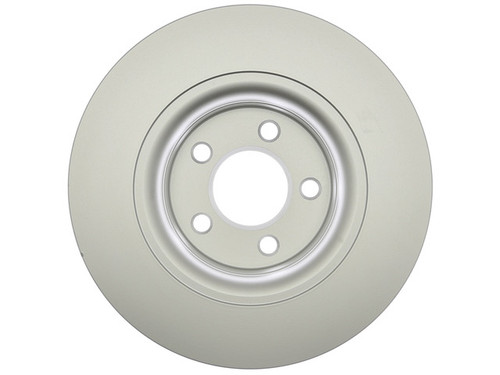

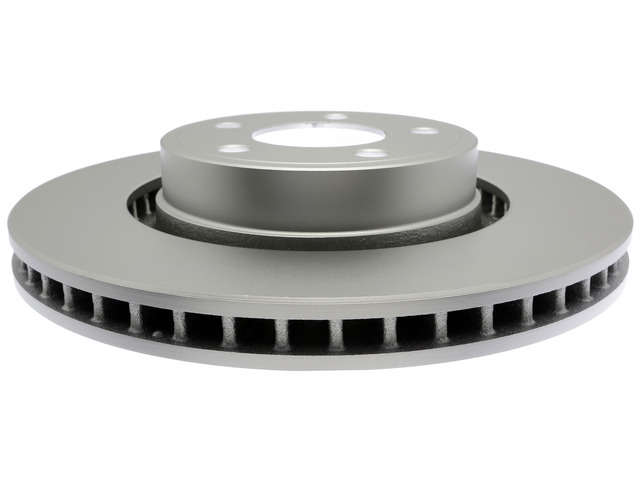

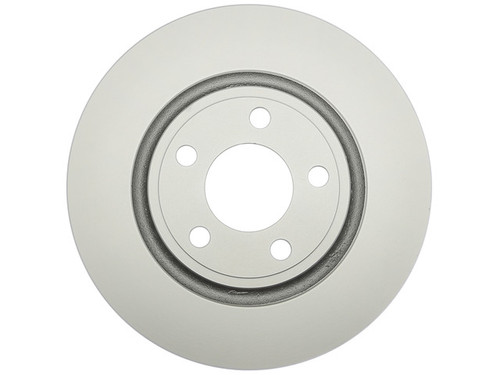

Front Brake Rotor for 2015-2020 Ford Mustang - Raybestos 681953

$118.99

Raybestos Brakes Disc Brake Rotor 681953

Raybestos Brakes Disc Brake Rotor 681953 - view 2

Raybestos Brakes Disc Brake Rotor 681953 - view 3

Part number: 681953

UPC: 887213192728

Condition: New

Weight: 1.78 LBS

Item Package Quantity: 1

$118.99

Current Stock: 15

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor P/N:681953

$118.99

Description

Raybestos Brakes 681953 front brake rotor for the 2015-2020 Ford Mustang gives the pads a coated, vented surface to clamp against when you slow the car.

Raybestos Specialty Street Performance coated rotor line
Application-specific enhanced iron that suppresses noise and helps keep brakes cool and vibration free
Fusion coating for rust prevention: black hat with Grey Fusion 4.0 on inboard surface and vanes, or Grey Fusion 4.0 on the whole rotor
Cooling vanes in a vented design for cooling and reduced fade
Turned finish to minimize noise and improve responsiveness for smoother stops

Quick facts

Part: Raybestos Brakes 681953 brake rotor
Also called: disc brake rotor
Fits: 2015-2020 Ford Mustang
Position: Front
Material: Enhanced iron
Condition: New

Pedal pulsation, grooves, rust ridges or cracks on a disc brake rotor can mean it is worn. During a brake service, measure its thickness and compare it with the discard thickness below. Noise or vibration can also come from the pads or other brake parts, so find the cause before replacing the rotor.

Fits

This rotor is a direct-fit replacement for the 2015-2020 Ford Mustang, which takes two. This listing is one rotor; the other side of the front axle is normally done at the same time.

Specifications

Fit and size

Position: Front
Quantity per vehicle: 2
Outside diameter: 320.15 mm (12.604 in)
Inside diameter: 204.4 mm (8.047 in)
Center hole diameter: 71 mm (2.795 in)
Bolt circle: 114.3 mm (4.5 in), 5 lug holes
Mounting bolt hole diameter: 15.8 mm (0.622 in)
Overall height: 62 mm (2.441 in)
Nominal thickness: 30 mm (1.181 in)
Discard thickness: 28.5 mm (1.122 in)

Build and materials

Type: Vented, conventional (not drum-in-hat)
Surface: Turned finish
Material: Enhanced iron
ABS tone ring: not included
Condition: New
Country of origin: China

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Are these 2015-2020 Ford Mustang rotors for the front or rear axle?

They are front rotors. Raybestos Brakes 681953 fits the 2015-2020 Ford Mustang and has a 320.15 mm outside diameter with 5 lug holes.

Is the Raybestos Brakes 681953 rotor vented or solid?

It is vented, with cooling vanes between the friction surfaces. Raybestos Brakes 681953 is a conventional rotor, not a drum-in-hat type.

Does this front rotor come with an ABS tone ring?

No. The ABS tone ring is not included with this rotor.

What discard thickness applies to this rotor?

The discard thickness is 28.5 mm (1.122 in), against a nominal thickness of 30 mm. A rotor measured at or below 28.5 mm is due for replacement.

What coating does this Raybestos performance rotor have?

It depends on the application. The rotor has either a black fusion coating on the hat with Grey Fusion 4.0 on the inboard surface and cooling vanes, or Grey Fusion 4.0 on the entire rotor.
