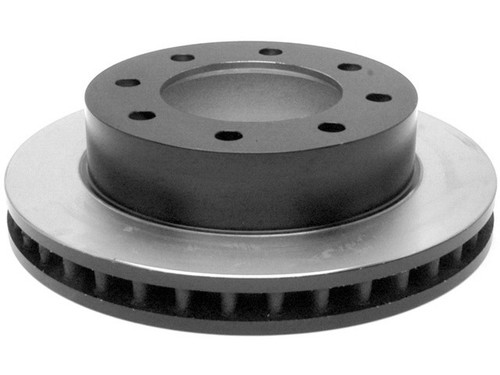

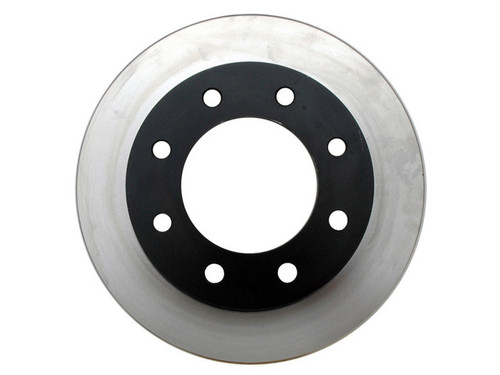

Raybestos Brakes 56829R front brake rotor for the 1999-2013 Chevrolet Silverado 2500 and other vehicles gives the brake pads a surface to clamp when slowing the wheel. This disc brake rotor is a conventional vented type, not a drum-in-hat design.
- Raybestos R-Line rotor engineered for everyday driving conditions
- G3000-qualified material for dependable braking
- Meets the SAE standard for tensile strength
- Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
- Mill balanced edges, 100 percent validated, to minimize vibration and give smoother stopping
Quick facts
- Part: Raybestos Brakes 56829R brake rotor
- Also called: disc brake rotor
- Fits: 1999-2013 Chevrolet Silverado 2500 and other vehicles
- Position: Front
- Material: Cast Iron
- Condition: New
A pulsing brake pedal, vibration or noise when braking, or a rotor worn down to 36.5 mm can mean it is time for new rotors. These signs alone do not prove the rotor is at fault; a sticking caliper can produce similar symptoms.
Fits
The vehicles it fits include the 1999-2013 Chevrolet Silverado 2500 and the 2001-2006 GMC Sierra 1500, and it is also the 2001-2007 Chevy Silverado 1500 brake rotor. Developed from OE samples, it is made for OE fit, form and function. If your vehicle is not named here, look up its year and model in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Outside diameter: 325 mm (12.795 in)
- Center hole diameter: 118.1 mm (4.65 in)
- Bolt circle: 165.1 mm (6.5 in), 8 lug holes
- Mounting bolt hole diameter: 16.15 mm (0.635 in)
- Overall height: 89.15 mm (3.51 in)
- Nominal thickness: 38.1 mm (1.5 in)
- Discard thickness: 36.5 mm (1.437 in)
Build and materials
- Type: vented, conventional
- Brake surface: non-directional
- Material: Cast Iron
- ABS tone ring: not included
- Condition: New
- Country of origin: China
In the box
One front brake rotor, sold individually. The vehicle takes two, so order two and replace them as a pair. The ABS tone ring is not included.
Frequently Asked Questions
Is this the right front rotor for 2001 Chevy Silverado 1500 brake pads and rotors in the 2001-2007 Chevrolet Silverado 1500?
Yes. Raybestos Brakes 56829R fits the 2001-2007 Chevrolet Silverado 1500. This listing is the rotor only; brake pads are sold separately.
Does the Raybestos 56829R rotor come with an ABS tone ring?
No. Raybestos Brakes 56829R is a single front rotor, and the ABS tone ring is not included.
How many lug holes and what bolt circle does this front rotor have?
This rotor has 8 lug holes on a 165.1 mm (6.5 in) bolt circle, with a 118.1 mm (4.65 in) center hole and a 325 mm (12.795 in) outside diameter.
At what thickness is this vented rotor worn out?
A new rotor is 38.1 mm (1.5 in) thick, and its discard thickness is 36.5 mm (1.437 in). Measure it cool with the wheel off as part of a brake service.
Do Raybestos R-Line rotors meet any standard?
Yes. Raybestos R-Line rotors like the 56829R meet the SAE standard for tensile strength and are made with G3000-qualified material.
