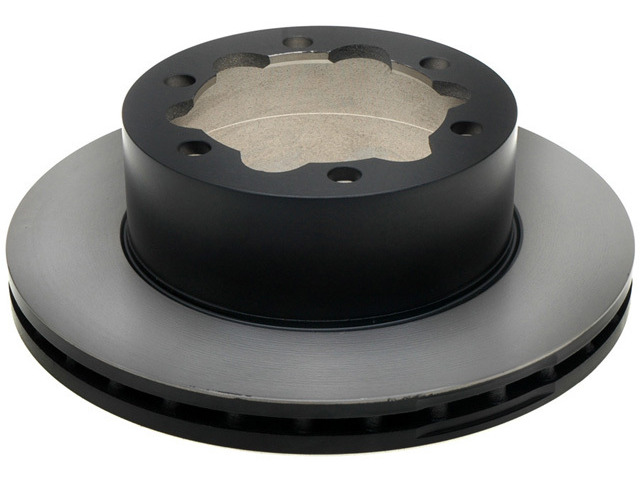

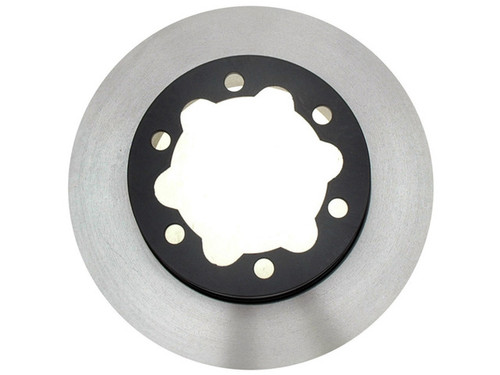

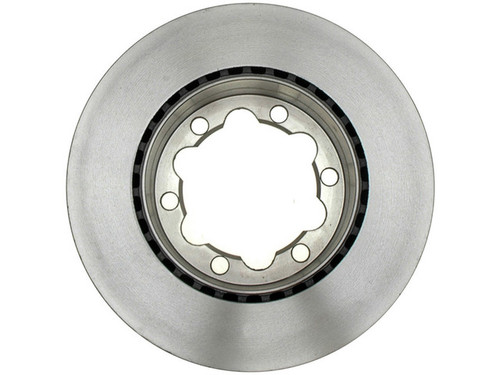

Rear Brake Rotor for 2010-2024 Mercedes-Benz Sprinter 3500 & More - Raybestos 780612

Help damp brake noise and give the pads a smooth surface for an effective stop right out of the box with the Raybestos Specialty Truck Disc Brake Rotor 780612. This rear drum-in-hat rotor matches OE fit, form, and function and fits many vehicles as a direct-fit replacement for the listed applications, including the 2007-2009 Dodge Sprinter 3500 and 2010-2024 Mercedes-Benz Sprinter 3500. See the Buyer's Guide tab for the full list.

• Cooling Vanes: Vehicle-specific cooling vane configurations are matched to OE designs to help provide optimal cooling, reduced fade, less noise, and increased pad life.
• Coating: Protected against the elements — coated with Grey Fusion 4.0® rated at 300 hours salt spray, or a Black Fusion painted hat and edge for rust protection.
• SAE Tensile Strength: Follows SAE standards for tensile strength, hardness, and iron grade for structural integrity.
• Turned Finish: Gives the pads a smooth surface to engage right out of the box for an effective stop.

The drum-in-hat design integrates a parking-brake drum into the rotor's hat. It measures 303 mm (11.929 in) outside diameter with a 120 mm center hole and a 27.95 mm nominal thickness (24.9 mm / 0.98 in discard thickness); the ABS tone ring is not included. The listed applications use two per axle, and replacing both sides together as a matched set is recommended for balanced braking. Sold individually. Country of origin: China.
