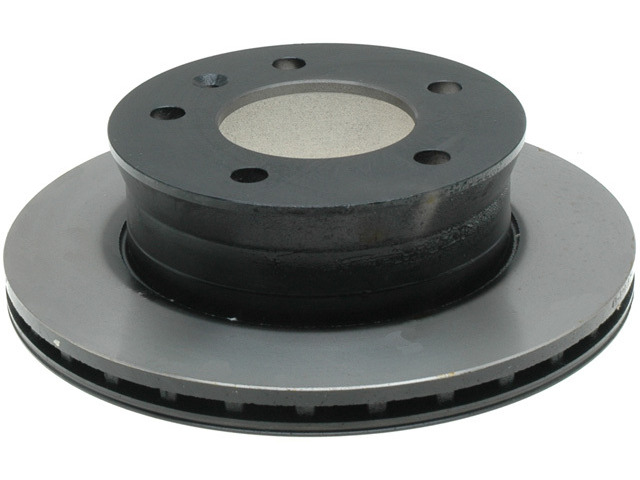

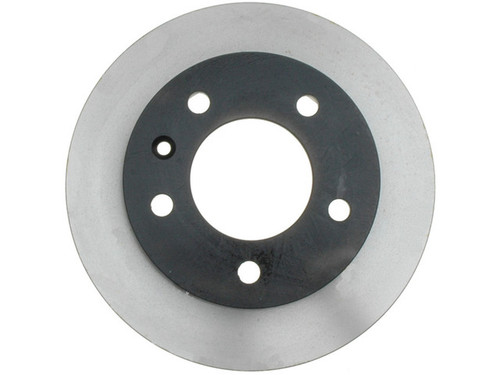

Bring quiet, fade-resistant braking to your Sprinter's front axle with the Raybestos Specialty Disc Brake Rotor 980157. This conventional vented front rotor installs as a direct-fit replacement for the 2003-2006 Dodge Sprinter 2500, 2003-2005 Dodge Sprinter 3500, 2004-2006 and 2002 Freightliner Sprinter 2500, 2002-2005 Freightliner Sprinter 3500, and 2007-2012 Mercedes-Benz Sprinter (All engines), where its vehicle-specific design matches OE fit, form, and function.
- Vehicle-specific cooling vanes: matched to the OE vane configuration for optimal cooling, reduced fade, less noise, and increased pad life.
- Corrosion coating: fully coated with Grey Fusion 4.0 rated at 300 hours salt spray, or a Black Fusion painted hat and edge for rust protection.
- SAE-standard iron: follows SAE standards for tensile strength, hardness, and iron grade for structural integrity and service life.
- Turned finish: provides an excellent surface for the pads to engage for a smooth, effective stop right out of the box.
Specs: 10.855 in (275.7 mm) outside diameter, 5 stud/lug holes on a 130 mm (5.118 in) bolt circle, 85 mm (3.347 in) center hole, 22 mm (0.866 in) nominal thickness, and 19 mm (0.748 in) discard thickness. An ABS tone ring is not included. The listed applications use two front rotors, so replacing both sides as a matched pair is recommended for even, balanced braking. Country of origin: China.
Interchange: Manufacturer part number 980157.
