Bring smooth, quiet front braking back to your Toyota Highlander with the Raybestos R-Line Disc Brake Rotor 980159R. It installs as a direct-fit front rotor for the 2001-2007 Toyota Highlander (All engines), engineered for everyday driving conditions.
- OE fit, form, and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE-standard strength: Meets the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low lateral runout and thickness variation: Held to a small runout and thickness-variation parameter to help reduce pedal pulsation and brake noise and support extended pad life.
- Mill-balanced and validated: Mill-balanced edges and 100% validation help minimize thickness variation for less vibration and smoother stops.

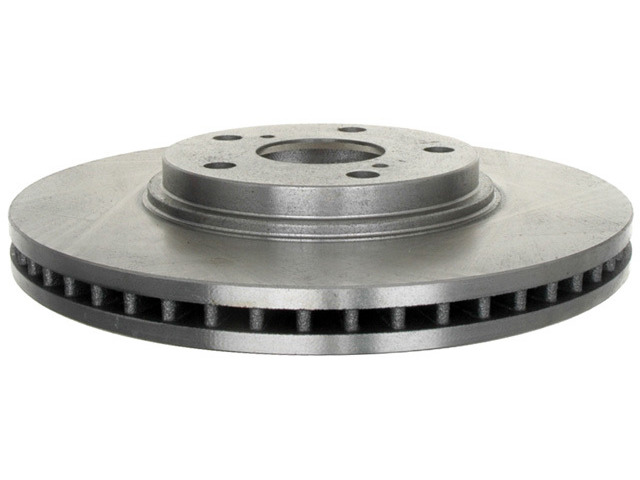

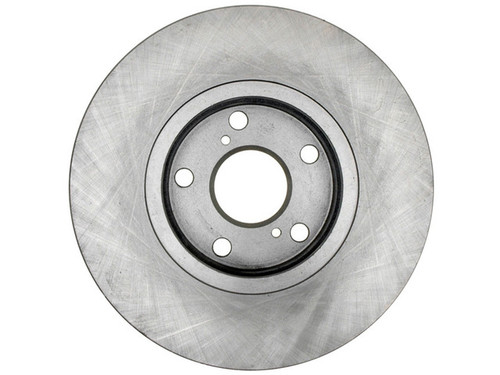

This is a vented, non-directional cast-iron front rotor measuring 11.65 in (295.9 mm) outside diameter with a 2.45 in (62.25 mm) center hole and 5 mounting bolt holes on a 4.5 in (114.3 mm) bolt circle. Nominal thickness is 1.102 in (28 mm); machine or discard at 1.024 in (26 mm). Sold individually — the front axle uses two, so replace both front rotors as a matched pair for even, balanced braking. Country of origin: China.
Manufacturer part number 980159R
Frequently Asked Questions
Will this rotor fit my vehicle?
It is a direct-fit front rotor for the 2001-2007 Toyota Highlander (All engines). Check the Buyer's Guide tab and confirm the fit for your exact vehicle.
Is this a front or rear rotor?
The catalog lists this as a front rotor for the applications shown.
How many rotors do I need?
It is sold individually. The front axle uses two, so ordering two and replacing both front rotors as a matched pair is recommended for even braking.
Is this rotor vented or solid?
It is a vented, conventional, non-directional cast-iron rotor.
What is the minimum (discard) thickness?
Nominal thickness is 1.102 in (28 mm), and the rotor should be machined or discarded at 1.024 in (26 mm).
