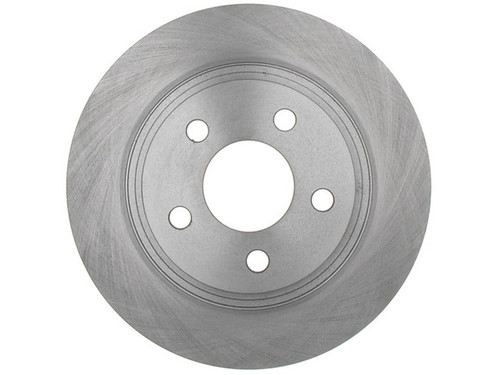

Raybestos Brakes Disc Brake Rotor P/N:56698R

Silence rear-brake pulsation and bring smooth, confident stops back to the rear axle with the Raybestos R-Line Disc Brake Rotor 56698R. This rear rotor is a direct-fit replacement for the 1998-2004 Cadillac Seville, 2000-2005 Cadillac DeVille, 2003-2005 Buick Park Avenue, and 2004-2005 Pontiac Bonneville (all engines), engineered by Raybestos for everyday driving with broad coverage.

• OE fit, form, and function: developed from OE samples and made with G3000-qualified material for dependable braking.
• Meets the SAE tensile-strength standard: for structural integrity and a maximum service life.
• Low lateral runout and thickness variation: for less pedal pulsation, less brake noise, and extended pad life.
• Mill-balanced edges, 100% validated: helps minimize thickness variation for reduced vibration and smoother stopping.

Built as a solid (non-vented), conventional rotor from cast iron, it measures 297.7 mm (11.72 in) outside diameter with a 70.85 mm center hole and 5 mounting holes on a 118 mm bolt circle. Nominal thickness is 11.05 mm (0.435 in), with a discard thickness of 9 mm (0.354 in). The non-directional braking surface installs on either side, and no ABS tone ring is included. Sold individually — for even, balanced braking, replace both rear rotors together as a matched pair. Country of origin: China.

Manufacturer part number 56698R.
