Raybestos Brakes Disc Brake Rotor 580023R
Raybestos Brakes Disc Brake Rotor 580023R - view 2
Raybestos Brakes Disc Brake Rotor 580023R - view 3
Raybestos Brakes Disc Brake Rotor 580023R
Raybestos Brakes Disc Brake Rotor 580023R - view 2
Raybestos Brakes Disc Brake Rotor 580023R - view 3

Raybestos Brakes Disc Brake Rotor P/N:580023R

Be the first to review this product
$108.99
MPN: 580023R
UPC: 829352364628
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Raybestos Brakes Disc Brake Rotor P/N:580023R
Raybestos Brakes Disc Brake Rotor P/N:580023R
$108.99

Bring smooth, quiet stops back to the front axle of your truck or SUV with the Raybestos R-Line Disc Brake Rotor 580023R. This front rotor drops in as a direct-fit replacement for the 2002-2006 Chevrolet TrailBlazer EXT, 2002-2006 GMC Envoy XL, 2003-2006 Chevrolet SSR, 2003-2006 Isuzu Ascender, 2004-2007 Buick Rainier, 2004-2005 GMC Envoy XUV, 2005-2009 GMC Envoy, 2005-2009 Saab 9-7X and 2006-2008 Chevrolet TrailBlazer.

  • OE fit, form and function: developed from OE samples and made with G3000-qualified cast iron for dependable braking.
  • SAE tensile strength: meets the SAE standard for tensile strength for structural integrity.
  • Low lateral runout and thickness variation: designed to help reduce pedal pulsation and brake noise while supporting extended pad life.
  • Mill-balanced edges, 100% validated: helps minimize thickness variation for less vibration and smoother stopping.

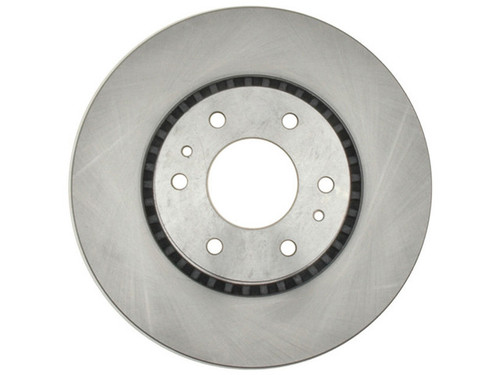

It is a vented rotor measuring 325 mm (12.795 in) outside diameter with a 79.25 mm (3.12 in) center hole and 6 stud/lug holes, a nominal thickness of 29 mm (1.142 in) and a discard thickness of 27.5 mm (1.083 in). The braking surface is non-directional, so it can mount on either side. An ABS tone ring is not included. Sold individually; replace both sides together as a matched pair for even, balanced braking. Manufacturer part number 580023R. Country of origin: China.

Frequently Asked Questions

Which vehicles does the 580023R fit?

It is a front rotor for 9 applications, including the 2002-2006 Chevrolet TrailBlazer EXT, 2004-2007 Buick Rainier, and 2005-2009 GMC Envoy and Saab 9-7X; see the Buyer's Guide tab for the full list.

Is this rotor vented or solid?

It is a vented conventional rotor, which uses internal air channels between the braking surfaces to help dissipate heat.

Does it include an ABS tone ring?

No. Per the catalog attributes, an ABS tone ring is not included with this rotor.

Do I need to replace both rotors?

They are sold individually, so this listing is for one rotor. Replacing both sides on the axle together as a matched pair is recommended for even, balanced braking.

What are the rotor's key dimensions?

It has a 325 mm (12.795 in) outside diameter, a 79.25 mm center hole, 6 stud/lug holes, a nominal thickness of 29 mm and a discard thickness of 27.5 mm (1.083 in).
