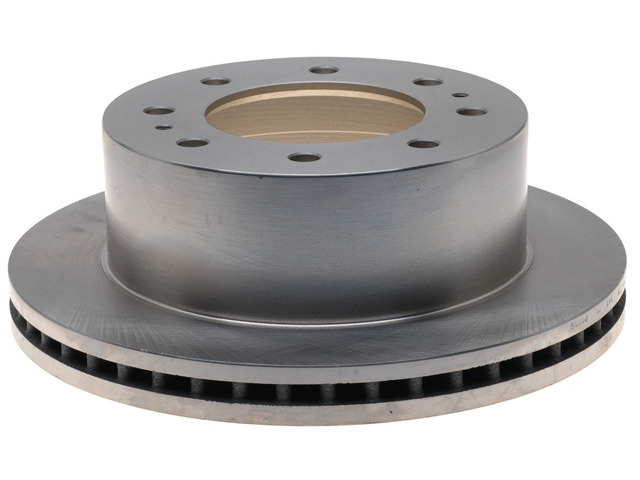

Raybestos Brakes 580876R rear brake rotor for the 2014-2018 Chevrolet Silverado 2500 and other vehicles gives the rear brake pads a surface to clamp against when you brake. This vented disc brake rotor is a drum-in-hat design with a smooth, non-directional surface.
- Raybestos R-Line series, engineered for everyday driving conditions
- Made with G3000-qualified material
- Meets the SAE standard for tensile strength
- Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
- Mill-balanced edges, 100 percent validated, to minimize thickness variation and vibration
Quick facts
- Part: Raybestos Brakes 580876R brake rotor
- Also called: disc brake rotor
- Fits: 2014-2018 Chevrolet Silverado 2500 and other vehicles
- Position: Rear
- Material: Cast Iron
- Condition: New
A pulsing brake pedal, vibration or noise when braking, or grooves and scoring on the rotor face can mean the rotor is worn. A sticking caliper or worn pads can be behind the same signs, so find the cause before buying.
Fits
The vehicles it fits include the 2014-2018 Chevrolet Silverado 2500, the 2011-2025 Chevrolet Silverado 2500 HD and the 2011-2025 Chevrolet Silverado 3500 HD. It was developed from OE samples for OE fit, form and function. This listing is one rotor, and the 2014-2018 Chevrolet Silverado 2500 takes two on its rear axle, so the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Outside diameter: 360 mm (14.173 in)
- Inside diameter: 261 mm (10.276 in)
- Center hole diameter: 127 mm (5 in)
- Bolt circle: 180 mm (7.087 in), 8 lug holes
- Mounting bolt hole diameter: 16.15 mm (0.636 in)
- Nominal thickness: 34 mm (1.339 in)
- Discard thickness: 32.5 mm (1.28 in)
- Overall height: 119 mm (4.685 in)
Build and materials
- Type: Vented, drum-in-hat
- Surface: Smooth, non-directional
- Material: Cast iron
- ABS tone ring: not included
- Condition: New
- Country of origin: China
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this the Chevy Silverado 2500 HD brake rotor for a 2011-2025 Chevrolet Silverado 2500 HD?
Yes. Raybestos Brakes 580876R is a rear brake rotor for the 2011-2025 Chevrolet Silverado 2500 HD. If your truck is not one of the named ones, look it up in the "Vehicles it fits" section.
What size is the Raybestos Brakes 580876R rotor?
Raybestos Brakes 580876R measures 360 mm (14.173 in) across with a 34 mm (1.339 in) nominal thickness. It has 8 lug holes on a 180 mm bolt circle and a 127 mm center hole.
What is the discard thickness of this rear rotor?
Discard thickness is 32.5 mm (1.28 in), against a nominal thickness of 34 mm. A rotor measured at or below that number is due for replacement.
Does this rear rotor come with an ABS tone ring?
No. This rotor does not include an ABS tone ring.
Is this rear rotor vented?
Yes. It is a vented, drum-in-hat rotor made of cast iron, with a smooth, non-directional braking surface.
