Raybestos Brakes Disc Brake Rotor P/N:66749R

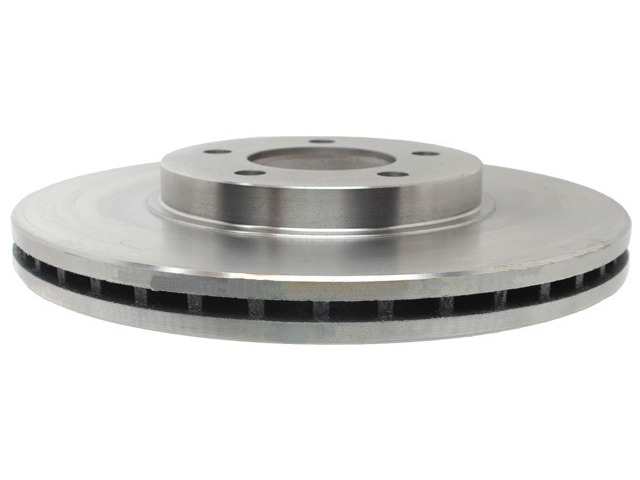

Built for everyday driving, the Raybestos R-Line front brake rotor, part number 66749R, is a vented cast-iron disc brake rotor developed from OE samples for OE fit, form and function. It fits many vehicles, among them the 2001-2007 Ford Taurus, 2006-2010 Chrysler Cirrus and 1996-1997 Ford Thunderbird. See the Buyer's Guide tab for the full list.

• OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
• SAE standard: R-Line rotors meet the SAE standard for tensile strength, which supports structural integrity.
• Low initial lateral runout and thickness variation: Lateral runout and thickness variation are kept small. This is designed to help reduce pedal pulsation and brake noise and to help extend pad life.
• Mill balanced edges: R-Line rotors are mill balanced and 100 percent validated. This helps minimize thickness variation on the rotor and is intended to reduce vibration for smoother stopping.

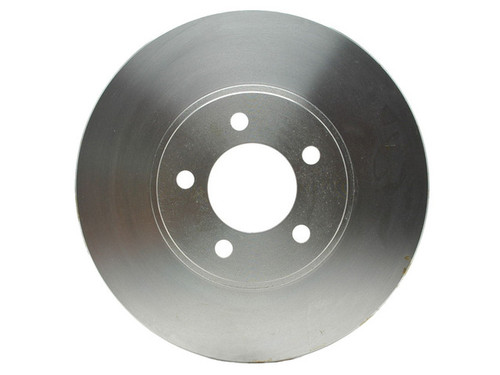

Specifications: 11.58 in (294.15 mm) outside diameter, 1.025 in (26.05 mm) nominal thickness, 0.974 in (24.75 mm) discard thickness, 1.83 in (46.5 mm) overall height, and a 2.8 in (71.1 mm) center hole. It has five 0.546 in (13.85 mm) bolt holes on a 4.25 in (107.95 mm) bolt circle. It is a conventional rotor, not a drum-in-hat design, with a non-directional braking surface. An ABS tone ring is not included. Country of origin: China.

Whether you are replacing a worn Ford Taurus brake rotor or servicing another listed vehicle, watch for these signs that a rotor may need replacing: pedal pulsation, grinding, scoring on the braking surface, or wear down to the discard thickness. The listed applications use two front rotors. This rotor is sold individually, and replacing both sides together is recommended for even, balanced braking.
