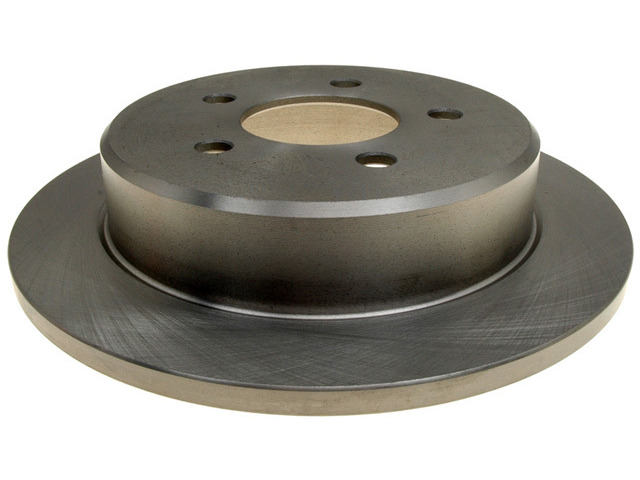

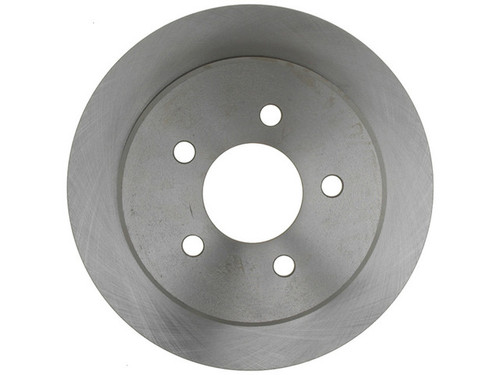

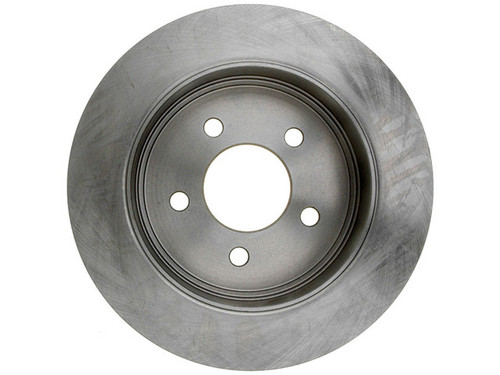

Restore smooth, quiet stops at the rear axle with the Raybestos R-Line Disc Brake Rotor (MPN 66565R). This vented, drum-in-hat rear rotor drops in as a direct-fit replacement for the 1995-2001 Ford Explorer [All], 2001-2002 Ford Explorer Sport [All], 2001-2002 Ford Explorer Sport Trac [All], 1998-2004 Ford Ranger [All], and 1997-2001 Mercury Mountaineer [All]. Developed from OE samples and made from G3000-qualified cast iron for OE fit, form, and function.
Specifications: 11.22 in (285 mm) outside diameter, 2.8 in (71.1 mm) center hole, 5 mounting bolt holes on a 4.5 in (114.3 mm) bolt circle, 2.3 in (58.4 mm) overall height, 0.475 in (12.05 mm) nominal thickness, and a 0.433 in (11 mm) discard thickness. The brake surface is non-directional. The ABS tone ring is not included. Country of origin: China. Sold individually; the listed applications use two per axle, so replace both rear sides as a matched pair for even, balanced braking.
Manufacturer part number 66565R.
Will this rotor fit my vehicle?
It's a rear direct-fit replacement for the 1995-2001 Ford Explorer, 2001-2002 Explorer Sport and Sport Trac, 1998-2004 Ford Ranger, and 1997-2001 Mercury Mountaineer (all engines). See the Buyer's Guide tab.
Is this a vented rotor?
Yes. It's a vented, drum-in-hat type rotor with internal cooling vanes and a non-directional brake surface, so it can be installed on either side of the axle.
Does it include an ABS tone ring?
No. The ABS tone ring is not included with this rotor; transfer or replace the correct component as directed by the vehicle service information.
Do I need to replace both rear rotors?
They're sold individually. Best practice is to replace both rear sides together as a matched pair for even, balanced braking; the listed applications use two per axle.
What are the key dimensions?
Outside diameter 11.22 in (285 mm), center hole 2.8 in (71.1 mm), 5 bolt holes on a 4.5 in (114.3 mm) circle, nominal thickness 0.475 in (12.05 mm), discard thickness 0.433 in (11 mm).
