Front Brake Rotor for 2012-2020 Jeep Grand Cherokee & More - Raybestos 780960R

Be the first to review this product
$183.99
MPN: 780960R
UPC: 887213014563
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert

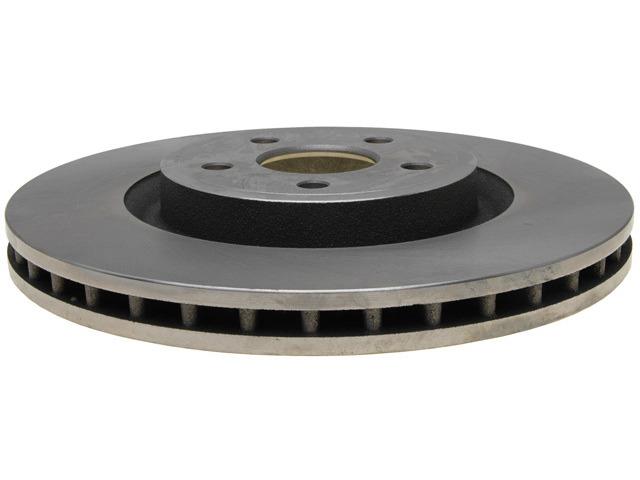

Raybestos Brakes Disc Brake Rotor P/N:780960R
Raybestos Brakes Disc Brake Rotor P/N:780960R
$183.99

Raybestos Brakes 780960R front brake rotor for the 2012-2020 Jeep Grand Cherokee and other vehicles gives the brake pads a flat surface to clamp against, which slows the wheel.

  • Raybestos R-Line series, engineered for everyday driving conditions
  • Made with G3000-qualified material
  • Meets the SAE standard for tensile strength
  • Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
  • Mill-balanced edges, 100 percent validated, to minimize thickness variation and vibration

Quick facts

  • Part: Raybestos Brakes 780960R brake rotor
  • Also called: disc brake rotor
  • Fits: 2012-2020 Jeep Grand Cherokee and other vehicles
  • Position: Front
  • Condition: New

A worn disc brake rotor can show up as pedal pulsation, brake noise or visible grooves. These signs alone do not prove the rotor is the problem, since a sticking caliper can cause them too.

Fits

It fits the 2012-2020 Jeep Grand Cherokee and the 2017-2020 Dodge Durango, and it is developed from OE samples for OE fit, form and function. Each vehicle takes two, one on each side of the front axle. This listing is a single rotor, so order two and fit them together.

Specifications

Fit and size

  • Position: Front
  • Quantity per vehicle: 2
  • Outside diameter: 380 mm (14.961 in)
  • Inside diameter: 242.2 mm (9.535 in)
  • Center hole diameter: 72 mm (2.835 in)
  • Bolt circle: 127 mm (5 in), 5 lug holes
  • Mounting bolt hole diameter: 17.1 mm (0.673 in)
  • Overall height: 54.6 mm (2.15 in)
  • Nominal thickness: 34 mm (1.339 in)
  • Discard thickness: 32 mm (1.26 in)

Build and materials

  • Type: Vented, conventional
  • Surface: Smooth
  • ABS tone ring: not included
  • Condition: New
  • Country of origin: China

Frequently Asked Questions

Are these rotors right for the 2012-2020 Jeep Grand Cherokee?

Yes. Raybestos Brakes 780960R is a front brake rotor for the 2012-2020 Jeep Grand Cherokee. The vehicle takes two, one on each side of the front axle.

Is this a brake rotor for the 2017-2020 Dodge Durango?

Yes. This front rotor fits the 2017-2020 Dodge Durango, which takes two. This listing is one rotor, so order two.

Is the Raybestos Brakes 780960R rotor vented or solid?

It is vented, with a smooth surface and a conventional design. It measures 380 mm across and 34 mm thick when new.

At what thickness is this front rotor worn out?

The discard thickness is 32 mm, against a nominal thickness of 34 mm. With the wheel off during a brake service, a measurement at or below 32 mm means it needs replacing.

Does this rotor come with an ABS tone ring?

No. The ABS tone ring is not included with Raybestos Brakes 780960R, which is a vented front rotor with a smooth surface.
