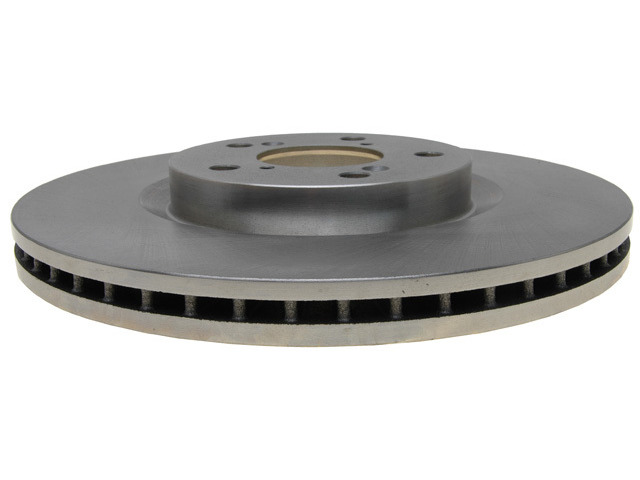

Raybestos Brakes Disc Brake Rotor 980566R

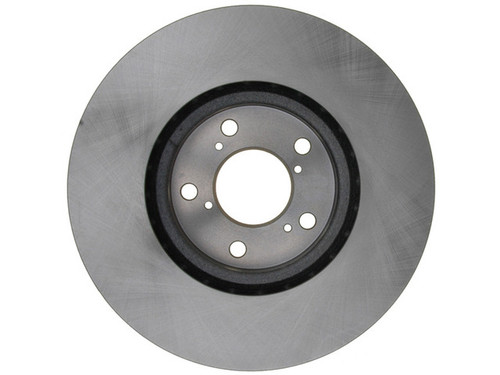

Raybestos Brakes Disc Brake Rotor 980566R - view 2

Raybestos Brakes Disc Brake Rotor 980566R - view 3

Raybestos Brakes Disc Brake Rotor P/N:980566R

Be the first to review this product

$111.99

MPN: 980566R

UPC: 887213004786

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor P/N:980566R

$111.99

Description

Bring smooth, quiet stops back to the front axle with the Raybestos R-Line Disc Brake Rotor 980566R. Developed from OE samples for OE fit, form, and function, it installs as a direct-fit front rotor for the 2007-2013 Acura MDX, 2014-2020 Acura RLX, 2010-2013 Acura ZDX, and 2009-2015 Honda Pilot (All engines), with two used per front axle.

OE fit, form & function: developed from OE samples and made with G3000-qualified material for dependable braking.
Meets the SAE tensile-strength standard: engineered for structural integrity and a long service life.
Low lateral runout & thickness variation: helps deliver less pedal pulsation, less brake noise, and extended pad life.
Mill-balanced edges, 100% validated: minimizes thickness variation for reduced vibration and smoother stopping.

This is a conventional vented cast-iron rotor measuring 12.984 in (329.8 mm) outside diameter, with 5 lug holes and a non-directional brake surface that installs on either side. An ABS tone ring is not included. Discard (minimum) thickness is 1.024 in (26 mm) from a nominal 1.102 in (28 mm). Sold individually; the front axle uses two, so order 2 and replace both sides together as a matched set for even, balanced braking. Country of origin: China. Manufacturer part number 980566R.

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

Frequently Asked Questions

Will this rotor fit my vehicle?

It's a front direct-fit for the 2007-2013 Acura MDX, 2014-2020 Acura RLX, 2010-2013 Acura ZDX, and 2009-2015 Honda Pilot (All engines). Check the Buyer's Guide tab to confirm your vehicle.

Is this a solid or vented rotor?

It's a conventional vented cast-iron rotor with internal cooling vanes, measuring 12.984 in (329.8 mm) outside diameter with 5 lug holes and a non-directional brake surface.

Does it include an ABS tone ring?

No. This rotor does not include an ABS tone ring. Transfer or replace related components as directed by the vehicle service procedure.

How many rotors should I order?

Rotors are sold individually and this listing is for one. The front axle uses two, so order 2 and replace both sides together as a matched set for balanced braking.

What is the discard thickness?

The discard (minimum) thickness is 1.024 in (26 mm), from a nominal thickness of 1.102 in (28 mm). Measure the rotor and replace it once it reaches the discard limit.
