Rear Brake Rotor for 2012-2014 Ford F-150 & More - Raybestos 680977R

$110.99

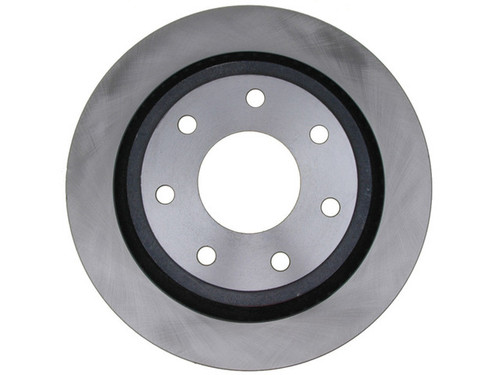

Raybestos Brakes Disc Brake Rotor 680977R

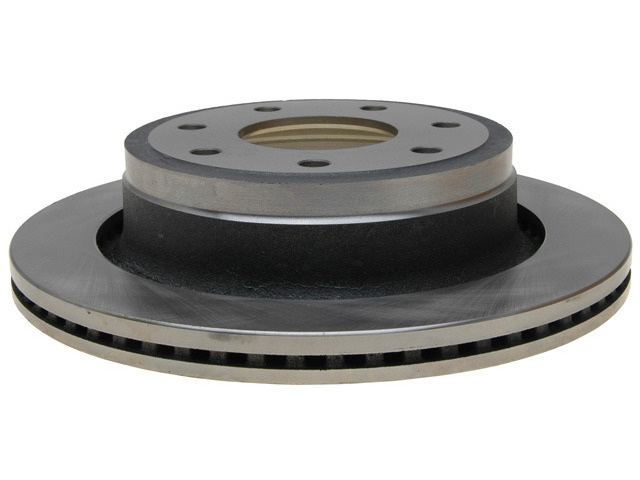

Raybestos Brakes Disc Brake Rotor 680977R - view 2

Raybestos Brakes Disc Brake Rotor 680977R - view 3

Part number: 680977R

UPC: 887213023985

Condition: New

Weight: 6.46 LBS

Item Package Quantity: 1

$110.99

Current Stock: 14

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor P/N:680977R

$110.99

Description

Raybestos Brakes 680977R rear brake rotor for the 2012-2014 Ford F-150 and other vehicles slows a rear wheel when the brake pads clamp onto it.

Raybestos R-Line series rotor engineered for everyday driving conditions
Made with G3000-qualified material for dependable braking
Meets the SAE standard for tensile strength, for structural integrity and maximum service life
Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
Mill balanced edges, 100 percent validated, to minimize thickness variation and vibration for smoother stopping

Quick facts

Part: Raybestos Brakes 680977R brake rotor
Also called: disc brake rotor
Fits: 2012-2014 Ford F-150 and other vehicles
Position: Rear
Condition: New

Pedal pulsation or vibration while braking can point to a worn rotor, and deep grooves in the friction surface are another sign. A sticking caliper or worn brake pads can be behind these signs too, so track down the cause before buying.

Fits

It fits the 2012-2014 Ford F-150 and the 2012-2014 Ford Lobo, developed from OE samples for OE fit, form and function. This listing is a single rotor. Both vehicles take two, one on each side of the rear axle, so order two and fit them together.

Specifications

Fit and size

Position: Rear
Quantity per vehicle: 2
Outside diameter: 348.1 mm (13.705 in)
Inside diameter: 258.6 mm (10.181 in)
Center hole diameter: 90.1 mm (3.547 in)
Bolt circle: 150 mm (5.906 in), 7 lug holes
Mounting bolt hole diameter: 15.7 mm (0.618 in)
Overall height: 79.8 mm (3.142 in)
Nominal thickness: 25 mm (0.984 in)
Discard thickness: 23 mm (0.906 in)

Build and materials

Type: Vented, drum-in-hat
Surface: Smooth
ABS tone ring: not included
Condition: New
Country of origin: China

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Is the 680977R one of the 2012-2014 Ford F-150 brake rotors for the rear axle?

Yes. Raybestos Brakes 680977R is a rear brake rotor for the 2012-2014 Ford F-150, and it also fits the 2012-2014 Ford Lobo.

Is this disc brake rotor vented or solid?

Vented. This rear rotor is a vented, drum-in-hat design with a smooth surface and a 348.1 mm (13.705 in) outside diameter.

What bolt pattern does the Raybestos 680977R rotor have?

Raybestos Brakes 680977R has 7 lug holes on a 150 mm (5.906 in) bolt circle, with a 90.1 mm (3.547 in) center hole.

Does this rear rotor come with an ABS tone ring?

No. This rotor does not include an ABS tone ring.

At what thickness should the 680977R rotor be replaced?

Raybestos Brakes 680977R has a discard thickness of 23 mm (0.906 in) and is 25 mm (0.984 in) thick new. A rotor measured at or below 23 mm is due for replacement.
