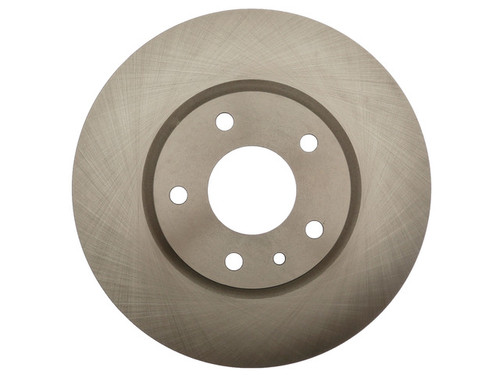

Built for everyday driving, the Raybestos R-Line 981011R is a front brake rotor for the 2014-2016 Mazda 6 that is also a direct-fit replacement for the 2013-2015 and 2017 Mazda CX-5. It fits all engines on these applications. This vented, cast iron disc brake rotor mounts on the front axle of the listed applications.
- OE fit, form and function: developed from OE samples and made with G3000-qualified material for OE fit, form and function and dependable braking.
- SAE standard: meets the SAE standard for tensile strength, supporting structural integrity.
- Low initial lateral runout and thickness variation: tight lateral runout and thickness variation are designed to help reduce pedal pulsation and brake noise and to extend pad life.
- Mill balanced: mill balanced and 100 percent validated, which helps keep thickness variation low for reduced vibration and smoother stops.
Specifications: 11.681 in (296.7 mm) outside diameter, 1.1 in (27.95 mm) nominal thickness, 1.024 in (26 mm) discard thickness, 2.04 in (51.8 mm) overall height, 2.68 in (68.05 mm) center hole, 5 lug holes on a 4.51 in (114.55 mm) bolt circle, and 0.516 in (13.1 mm) mounting bolt holes. It is a conventional rotor with a smooth, non-directional braking surface. The ABS tone ring is not included.
The listed applications use two front rotors. This listing is for one rotor, and replacing both sides together as a matched pair is recommended for even, balanced braking. Country of origin: China.
