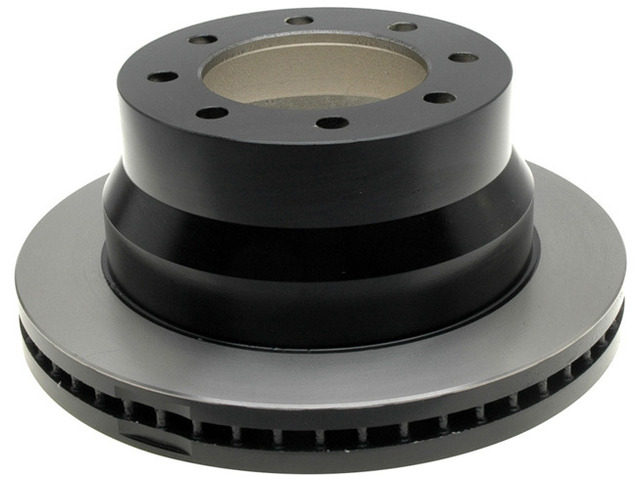

Raybestos Brakes 580687 rear brake rotor for the 2009-2020 Chevrolet Express 3500 and other vehicles gives the brake pads a smooth turned surface to clamp against when you slow down. Raybestos Specialty rotors are aimed at noise-prone truck, medium-duty and air-disc applications.
- Raybestos Specialty line: application-specific iron and vehicle-specific vanes damp noise, extend service life and speed up brake jobs
- Vented design with cooling vanes matched to the vehicle for cooling, reduced fade, less noise and longer pad life
- Grey Fusion 4.0 coating rated at 300 hours of salt spray, or a Black Fusion painted hat and edge, for rust protection
- Rotor iron grade, hardness and tensile strength follow SAE standards
- Turned finish gives the pads a surface to engage for a smooth stop right out of the box
Quick facts
- Part: Raybestos Brakes 580687 brake rotor
- Also called: disc brake rotor
- Fits: 2009-2020 Chevrolet Express 3500 and other vehicles
- Position: Rear
- Material: Cast Iron
- Condition: New
A pulsing brake pedal, a squeal or grinding from the rear, or visible grooves in the surface can mean the rotor is worn. Sticking calipers or worn pads can be behind those signs too, so find the cause before you buy. This listing is one rotor, and both rear sides are normally replaced together; the 2009-2020 Chevrolet Express 3500 takes two.
Fits
The 2009-2020 Chevrolet Express 3500, the 2009-2020 Chevrolet Express 4500 and the 2009-2020 GMC Savana 3500 all take this rotor, and so do other vehicles. Its vehicle-specific design matches OE fit, form and function. If your truck is not named here, look it up on the Buyer's Guide tab.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Outside diameter: 345 mm (13.583 in)
- Inside diameter: 246 mm (9.685 in)
- Center hole diameter: 123.2 mm (4.85 in)
- Bolt circle: 165.1 mm (6.5 in), 8 lug holes
- Bolt hole diameter: 16.4 mm (0.645 in)
- Nominal thickness: 40 mm (1.575 in)
- Discard thickness: 38 mm (1.496 in)
- Overall height: 146.3 mm (5.76 in)
Build and materials
- Type: vented, drum-in-hat
- Surface: smooth, non-directional
- Material: cast iron
- Coating: Grey Fusion 4.0 or Black Fusion painted hat and edge
- ABS tone ring: not included
- Condition: New
- Country of origin: China
