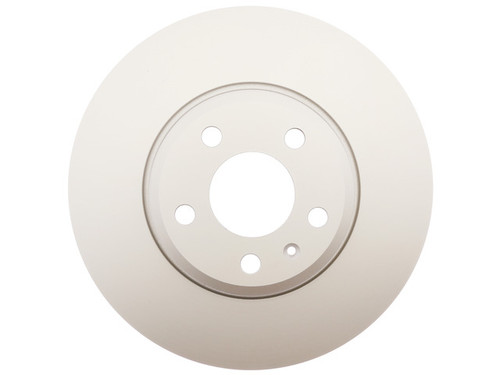

Front Brake Rotor for 2017-2025 Audi A4 Allroad & More - Raybestos 981620

$141.99

Vehicles this part fits

    Part number: 981620
    UPC: 887213331943
    Condition: New
    Weight: 5.00 LBS
    Item Package Quantity: 1
    $141.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Rotor P/N:981620
    Raybestos Brakes Disc Brake Rotor P/N:981620
    $141.99
    $141.99

    Raybestos Brakes 981620 front brake rotor for the 2017-2025 Audi A4 Allroad and other vehicles is the disc the brake pads clamp to slow the wheel. It is a coated rotor from the Raybestos Specialty Street Performance line.

    • Enhanced iron that suppresses noise and keeps brakes running cool, quiet and vibration free
    • Cooling vanes for cooling and reduced fade
    • Coating by application: black fusion on the hat, Grey Fusion 4.0 on the whole rotor, or black hat with Grey Fusion 4.0 on the inboard face and vanes
    • Turned finish to minimize noise and improve responsiveness for smoother stops
    • Patented S-Groove slot on some applications

    Quick facts

    • Part: Raybestos Brakes 981620 brake rotor
    • Also called: disc brake rotor
    • Fits: 2017-2025 Audi A4 Allroad and other vehicles
    • Position: Front
    • Material: Enhanced iron
    • Condition: New

    A pulsing brake pedal, grooves in the rotor face or squealing can mean a worn rotor. Those signs alone do not prove the rotor is at fault; a sticking caliper is another common cause. Front rotors are normally replaced as a pair; this listing is one rotor, and the 2017-2025 Audi A4 Allroad takes two.

    Fits

    This rotor is listed for a wide range of Audi and Volkswagen models, led by the 2017-2025 Audi A4 Allroad, the 2017-2025 Audi A4 Quattro and the 2018-2025 Audi A5 Sportback. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 314 mm (12.362 in)
    • Center hole diameter: 68 mm (2.677 in)
    • Overall height: 52.25 mm (2.057 in)
    • Nominal thickness: 25 mm (0.984 in)
    • Discard thickness: 23 mm (0.906 in)

    Build and materials

    • Type: Conventional
    • Material: Enhanced iron
    • Surface: Turned finish
    • ABS tone ring: not included
    • Condition: New
    • Country of origin: China

    Interchange: 09.A820.11 · 09.A820.1S · 121.33154 · 121.99084 · 125.33154 · 227.99084L · 227.99084R · 604-73086 · 1407-292186 · 1407-653439 · 1427-690538
    YH653439P · 8K0615301 · 8W0615301G · BR901534 · 15727 · 47077 · 8W0615301T · 8WD615301 · 6620985

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    YH653439P, 8K0615301, 8W0615301G, 09.A820.11, 09.A820.1S, 121.33154, 121.99084, 125.33154, 227.99084L, 227.99084R, BR901534, 604-73086, 15727, 47077, 8W0615301T, 8WD615301, 1407-292186, 1407-653439, 1427-690538, 6620985

    Frequently Asked Questions

    Is the 981620 an Audi A5 Sportback rotor for the 2018-2025 model years?

    Yes, Raybestos Brakes 981620 is listed as a front rotor for the 2018-2025 Audi A5 Sportback, which takes two. Open the "Vehicles it fits" section to check your exact model and engine.

    How do I know when this front brake rotor is worn out?

    Grooves in the rotor face or a pulsing pedal can mean wear. Raybestos Brakes 981620 has a 23 mm discard thickness, so a shop can measure it against that.

    Does the 981620 disc brake rotor come with an ABS tone ring?

    No. The ABS tone ring is not included with this rotor.

    Which coating will my Raybestos Performance rotor have?

    It depends on the application: black fusion on the hat, Grey Fusion 4.0 on the entire rotor, or black on the hat with Grey Fusion 4.0 on the inboard surface and cooling vanes.

    Do the cooling vanes on this front rotor help with fade?

    Yes. The cooling vanes on this rotor match OE configurations and are there for cooling and reduced fade.
