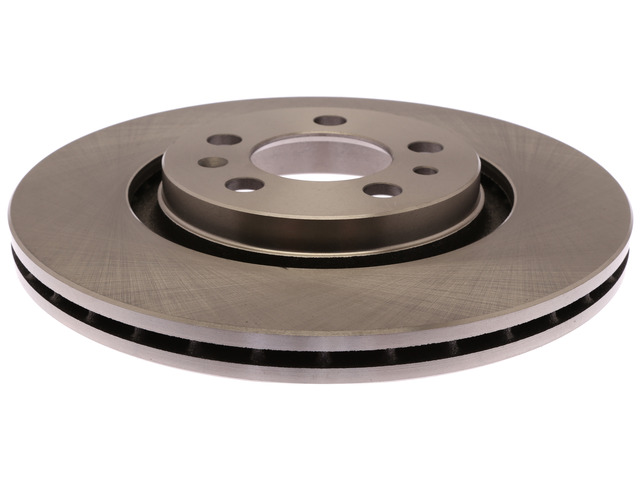

Built for dependable everyday braking, the Raybestos Brakes R-Line front brake rotor, part number 96778R, is a vented cast iron rotor engineered for everyday driving conditions. It fits many vehicles, among them the 1999-2010 Volkswagen Jetta, 1999-2006 Volkswagen Golf and 2011-2015 Volkswagen Clasico, specifically versions built with an 11.02 in (279.9 mm) front rotor and a 5-lug, 3.93 in (99.8 mm) bolt circle. Vehicles fitted with larger-diameter front brakes or a different bolt pattern need a different rotor. See the Buyer's Guide tab for the full list.
Specifications: vented, conventional (not drum-in-hat) design with a non-directional braking surface; 0.865 in (21.95 mm) nominal thickness; 0.748 in (19 mm) discard thickness; 1.435 in (36.45 mm) overall height; 2.56 in (65 mm) center hole; five 0.625 in (15.9 mm) mounting bolt holes. ABS tone ring not included. Country of origin: China.
The listed applications use two front rotors. This disc brake rotor is sold individually, and replacing both sides together as a matched pair is recommended for even, balanced braking.
Are these the right VW Jetta rotors for a 1999-2010 Volkswagen Jetta?
They are listed for the 1999-2010 Volkswagen Jetta when it uses an 11.02 in (279.9 mm) front rotor with a 5-lug, 3.93 in (99.8 mm) bolt circle. Check your vehicle in the Buyer's Guide tab.
Will it fit a 1999-2006 Volkswagen Golf or 2011-2015 Volkswagen Clasico?
Yes, for versions that use the 11.02 in front rotor with a 3.93 in bolt circle. Models with larger front brakes need a different rotor, and the Buyer's Guide tab lists every application.
What does a front brake rotor do?
It is the disc the brake pads clamp against. That friction turns the vehicle's motion into heat to slow it, and this vented rotor has internal air passages that help shed that heat.
What are signs this rotor may need replacing?
Common signs include pedal pulsation, vibration or noise while braking, deep grooves or scoring, or a rotor worn to or below its 0.748 in (19 mm) discard thickness.
Is an ABS tone ring included, and how many rotors do I need?
No ABS tone ring is included. The rotor is sold individually, the listed applications use two, and replacing both sides together is recommended.
