Front Brake Rotor for 2012-2018 Ford Focus & More - Raybestos 680930R

$86.99

Vehicles this part fits

    Part number: 680930R
    UPC: 829352879610
    Condition: New
    Weight: 3.44 LBS
    Item Package Quantity: 1
    $86.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Rotor P/N:680930R
    Raybestos Brakes Disc Brake Rotor P/N:680930R
    $86.99
    $86.99

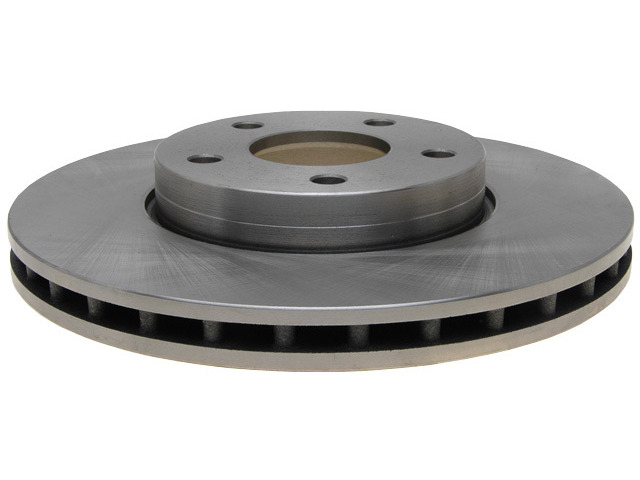

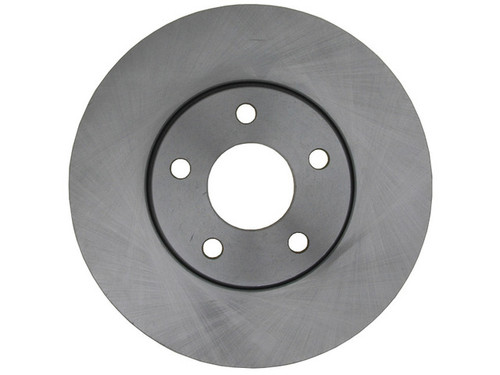

    The Raybestos Brakes 680930R front brake rotor for the 2012-2018 Ford Focus and other vehicles gives the front pads a vented cast-iron disc to clamp against when you press the brake pedal.

    • Part of the Raybestos R-Line, engineered for everyday driving conditions
    • Developed from OE samples and made with G3000-qualified material for OE fit, form and function
    • Meets the SAE standard for tensile strength, which gives it structural integrity
    • Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and extended pad life
    • Mill balanced and 100 percent validated, which helps minimize thickness variation for less vibration and smoother stopping

    A pulsing brake pedal, a shake through the steering wheel when you slow down, or deep grooves worn into the braking face can mean the front rotors are due for replacement. Those signs alone don't prove the rotor is at fault, since worn suspension or steering parts can also shake the wheel under braking. The front axle takes two, one on each side, and this listing is a single rotor, so order two and fit them together.

    This rotor is listed for a wide range of Ford and Volvo models. It is a direct-fit replacement for the front 2012-2018 Ford Focus brake rotors and also fits the 2013-2018 Ford C-MAX and the 2012-2013 Volvo C30.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per vehicle: 2
    • Outside diameter: 278 mm (10.945 in)
    • Inside diameter: 158.7 mm (6.248 in)
    • Center hole diameter: 63.5 mm (2.5 in)
    • Bolt circle: 108 mm (4.252 in), 5 lug holes
    • Mounting bolt hole diameter: 13.7 mm (0.54 in)
    • Nominal thickness: 25.15 mm (0.99 in)
    • Discard thickness: 23 mm (0.906 in)
    • Overall height: 48.6 mm (1.913 in)

    Build and materials

    • Type: Vented, conventional
    • Material: Cast iron
    • Braking surface: Smooth, non-directional
    • ABS tone ring: not included
    • Country of origin: China

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Will the Raybestos 680930R work as Ford Focus rotors for the 2012-2018 model years, including a 2012 or 2013?

    Yes. The Raybestos 680930R is a front brake rotor for the 2012-2018 Ford Focus, so 2012 and 2013 cars are covered along with the rest of that range.

    Can I use these as Volvo C30 brake rotors on a 2012-2013 model, or on a 2013-2018 Ford C-MAX?

    Yes. The Raybestos 680930R fits the front of the 2012-2013 Volvo C30 and the 2013-2018 Ford C-MAX; if you drive another Ford or Volvo, look up your own car in the "Vehicles it fits" section.

    What size is the Raybestos 680930R rotor across and at the bolt circle?

    The Raybestos 680930R measures 278 mm (10.945 in) across, with a 108 mm (4.252 in) bolt circle, 5 lug holes and a 25.15 mm (0.99 in) nominal thickness.

    How can I tell this vented front disc brake rotor is worn out?

    A pulsing pedal, steering-wheel shake under braking or deep grooves on the face can mean this front rotor is worn, and one measuring under 23 mm (0.906 in) at a brake service is past its discard thickness.

    Does this R-Line rotor come with an ABS tone ring?

    No. This R-Line rotor does not include an ABS tone ring; the listing is one vented cast-iron front rotor.
