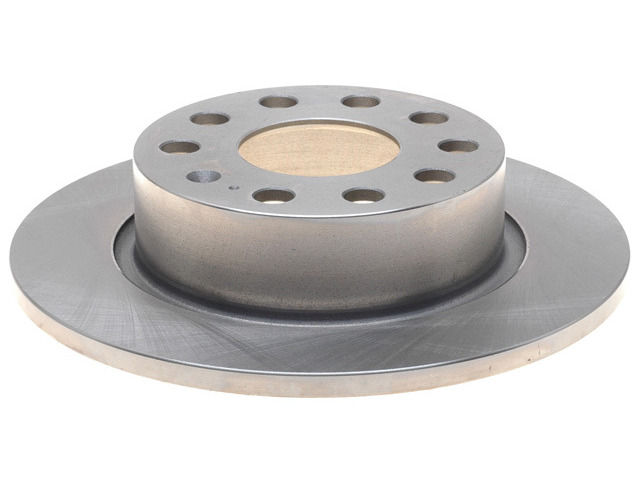

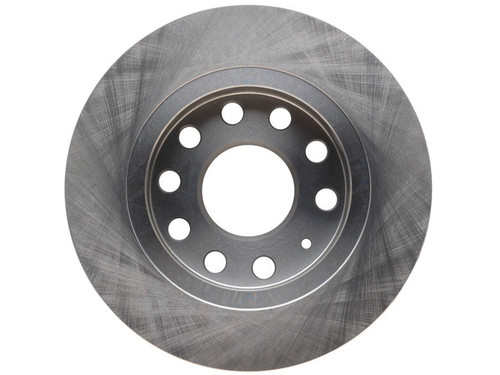

Engineered for everyday driving, the Raybestos R-Line Brake Rotor, part number 980874R, is a solid cast iron rear rotor developed for dependable, smooth braking. It fits many vehicles, among them the 2011-2018 Volkswagen Jetta, 2010-2016 Volkswagen Golf and 2017-2018 Volkswagen Golf SportWagen. See the Buyer's Guide tab for the full list.
- OE fit, form and function: developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE standard: R-Line rotors meet the SAE standard for tensile strength, supporting structural integrity.
- Low initial lateral runout and thickness variation: designed to help reduce pedal pulsation and brake noise and to extend pad life.
- Mill-balanced edges: each rotor is mill balanced and 100 percent validated. This helps minimize thickness variation for less vibration and smoother stops.
Specifications: outside diameter 9.957 in (252.9 mm); nominal thickness 0.394 in (10 mm); overall height 2.02 in (51.3 mm); center hole 2.56 in (65 mm); inside diameter 6.614 in (168 mm). It has 5 lug holes on a 4.409 in (112 mm) bolt circle, and each hole is 0.477 in (12.1 mm). It is a conventional rotor, not a drum-in-hat design, with a smooth, non-directional braking surface.
Signs a rotor may need replacing include a pulsating brake pedal, grinding or squealing, deep scoring, or wear at or below the 0.315 in (8 mm) discard thickness. This rotor is sold individually. The listed applications use two, and replacing both rear rotors together as a matched pair is recommended for even, balanced braking. An ABS tone ring is not included. Country of origin: China.
