Front Brake Rotor for 2004-2008 Ford F-150 & More - Raybestos 680181R

$121.99

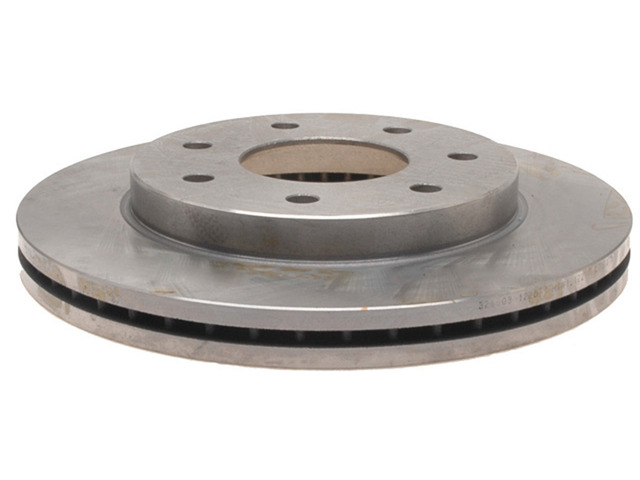

Raybestos Brakes Disc Brake Rotor 680181R

Raybestos Brakes Disc Brake Rotor 680181R - view 2

Raybestos Brakes Disc Brake Rotor 680181R - view 3

Part number: 680181R

UPC: 829352465455

Condition: New

Weight: 6.46 LBS

Item Package Quantity: 1

$121.99

Current Stock: 4

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor P/N:680181R

$121.99

Description

Raybestos 680181R front brake rotor for the 2004-2008 Ford F-150 and other vehicles is the vented disc the pads clamp to slow the wheel. Raybestos R-Line rotors are developed from OE samples for OE fit, form and function.

R-Line series, engineered for everyday driving conditions
Made with G3000-qualified material
Meets the SAE standard for tensile strength
Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
Mill balanced edges, 100 percent validated, to minimize thickness variation and vibration

Quick facts

Part: Raybestos 680181R brake rotor
Also called: disc brake rotor
Fits: 2004-2008 Ford F-150 and other vehicles
Position: Front
Condition: New

Pedal pulsation, brake noise or vibration when stopping can mean the brake rotor, also called a disc brake rotor, is worn. Pads, calipers and wheel parts show similar signs, so with the engine off and cool, look at the rotor face for grooves or cracks and measure its thickness against the discard figure below before replacing it. Front rotors are best replaced as a pair, and this listing is one rotor.

Fits

These are brake rotors for the 2004-2008 Ford F-150, and they also fit the 2004-2008 Ford Lobo and the 2006-2008 Lincoln Mark LT, with a quantity of two per vehicle.

Specifications

Fit and size

Position: Front
Quantity per vehicle: 2
Outside diameter: 329.95 mm (12.99 in)
Center hole diameter: 90.1 mm (3.547 in)
Bolt circle: 150 mm (5.906 in), 7 lug holes
Mounting bolt hole diameter: 15.3 mm (0.602 in)
Nominal thickness: 29.95 mm (1.18 in)
Discard thickness: 28.5 mm (1.122 in)
Overall height: 47.9 mm (1.885 in)

Build and materials

Type: Conventional, vented
ABS tone ring: not included
Condition: New
Country of origin: China

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Does the Raybestos 680181R front brake rotor fit a 2006-2008 Lincoln Mark LT?

Yes. Raybestos 680181R is a front brake rotor for the 2006-2008 Lincoln Mark LT, which takes two.

Are Raybestos rotors like the 680181R balanced?

Yes. This rotor has mill balanced edges and is 100 percent validated, which helps minimize thickness variation and leads to less vibration and smoother stopping.

Which driving is this Raybestos performance rotor made for?

Everyday driving. This R-Line rotor is engineered for everyday driving conditions, aiming at dependability, safety and performance.

Is 680181R one of the Raybestos brakes and rotors sets with pads?

No. Raybestos 680181R is one front brake rotor; brake pads are sold separately.

How thin can the 680181R rotor wear before it needs replacing?

Its discard thickness is 28.5 mm (1.122 in), against a nominal thickness of 29.95 mm (1.18 in). A rotor measuring at or below the discard figure needs replacing.
