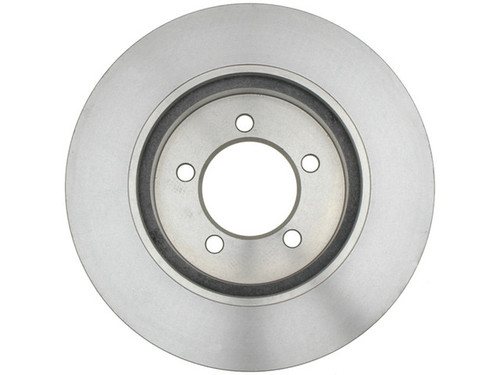

Raybestos Brakes Disc Brake Rotor P/N:680014

Quiet noise-prone braking and keep every stop smooth with the Raybestos Specialty Disc Brake Rotor 680014 — a direct-fit front rotor built for the 2002-2005 Ford Explorer [All] and 2002-2005 Mercury Mountaineer [All].

• Vehicle-specific cooling vanes: This vented rotor uses cooling vane configurations matched to OE designs for optimal cooling, reduced fade, and less noise.
• OE fit, form and function: The vehicle-specific design is made to match OE fit, form, and function for strength and performance.
• Rust-protective coating: Fully coated against the elements — either Grey Fusion 4.0® rated at 300 hours salt spray or a Black Fusion painted hat and edge.
• Turned finish: A turned finish gives the pads a smooth surface to engage right out of the box.

Made from cast iron following SAE standards for tensile strength, hardness, and iron grade, this conventional vented rotor measures 12.02 in (305.3 mm) outside diameter with a 3.23 in center hole, five mounting bolt holes on a 4.5 in (114.3 mm) bolt circle, and a non-directional braking surface. Nominal thickness is 1.025 in (26.05 mm) with a machine-to discard thickness of 0.965 in (24.5 mm). No ABS tone ring is included. Sold individually — replacing both front rotors as a matched pair is recommended for even, balanced braking. If worn or warped rotors are the cause of pulsation or noise, this replaces the original. Manufacturer part number 680014. Country of origin: China.
