Front Brake Rotor for 2011-2021 Jeep Grand Cherokee & More - Raybestos 780870R

$76.99

Raybestos Brakes Disc Brake Rotor 780870R

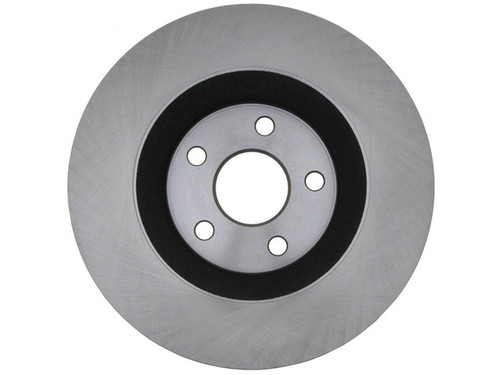

Raybestos Brakes Disc Brake Rotor 780870R - view 2

Raybestos Brakes Disc Brake Rotor 780870R - view 3

Part number: 780870R

UPC: 829352847152

Condition: New

Weight: 7.38 LBS

Item Package Quantity: 1

$76.99

Current Stock: 14

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor P/N:780870R

$76.99

Description

Raybestos Brakes 780870R front brake rotor for the 2011-2021 Jeep Grand Cherokee and other vehicles gives the front pads a smooth surface to clamp and slow the wheel. It is developed from OE samples and made with G3000-qualified material for OE fit, form and function.

Raybestos R-Line series, engineered for everyday driving conditions
Meets the SAE standard for tensile strength
Low initial lateral runout and thickness variation for less pedal pulsation, less brake noise and longer pad life
Mill balanced edges, 100 percent validated, to minimize thickness variation and vibration
Vented cast iron body with a smooth, non-directional braking surface

Quick facts

Part: Raybestos Brakes 780870R brake rotor
Also called: disc brake rotor
Fits: 2011-2021 Jeep Grand Cherokee and other vehicles
Position: Front
Material: Cast Iron
Condition: New

A worn rotor can show up as a pulsing brake pedal, vibration or noise under braking, or visible grooves. Before you replace the rotor, rule out a sticking caliper or worn pads, which can also bring on brake noise or vibration.

Fits

It is a brake rotor for the 2011-2025 Dodge Durango, the 2011-2021 Jeep Grand Cherokee and the 2022 Jeep Grand Cherokee WK, and the front axle of each takes two. This listing is one rotor; the other side of that axle is normally replaced at the same time.

Specifications

Fit and size

Position: Front
Quantity per vehicle: 2
Outside diameter: 350 mm (13.78 in)
Inside diameter: 223 mm (8.78 in)
Center hole diameter: 72.15 mm (2.84 in)
Bolt circle: 127 mm (5 in), 5 lug holes
Mounting bolt hole diameter: 16.95 mm (0.667 in)
Overall height: 54.6 mm (2.15 in)
Nominal thickness: 32 mm (1.26 in)
Discard thickness: 30.5 mm (1.201 in)

Build and materials

Type: vented, conventional
Surface: smooth, non-directional
Material: cast iron
ABS tone ring: not included
Condition: new
Country of origin: China

Product information is for general reference and may contain errors. See our Disclaimer.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Are these 2011-2021 Jeep Grand Cherokee rotors the front ones?

Yes. Raybestos Brakes 780870R is a front rotor for the 2011-2021 Jeep Grand Cherokee, 350 mm across with 5 lug holes on a 127 mm bolt circle.

Is the Raybestos Brakes 780870R vented or solid?

It is vented, with a smooth, non-directional surface. It is a conventional rotor, not a drum-in-hat type.

At what thickness does this front rotor need replacing?

Nominal thickness is 32 mm (1.26 in) and the discard thickness is 30.5 mm (1.201 in). Replace Raybestos Brakes 780870R once it measures at the discard thickness or thinner.

What does a worn front rotor feel like when braking?

A pulsing pedal, vibration or noise under braking, or visible grooves in the surface can mean the rotor is worn. A shop can confirm the cause.

Does the Raybestos Brakes 780870R disc brake rotor include an ABS tone ring?

No. The ABS tone ring is not included with this rotor.
