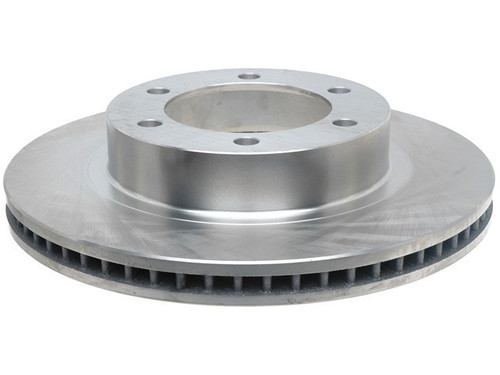

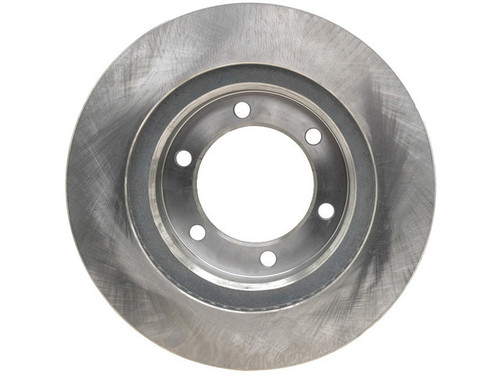

Raybestos Brakes Disc Brake Rotor P/N:681953
The Raybestos Brakes 980161R front brake rotor for the 2005-2007 Toyota Tacoma and other vehicles is the part the front brake pads clamp against to slow and stop each wheel.
A pulsing pedal, a shaking steering wheel when braking or deep grooves seen during a brake service can mean the rotor is worn, though a sticking caliper or loose wheel bearing can do the same. Find the cause before you replace it. This listing is one disc brake rotor. The front axle takes two, one on each side, and both are normally replaced at the same time.
It is also a direct-fit front brake rotor for the 2003-2007 Toyota 4Runner and the 2007 Toyota FJ Cruiser.
Fit and size
Build and materials
One front brake rotor. Bearings are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
Are these front rotors right for the 2005-2007 Toyota Tacoma?
Yes. The Raybestos Brakes 980161R is a direct-fit front brake disc for the 2005-2007 Toyota Tacoma.
Will the 980161R work as a front brake rotor on a 2003-2007 Toyota 4Runner?
Yes. The Raybestos Brakes 980161R fits the front axle of the 2003-2007 Toyota 4Runner, and it also fits the 2007 Toyota FJ Cruiser.
What size and bolt pattern does this Raybestos R-Line rotor have?
This front rotor measures 318.8 mm (12.6 in) across, with 6 lug holes on a 139.7 mm (5.5 in) bolt circle and a 108.2 mm (4.3 in) center hole.
Does this vented front rotor come with an ABS tone ring or bearings?
No. This listing is the front brake rotor alone; the ABS tone ring and the bearings are not included.
At what thickness should this 28.0 mm cast iron rotor be replaced?
This front rotor starts at a nominal 28.0 mm (1.1 in) and should be replaced once it wears to its 26.0 mm (1.0 in) discard thickness.
No reviews yet — be the first to review this product.
