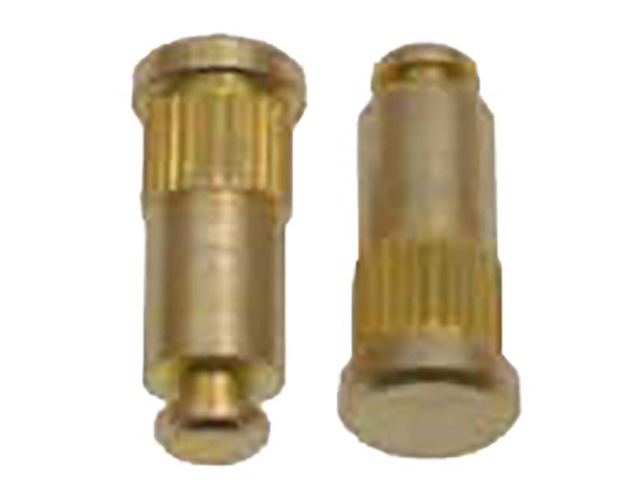

Keep every drum brake shoe seated firmly and rattle-free with the Raybestos R-Line Drum Brake Shoe Spring Hold Down Pin (H1104). It drops in as a direct-fit replacement across a wide range of front and rear drum brake applications, including the 1960-1964 Chevrolet Corvair, 1985-1991 Dodge/Plymouth Colt, 2000-2002 Nissan Frontier, 1984-2002 Toyota Corolla and 1986-2002 Toyota 4Runner — see the Buyer's Guide tab for the full list of 40+ vehicles.
The pin passes through the backing plate and, together with the hold-down spring and retaining cup, holds the brake shoe against the plate while still allowing it to pivot during braking.
- Secures the shoe: anchors the brake shoe to the backing plate and works with the hold-down spring to resist rattle and movement.
- Quantity varies by application: some listed vehicles use one pin, others use two — sold individually, so order the count your vehicle requires.
- Front or rear drum brakes: cataloged for front and rear drum brake positions on the listed applications.
- Country of origin: United States.
Signs the hold-down hardware may need replacing include a rattling or knocking noise from the drum and a shoe that has shifted or come loose. If worn or corroded hold-down hardware is the cause, replacing the pin restores proper shoe retention. Replacing brake hardware whenever you service the shoes is good practice.
Interchange: 8-6204 · 86204 · H1104DP · 101-1104 · 1011104 · H1104-2 · H11042 · AB3A · 271104 · 075-043 · 075043 · HW1104 · HW1104-10 · HW110410 · 5459858 · 5459888 · 1104 · HX1104 · BP1104 · BP9 · 4744720010 · F34966 · Manufacturer part number H1104.
This part cross-references / interchanges with the following part numbers:
8-6204, H1104, H1104DP, 101-1104, H1104-2, AB3A, 271104, 075-043, HW1104, HW1104-10, 5459858, 5459888, 1104, HX1104, BP1104, BP9, 4744720010, F34966
