Front Left CV Axle for 1999-2002 Mercury Cougar & More - CARDONE New 66-2059

$116.99

Vehicles this part fits

    Part number: 66-2059
    UPC: 082617773232
    Condition: New
    Weight: 17.50 LBS
    Item Package Quantity: 1
    $116.99
    Adding to cart… The item has been added

    Have questions?

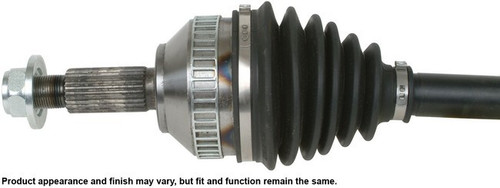

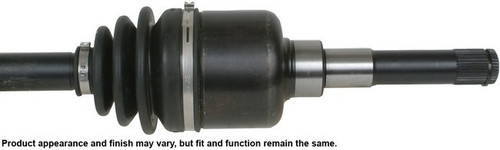

    CARDONE New CV Axle Assembly P/N:66-2059
    CARDONE New CV Axle Assembly P/N:66-2059
    $116.99
    $116.99

    CARDONE New 66-2059 front left CV axle for the 1999-2002 Mercury Cougar and other vehicles carries drive torque from the transmission to the front left wheel. This new CV axle assembly comes with its CV joints.

    • Neoprene boots with extra bellows where needed to resist bellow stress and cracking, the leading cause of boot failure
    • Shaft individually verified for straightness for vibration-free performance at all speeds
    • Axle measurements validated after assembly
    • Boot clamps pneumatically crimped to seal the boot against the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for the mating hub, transmission and axle nut

    Quick facts

    • Part: CARDONE New 66-2059 CV axle
    • Also called: CV axle assembly
    • Fits: 1999-2002 Mercury Cougar and other vehicles
    • Position: Front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking when you turn under power, grease on the chassis or suspension, or vibration on acceleration can mean the axle is worn, though a broken engine mount or a worn hub bearing can be behind some of them. Consider replacing both front axles together; this listing is one axle.

    Fits

    The 1999-2002 Mercury Cougar, the 1995-2000 Ford Contour and the 1995-2000 Ford Mystique are among the vehicles it fits. Each takes one on the front left side, and the front right axle is a separate part. If your car is not named here, look it up in the "Vehicles it fits" section. The axle is engineered to OE form, fit and function.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per vehicle: 1 (front left)
    • Shaft diameter: 27 mm (1.063 in)
    • Compressed length: 663.58 mm (26.125 in)
    • Splines: 35 inboard, 27 outboard
    • Axle nut: hex, M22x1.5 thread, 15 mm (0.591 in) long, 32 mm (1.26 in) socket

    Build and materials

    • Condition: New
    • Shaft material: Steel
    • Boot material: Neoprene
    • CV joints: included
    • ABS tone ring: included, window type, 44 teeth
    • Country of origin: China

    In the box

    One complete front left CV axle and one instruction sheet.

    Installation notes

    • A new axle retaining nut is supplied, since the original is likely worn or stripped. A locking-style (prevailing torque) nut is never reused.
    • Remove and install one axle at a time.
    • Never let the axle hang unsupported, which can lead to axle separation and damage to the inner joint.
    • Always install new transaxle seals to avoid leaking.

    Interchange: F5RZ3V427EARM · F5RZ3V427FARM · F8RZ3B437DD

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    F5RZ3V427EARM, F5RZ3V427FARM, F8RZ3B437DD

    Frequently Asked Questions

    Is the CARDONE 66-2059 CV axle right for a 1995-2000 Ford Contour?

    Yes. This CARDONE New 66-2059 is a front left CV axle for the 1995-2000 Ford Contour, and the front right side is a separate part. Look up other cars in the "Vehicles it fits" section.

    Does this CV axle come with a new axle nut?

    Yes. A new hex axle nut with an M22x1.5 thread comes with the axle, along with an instruction sheet.

    What shaft diameter and spline counts does the 66-2059 axle have?

    This CARDONE 66-2059 has a 27 mm (1.063 in) shaft, with 35 splines on the inboard end and 27 splines on the outboard end.

    Why did my ABS light come on after I installed a new CV axle?

    A sensor ring, sensor or sensor wiring near the axle may have been damaged during installation, sending the ABS module an erratic speed signal. This axle includes a 44-tooth window-type ABS tone ring.

    Can I use an impact wrench to tighten the axle nut?

    No. Use a torque wrench and tighten the nut on this front left CV axle to the manufacturer's specification, never an impact wrench.
