Front Left CV Axle for 1990-1994 Plymouth Laser & More - CARDONE New 66-3092

$118.99
Sold out

Vehicles this part fits

    Part number: 66-3092
    UPC: 082617632928
    Condition: New
    Weight: 19.00 LBS
    Item Package Quantity: 1
    $118.99

    Out of stock

    Have questions?

    CARDONE New CV Axle Assembly P/N:66-3092
    CARDONE New CV Axle Assembly P/N:66-3092
    $118.99
    $118.99

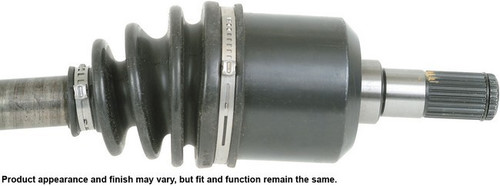

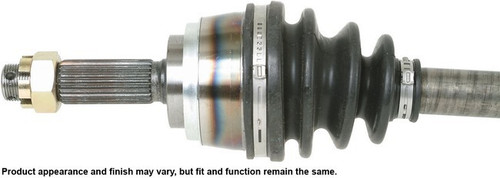

    CARDONE New 66-3092 front left CV axle for the 1990-1994 Plymouth Laser and other vehicles carries drive torque from the transmission to the wheel. This CV axle assembly includes its CV joints, which let the wheel turn and move with the suspension.

    • Neoprene boots with additional bellows, when needed, to resist bellow stress and cracking
    • Every shaft individually verified for straightness for vibration-free performance at all speeds
    • Axle measurements validated after assembly
    • Boot clamps pneumatically crimped to seal the boot to the housing
    • Grease that withstands high-temperature and high-torque demands
    • Precision-rolled splines and threads for the mating hub, transmission and axle nut

    Quick facts

    • Part: CARDONE New 66-3092 CV axle
    • Also called: CV axle assembly
    • Fits: 1990-1994 Plymouth Laser and other vehicles
    • Position: Front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    Clicking or snapping when you turn hard under power, a thump or vibration when accelerating, or grease around a torn boot can come from a worn joint or a ruptured boot. These signs alone do not prove the axle is the problem, since a worn wheel bearing can make a similar noise.

    Fits

    It is listed for a wide range of Plymouth, Eagle and Mitsubishi models, including the 1990-1994 Plymouth Laser, the 1990-1994 Eagle Talon and the 1990-1994 Mitsubishi Eclipse. This listing is one axle for the front left. A 1990-1994 Plymouth Laser takes one on this side; the front right is a separate part, and that side is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: front left
    • Quantity per application: 1
    • Shaft diameter: 27 mm (1.063 in)
    • Compressed length: 947.74 mm (37.312 in)
    • Inboard joint: splined, 25 splines
    • Outboard joint: splined, 25 splines
    • Axle nut thread size: M22x1.5
    • Axle nut socket size: 32 mm (1.26 in)
    • Axle nut length: 21.5 mm (0.846 in)

    Build and materials

    • Shaft material: steel
    • Boot material: neoprene, 3 ribs
    • CV joints: included
    • Axle nut: hex, included
    • ABS tone ring: not included
    • Condition: new
    • Country of origin: China

    In the box

    One complete CV axle, one new axle retaining nut and an instruction sheet.

    Installation notes

    • Remove and install one axle at a time; removing both at once can lose transaxle gear alignment.
    • Tighten the retaining nut with a torque wrench to the manufacturer's specification, never with an impact wrench.
    • Install new transaxle seals when replacing the axle.
    • Do not let the axle hang unsupported, which can separate it and damage the inner joint.

    Interchange: MB297871 · MB297987 · MB297991 · MB526101 · MB620611

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    MB297871, MB297987, MB297991, MB526101, MB620611

    Frequently Asked Questions

    Is the CARDONE 66-3092 a 1990-1994 Mitsubishi Eclipse CV axle for the front left side?

    Yes, CARDONE 66-3092 is listed for the front left of the 1990-1994 Mitsubishi Eclipse, 1990-1994 Plymouth Laser and 1990-1994 Eagle Talon; if your car is not named here, look it up in the "Vehicles it fits" section.

    Does the CARDONE 66-3092 come with a new axle nut?

    Yes. CARDONE 66-3092 includes a new hex axle retaining nut and an instruction sheet. The ABS tone ring is not included.

    What thread size is the axle nut on this front left CV axle?

    The axle nut thread size is M22x1.5, with a 32 mm (1.26 in) socket size. The shaft diameter is 27 mm (1.063 in).

    Why does a CV axle click or snap when turning hard under power?

    A worn outer CV joint can click or snap in a hard turn under power. A torn boot that lets grease out and dirt in can lead to that wear, and a shop can confirm which it is.

    What should I do with the old locking nut when installing this CV axle?

    Discard it and install the new axle retaining nut that comes with this axle, since a prevailing torque lock nut is a one-time-use part.
