Front Left CV Axle for 1994-1997 Toyota Celica - A1 CARDONE 66-5098

$147.99

Vehicles this part fits

    Part number: 66-5098
    UPC: 082617691277
    Condition: New
    Weight: 15.00 LBS
    Item Package Quantity: 1
    $147.99
    Adding to cart… The item has been added

    Have questions?

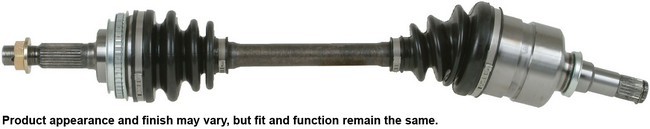

    CARDONE New CV Axle Assembly P/N:66-5098
    CARDONE New CV Axle Assembly P/N:66-5098
    $147.99
    $147.99

    A1 CARDONE 66-5098 front left CV axle for the 1994-1997 Toyota Celica sends drive torque from the transaxle to the wheel hub. The design targets the reasons original CV axles typically fail, starting with boot cracking.

    • Neoprene boots with added bellows where needed to resist bellow stress and ozone cracking, the leading cause of boot failure
    • Each shaft is individually verified for straightness for vibration-free performance at all speeds
    • Boot clamps are pneumatically crimped to seal the boot to the housing
    • Grease made to withstand high-temperature and high-torque demands
    • Splines and threads are precision rolled to fit the mating hub, transmission and axle nut
    • Transmission seal diameter is precision-machined after heat treatment for correct surface finish and seal life

    Quick facts

    • Part: A1 CARDONE 66-5098 CV axle
    • Also called: CV axle assembly
    • Fits: 1994-1997 Toyota Celica
    • Position: Front left
    • Material: Steel shaft, neoprene boots
    • Condition: New

    A torn boot with grease thrown onto the chassis, clicking when you turn hard, and a thump under acceleration can mean a worn axle. A broken engine mount, a worn hub bearing or a damaged wheel speed sensor can also be behind some of these signs, so find the cause before buying.

    Fits

    This CV axle assembly is a direct-fit replacement for the 1994-1997 Toyota Celica, built to O.E. form, fit and function. The front axle takes one on each side, so this listing is the front left only; the front right is a separate part, normally done at the same time.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per application: 1
    • Compressed length: 24.625 in (625.48 mm)
    • Shaft diameter: 25 mm (0.984 in)
    • Inboard joint: splined, 23 splines
    • Outboard joint: splined, 26 splines
    • Axle nut: hex, M22x1.5 thread, 30 mm socket size, 15 mm long

    Build and materials

    • Shaft material: steel
    • Boot: neoprene, 4 ribs
    • ABS tone ring: included, toothed, 48 teeth
    • CV joints: included; no dynamic damper attached
    • Condition: New
    • Country of origin: China

    In the box

    One complete CV axle with a new hex axle nut and an instruction sheet.

    Installation notes

    • Remove and install one axle at a time.
    • Install new transaxle seals when replacing the axle.
    • Never let the axle hang unsupported, which can separate it and damage the inner joint.
    • Use a press-type tool on a stuck stub shaft and never strike it with a hammer.

    Interchange: 4342020401 · 4342020481

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    4342020401, 4342020481

    Frequently Asked Questions

    Is the A1 CARDONE 66-5098 a CV axle replacement for the 1994-1997 Toyota Celica?

    Yes. A1 CARDONE 66-5098 is the front left CV axle for the 1994-1997 Toyota Celica; the front right side is a separate part.

    Does this A1 CARDONE cv drive axle come with a new axle nut?

    Yes. A new M22x1.5 hex axle nut comes with the complete axle, along with an instruction sheet.

    Do A1 CARDONE axles like this one come with the ABS tone ring?

    Yes. The A1 CARDONE 66-5098 includes a toothed ABS tone ring with 48 teeth.

    Why do I see grease on my suspension and hear clicking on turns with a worn CV axle?

    A torn outer boot can let grease out and dirt and water in, and a worn outer joint can click on turns. A shop can confirm which; have it looked at promptly.

    What should I do with the old locking nut when fitting this CV axle?

    Discard the old prevailing torque lock nut and fit the new nut supplied. Tighten it with a torque wrench to the manufacturer's specification, never an impact wrench.
